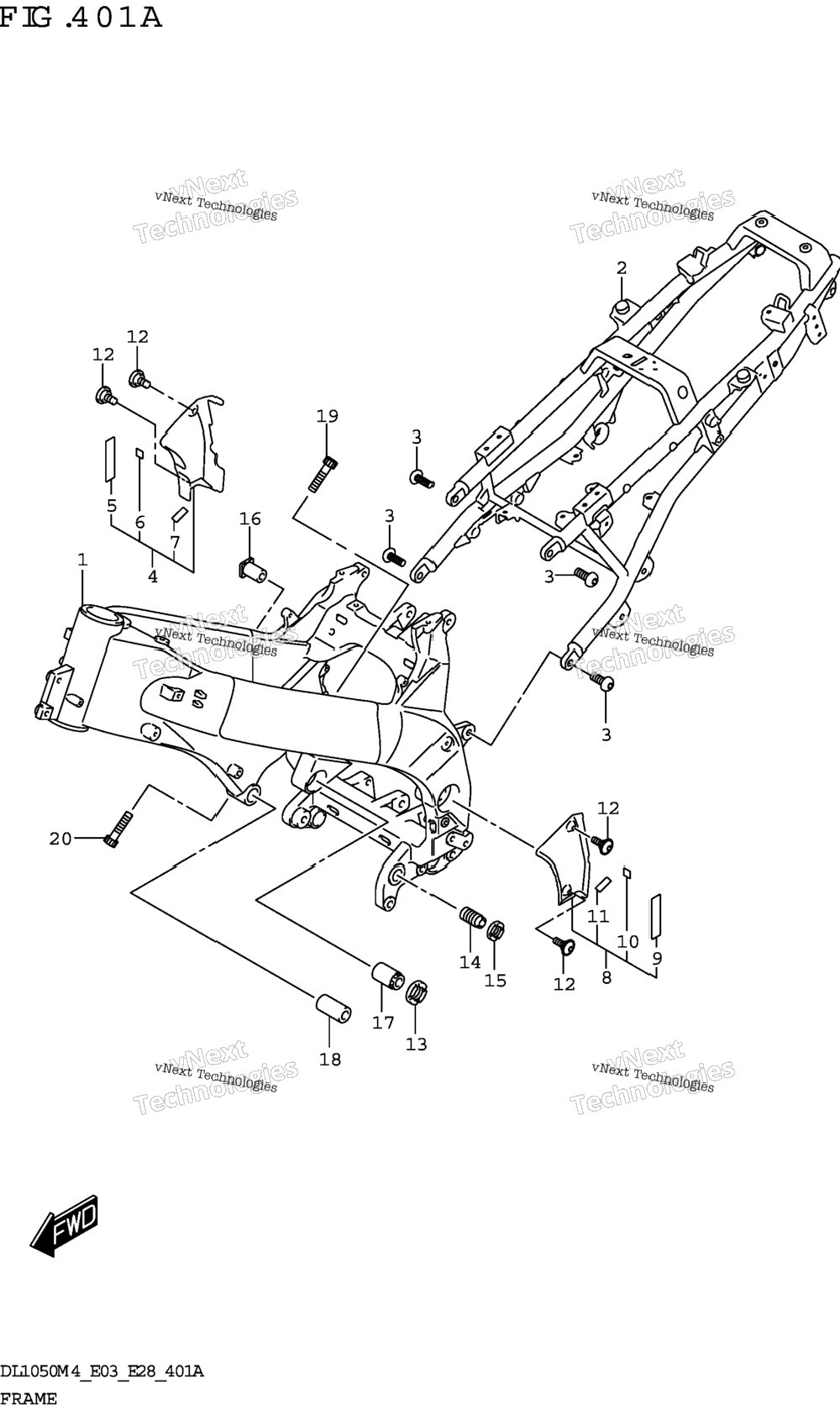

| 1 | 41100-31J30-YAP | FRAME (BLACK) | 1 шт. | — | |
|
| 2 | 41200-31J40-YAP | RAIL,SEAT (BLACK) | 1 шт. | — | |
|
| 3 | 09139-10006 | BOLT,SEAT RAIL | 4 шт. | — | |
|
| 4 | 43580-31J00 | COVER,PIVOT RH | 1 шт. | — | |
|
| 8 | 43590-31J00 | COVER,PIVOT LH | 1 шт. | — | |
|
| 9 | 33652-38A10 | .PROTECTOR (20X90X2.0) | 1 шт. | — | |
|
| 9 | 33652-38A10 | .PROTECTOR (20X90X2.0) | 1 шт. | — | |
|
| 10 | 63115-37H00 | .CUSHION (10X10X1) | 1 шт. | — | |
|
| 10 | 63115-37H00 | .CUSHION (10X10X1) | 1 шт. | — | |
|
| 11 | 94429-21E00 | .CUSHION,PIVOT COVER NO.2 (10 30X2) | 1 шт. | — | |
|
| 11 | 94429-21E00 | .CUSHION,PIVOT COVER NO.2 (10 30X2) | 1 шт. | — | |
|
| 12 | 09139-05092 | SCREW (5X13) | 4 шт. | — | |
|
| 13 | 41922-19F20 | NUT,CRANK CASE ADJUST CTR | 1 шт. | — | |
|
| 14 | 41921-16G10 | BOLT,CRANK CASE ADJUST LWR | 1 шт. | — | |
|
| 15 | 41922-33E20 | NUT,CRANK CASE ADJUST LWR | 1 шт. | — | |
|
| 16 | 41921-47H00 | BOLT,CRANK CASE ADJUST | 1 шт. | — | |
|
| 17 | 41941-19F01 | SPACER,MOUNTING REAR UPPER RH | 1 шт. | — | |
|
| 18 | 41942-02F00 | SPACER,ENG HEAD MTG,RR LH | 1 шт. | — | |
|
| 20 | 07130-0840B | BOLT | 1 шт. | — | |
|
| 20 | 07130-0840B | BOLT | 1 шт. | — | |
|
