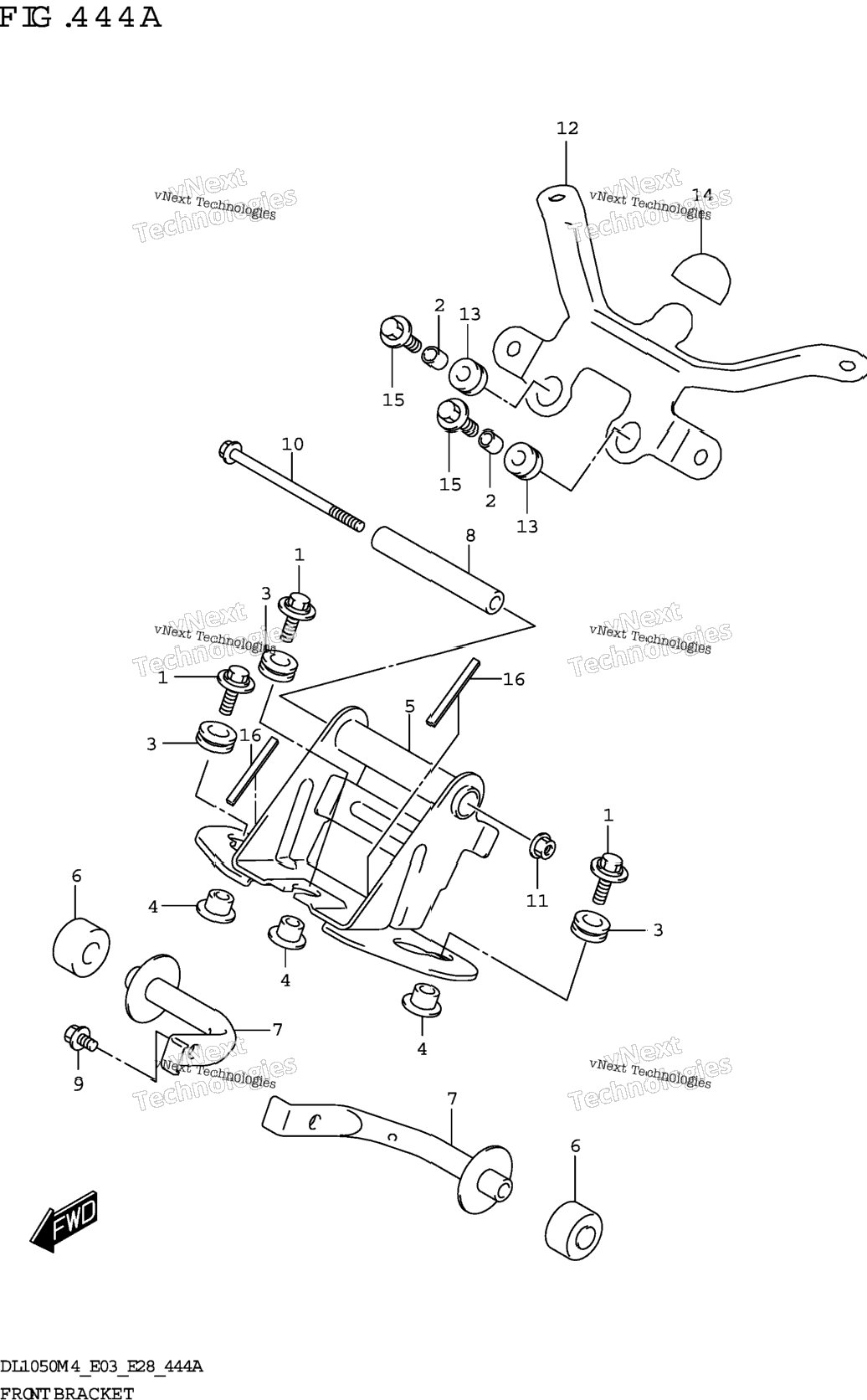

| 1 | 09118-06112 | BOLT (6X30) | 3 шт. | — | |
|
| 2 | 09180-06264 | SPACER (6.5X9X10.5) | 2 шт. | — | |
|
| 3 | 44511-16G01 | CUSHION,FUEL TANK FRONT | 3 шт. | — | |
|
| 4 | 44512-16G00 | SPACER,FUEL TANK,FR | 3 шт. | — | |
|
| 5 | 44520-31J01 | BRACKET,FUEL TANK FRONT | 1 шт. | — | |
|
| 6 | 44543-31J01 | CUSHION,FRONT SIDE BRKT | 2 шт. | — | |
|
| 7 | 44560-31J00 | BRACKET,FRONT SIDE | 2 шт. | — | |
|
| 8 | 44561-35F00 | SPACER,FUEL TANK REAR | 1 шт. | — | |
|
| 9 | 01550-0816A | BOLT | 1 шт. | — | |
|
| 10 | 01550-0695A | BOLT | 0 шт. | — | |
|
| 11 | 08319-3106A | NUT | 1 шт. | — | |
|
| 12 | 44160-06L00 | BRACKET,FRONT COVER | 1 шт. | — | |
|
| 13 | 44164-31J01 | CUSHION,FUEL TANK COVER BRKT | 2 шт. | — | |
|
| 14 | 44542-06L00 | CUSHION,FR COVER BRKT | 1 шт. | — | |
|
| 15 | 09116-06009 | BOLT (6X20) | 2 шт. | — | |
|
| 16 | 13623-48B00 | MOLDING (L:48) | 2 шт. | — | |
|
