Front Wheel (Dl1050rr)

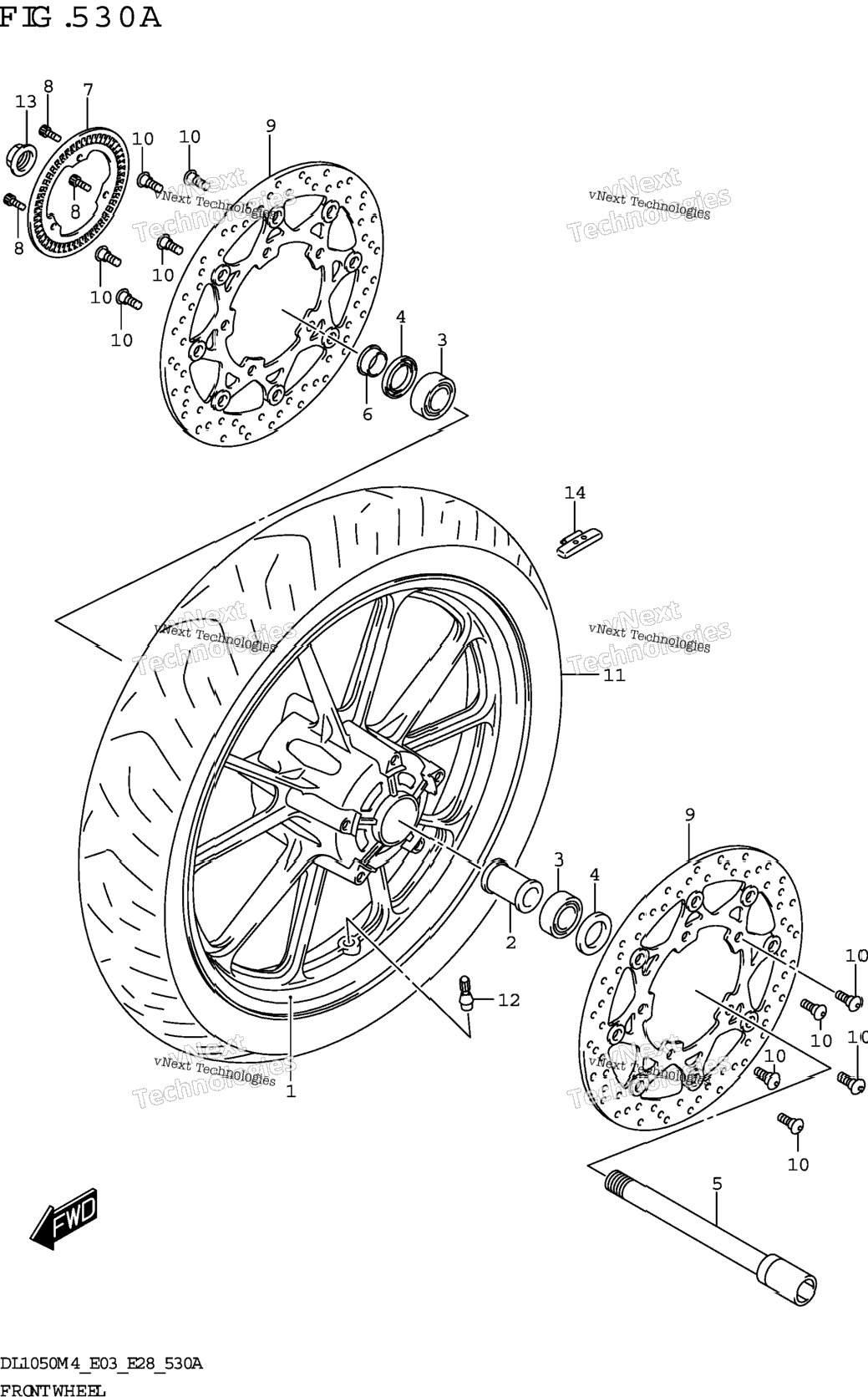

Схема Front Wheel (Dl1050rr)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1-1 | 54111-31J01-019 | WHEEL,FR (BLACK) BODY COLOR:CGH | 1 шт. | — | |
| 1-2 | 54111-31J01-YLY | WHEEL,FR (BLUE) BODY COLOR:CGJ,A3X,CQX | 1 шт. | — | |
| 2 | 54731-33E20 | SPACER,FR HUB BEARING | 1 шт. | — | |
| 3 | 09262-25191 | BEARING (25X52X15) | 2 шт. | — | |
| 4 | 09285-32004 | .SEAL,OIL (32X52X7) | 2 шт. | — | |
| 5 | 54711-31J00 | AXLE,FR | 1 шт. | — | |
| 6 | 54751-41G10 | SPACER,FR AXLE,R | 1 шт. | — | |
| 7 | 54162-27G10 | RING,SPEED SENSOR FR | 1 шт. | — | |
| 8 | 07130-0512A | BOLT | 3 шт. | — | |
| 9 | 59210-31J10 | DISC,FRONT BRAKE | 2 шт. | — | |
| 10 | 09106-08208 | BOLT,DISC | 10 шт. | — | |
| 11 | 55110-06L01 | TIRE,FRONT | 1 шт. | — | |
| 12 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
| 13 | 54712-47H00 | NUT,FR AXLE | 1 шт. | — | |
| 14-1 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
| 14-2 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
| 14-3 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
