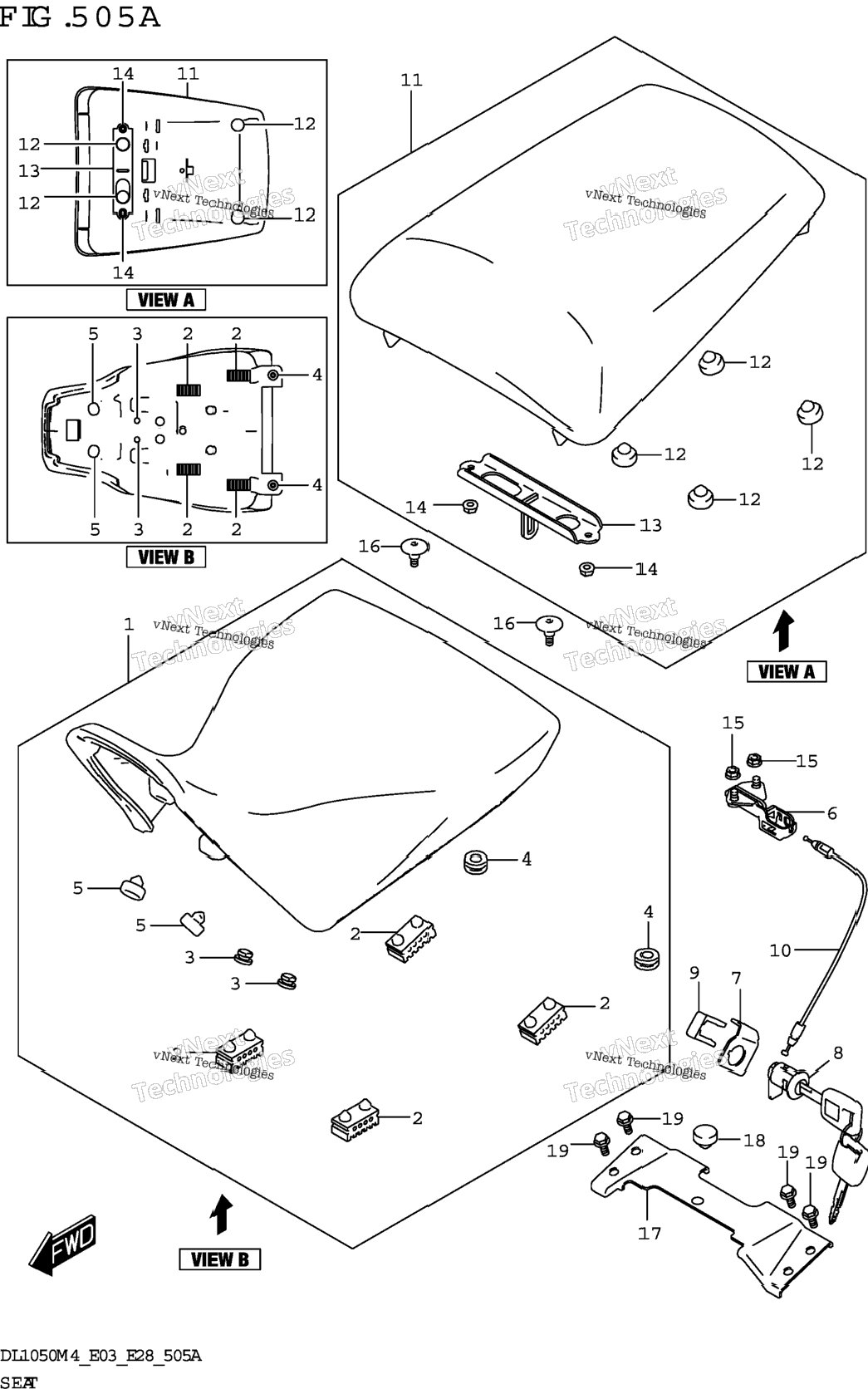

| 1 | 45100-06L20-CGL | SEAT ASSY BODY COLOR:CD8,JWN | 1 шт. | — | |
|
| 2 | 45100-06L20-B03 | SEAT ASSY (GRAY,BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 3 | 45149-31300 | .CUSHION,SEAT (40X20X15) | 4 шт. | — | |
|
| 4 | 45148-27J00 | CUSHION,SEAT MOUNT | 2 шт. | — | |
|
| 5 | 09320-09501 | CUSHION (9X18X10) | 2 шт. | — | |
|
| 6 | 09321-10012 | .CUSHION | 2 шт. | — | |
|
| 7 | 45220-04K20 | BRACKET,STRIKER SUPPORT | 1 шт. | — | |
|
| 8 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 9 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 10 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 11 | 45280-06L00 | CABLE,SEAT LOCK | 1 шт. | — | |
|
| 12 | 45300-06L00-CGL | SEAT ASSY,PILLION | 1 шт. | — | |
|
| 13 | 45300-06L00-B03 | SEAT ASSY,PILLION (GRAY,BLACK | 1 шт. | — | |
|
| 14 | 09321-10012 | .CUSHION | 4 шт. | — | |
|
| 15 | 45290-17K00 | .STRIKER,SEAT LOCK | 1 шт. | — | |
|
| 16 | 08316-1006A | NUT (6X12) | 2 шт. | — | |
|
| 17 | 08316-1006A | NUT (6X12) | 2 шт. | — | |
|
| 18 | 09139-06206 | SCREW (6X20) | 2 шт. | — | |
|
| 19 | 45121-06L10 | BRIDGE,SEAT | 1 шт. | — | |
|
| 20 | 09321-10012 | .CUSHION | 1 шт. | — | |
|
| 21 | 01550-0616A | BOLT | 4 шт. | — | |
|
