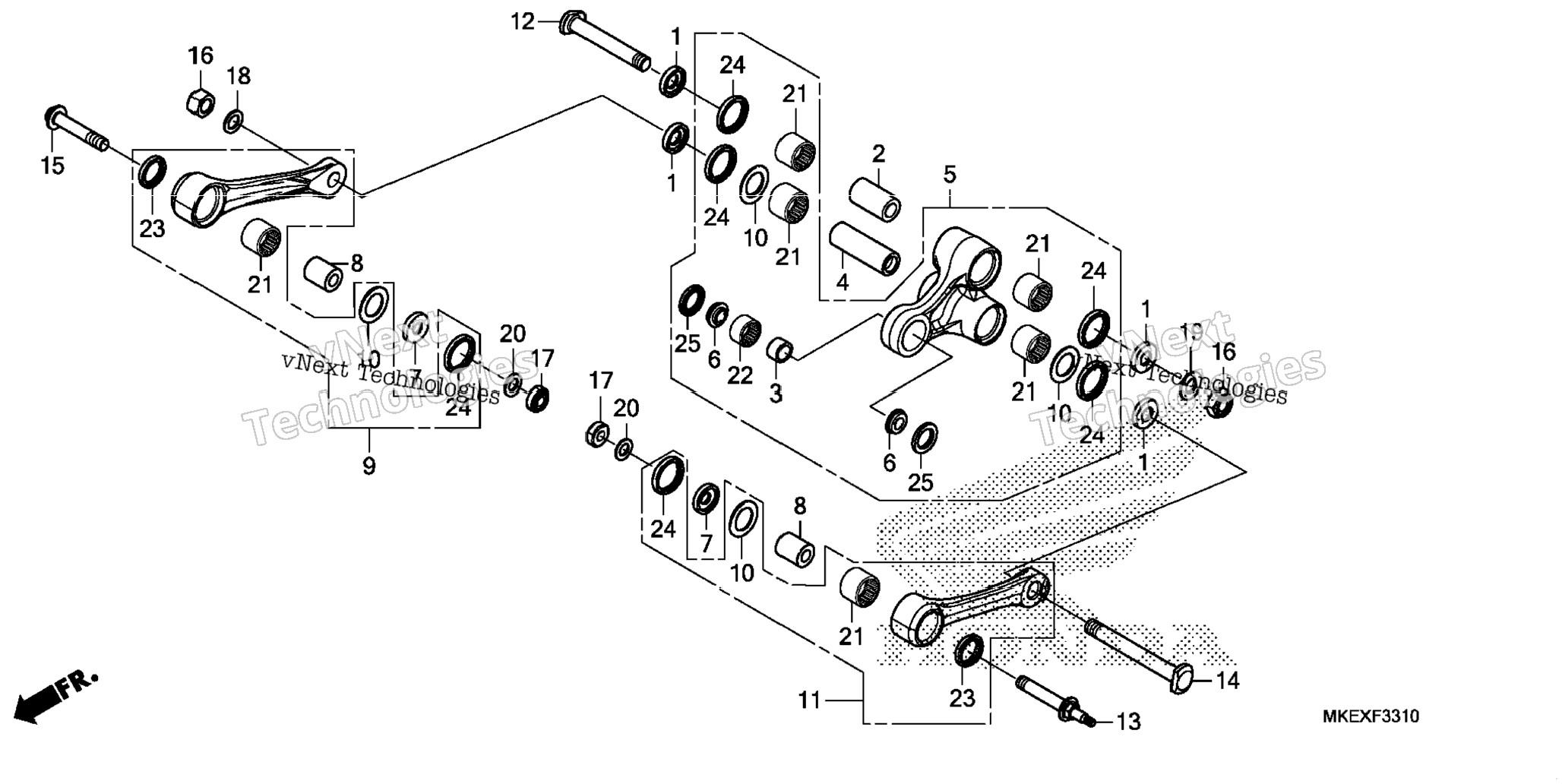

| 1 | 52462-MKE-A60 | COLLAR, LINK SIDE | 4 шт. | — | |
|
| 2 | 52463-KZ4-J40 | COLLAR C, CUSHION ARM | 1 шт. | — | |
|
| 3 | 52464-KRN-710 | COLLAR D, CUSHION ARM | 1 шт. | — | |
|
| 4 | 52464-MKE-A00 | COLLAR B, CUSHION | 1 шт. | — | |
|
| 5 | 52465-MKE-A50 | ARM SUB-ASSY., CUSHION | 1 шт. | — | |
|
| 6 | 52466-KRN-710 | COLLAR D, CUSHION ARM SIDE | 2 шт. | — | |
|
| 7 | 52472-MKE-A60 | COLLAR, CONNECTING ROD SIDE | 2 шт. | — | |
|
| 8 | 52473-MKE-A00 | COLLAR A, CONNECTING ROD | 2 шт. | — | |
|
| 9 | 52475-MKE-A50 | ROD SUB-ASSY., R. CUSHION CONNECTING | 1 шт. | — | |
|
| 10 | 52476-KZ4-J20 | WASHER, THRUST | 4 шт. | — | |
|
| 11 | 52485-MKE-A50 | ROD SUB-ASSY., L. CUSHION CONNECTING | 1 шт. | — | |
|
| 12 | 90130-MEN-840 | BOLT, LINK (12X82) | 1 шт. | — | |
|
| 13 | 90131-MKE-A00 | BOLT, LINK A (10X54.5) (L) | 1 шт. | — | |
|
| 14 | 90132-MKE-A00 | BOLT, LINK B (12X103.5) | 1 шт. | — | |
|
| 15 | 90133-MKE-A00 | BOLT, LINK A (10X54.5) (R) | 1 шт. | — | |
|
| 16 | 90305-KRN-A30 | NUT, U (12MM) | 2 шт. | — | |
|
| 17 | 90306-KZ4-711 | NUT, U (10MM) | 2 шт. | — | |
|
| 18 | 90501-KRN-710 | WASHER, PLAIN (12MM) | 1 шт. | — | |
|
| 19 | 90501-KZ4-J40 | WASHER, PLAIN (12MM) | 1 шт. | — | |
|
| 20 | 90502-MKE-A00 | WASHER (10MM) | 2 шт. | — | |
|
| 21 | 91051-KSC-003 | BEARING, NEEDLE (20X26X15) | 6 шт. | — | |
|
| 22 | 91074-KRN-711 | BEARING, NEEDLE (19X26X13) | 1 шт. | — | |
|
| 23 | 91254-MKE-A01 | DUST SEAL (20X27X4) | 2 шт. | — | |
|
| 24 | 91262-KZ3-731 | DUST SEAL (25X32X4) | 6 шт. | — | |
|
| 25 | 91351-KRN-711 | DUST SEAL (17.5X26X3) | 2 шт. | — | |
|
