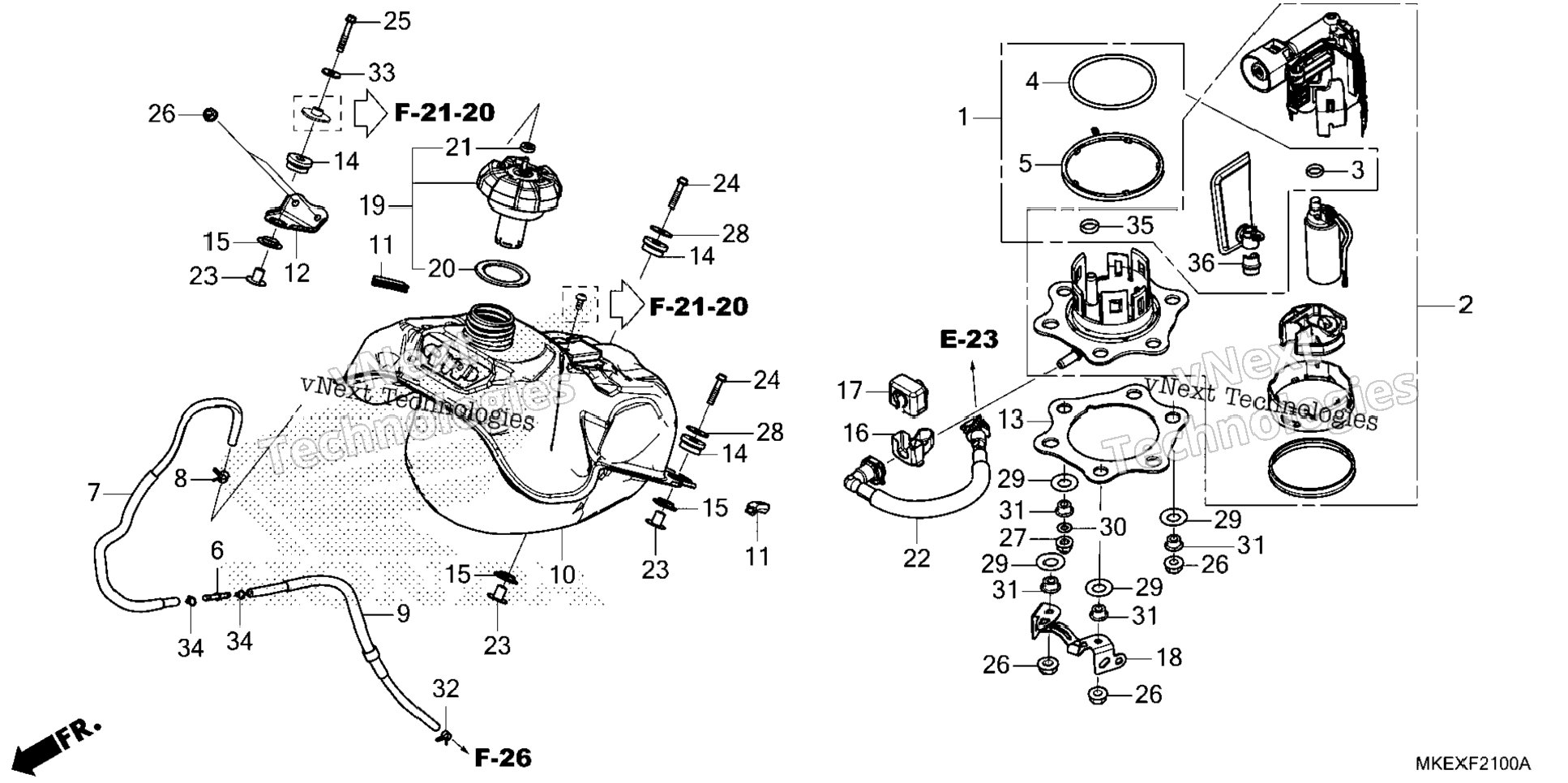

| 1 | 06160-MKE-A00 | FILTER KIT, FUEL | 1 шт. | — | |
|
| 2 | 16700-MKE-A51 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 3 | 16702-KPC-D50 | O-RING (8.6X1.9) | 1 шт. | — | |
|
| 4 | 16711-MEN-A30 | O-RING (3.7X73.9) | 1 шт. | — | |
|
| 5 | 16712-MKE-A00 | DUST SEAL | 1 шт. | — | |
|
| 6 | 16958-GJ6-000 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 7 | 17311-MKE-A50 | TUBE, CHARGE | 1 шт. | — | |
|
| 8 | 17323-MKE-A51 | CLAMP, HOSE (9.5) | 1 шт. | — | |
|
| 9 | 17324-MKE-A50 | TUBE B, CHARGE | 1 шт. | — | |
|
| 10 | 17510-MKE-A50 | TANK, FUEL | 1 шт. | — | |
|
| 11 | 17518-MFN-D00 | TRIM, FUEL TANK | 2 шт. | — | |
|
| 12 | 17518-MKE-A50 | STAY, FR. FUEL TANK | 1 шт. | — | |
|
| 13 | 17519-MKE-A00 | PLATE, FUEL PUMP | 1 шт. | — | |
|
| 14 | 17523-MKE-A50 | RUBBER, TANK MOUNTING | 3 шт. | — | |
|
| 15 | 17524-MKE-A50 | COLLAR, TANK MOUNTING | 3 шт. | — | |
|
| 16 | 17575-KRN-A90 | COVER, FUEL CONNECTOR | 1 шт. | — | |
|
| 17 | 17576-KRN-A90 | RUBBER, FUEL CONNECTOR | 1 шт. | — | |
|
| 18 | 17578-K95-A20 | GUIDE, STOPPER CABLE | 1 шт. | — | |
|
| 19 | 17622-MKE-A00 | GASKET, FUEL CAP | 1 шт. | — | |
|
| 20 | 17628-MKE-A50 | CAP, TUBE JOINT | 1 шт. | — | |
|
| 21 | 17630-MKE-A01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 22 | 19052-MAC-680 | COLLAR, RADIATOR MOUNTING | 3 шт. | — | |
|
| 23 | 90020-GHB-690 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
| 24 | 90021-GHB-720 | BOLT, FLANGE (6X35) | 1 шт. | — | |
|
| 25 | 90217-HW1-670 | NUT, FLANGE (6MM) (Honda Code 7039662) | 7 шт. | — | |
|
| 26 | 90301-MKE-A00 | NUT, FLANGE CAP (6MM) | 1 шт. | — | |
|
| 27 | 90404-GE2-760 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 28 | 90502-MEN-A30 | WASHER, CONICAL SPRING FUEL PUMP | 6 шт. | — | |
|
| 29 | 90504-HW1-670 | WASHER, PLAIN (6MM) (Honda Code 7039829) | 1 шт. | — | |
|
| 30 | 90504-MKE-A00 | COLLAR, FUEL PUMP | 6 шт. | — | |
|
| 31 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 1 шт. | — | |
|
| 32 | 94103-06700 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 33 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 2 шт. | — | |
|
| 34 | 16702-KTR-940 | O-RING (10X2.4) | 1 шт. | — | |
|
| 35 | 16735-MEN-A51 | RUBBER, STOPPER | 1 шт. | — | |
|
