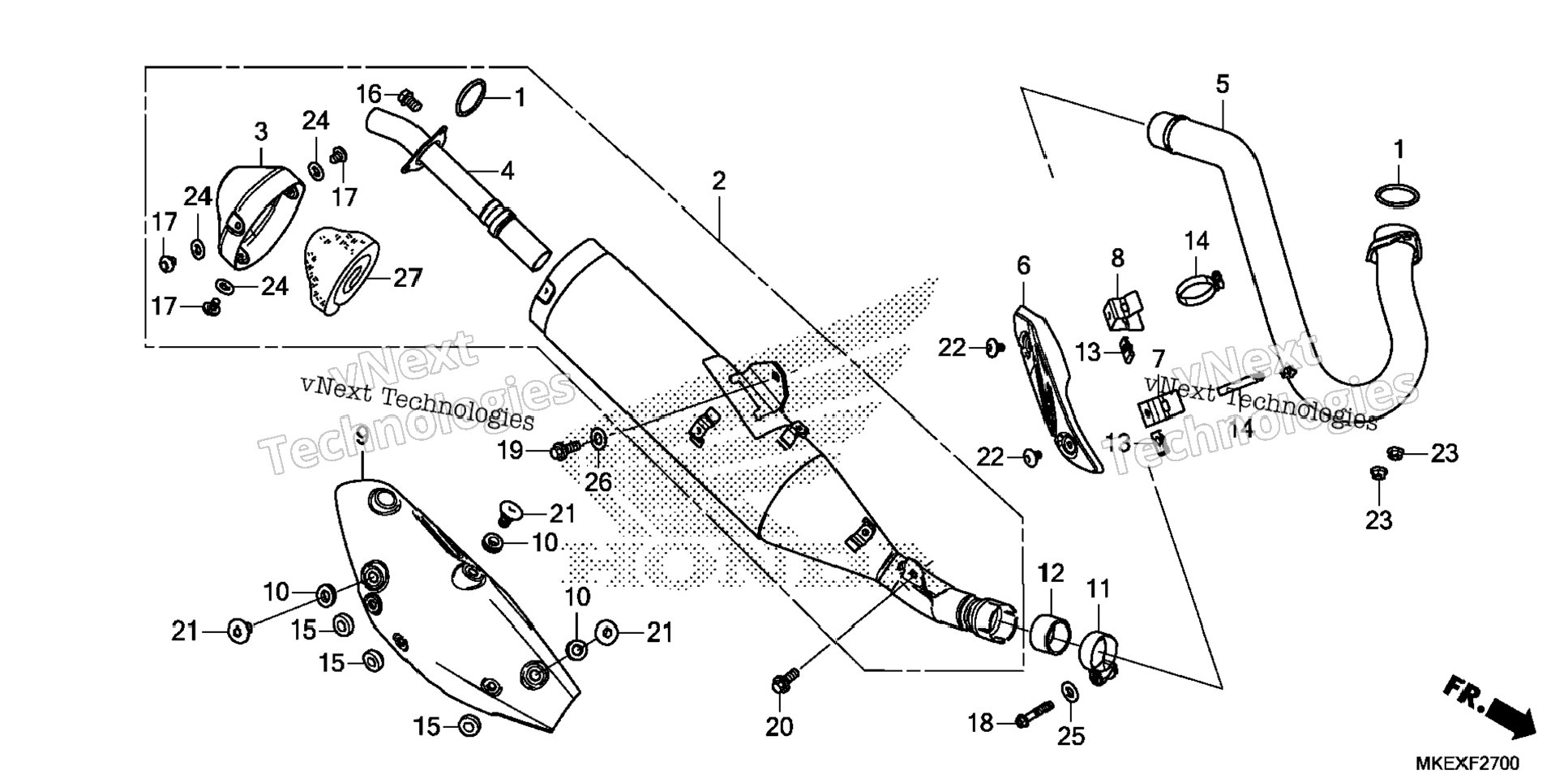

| 1 | 18291-MEB-670 | GASKET, EX. PIPE | 2 шт. | — | |
|
| 2 | 18300-MKE-A41 | MUFFLER ASSY. | 1 шт. | — | |
|
| 3 | 18306-MKE-A50 | CAP, TAIL | 1 шт. | — | |
|
| 4 | 18317-MKE-A41 | ARRESTER, SPARK | 1 шт. | — | |
|
| 5 | 18320-MKE-A40 | PIPE, EX. | 1 шт. | — | |
|
| 6 | 18323-KRN-A80 | PROTECTOR, EX. PIPE | 1 шт. | — | |
|
| 7 | 18327-MKE-A40 | STAY, EX. PIPE PROTECTOR | 1 шт. | — | |
|
| 8 | 18328-MKE-A40 | STAY, RR. EX. PIPE PROTECTOR | 1 шт. | — | |
|
| 9 | 18340-MKE-A40 | GUARD, HEAT | 1 шт. | — | |
|
| 10 | 18345-MBT-610 | RUBBER, PROTECTOR MOUNTING | 3 шт. | — | |
|
| 11 | 18373-KE8-000 | BAND, R. MUFFLER | 1 шт. | — | |
|
| 12 | 18374-MG7-701 | BAND, L. MUFFLER | 1 шт. | — | |
|
| 13 | 18392-MK4-000 | GASKET, MUFFLER | 1 шт. | — | |
|
| 14 | 19508-KA3-710 | NUT, SPRING (6MM) | 2 шт. | — | |
|
| 15 | 19509-MM5-003 | CLAMP, R. RADIATOR HOSE | 2 шт. | — | |
|
| 16 | 83512-KA4-700 | RUBBER, SIDE COVER (PD) | 3 шт. | — | |
|
| 17 | 90101-KCE-000 | BOLT, FLANGE (6X10) | 3 шт. | — | |
|
| 18 | 96001-06010-07 | BOLT, FLANGE (6X10) | 3 шт. | — | |
|
| 19 | 90101-MKE-A00 | BOLT, SPECIAL (5X12) | 3 шт. | — | |
|
| 20 | 90108-MKE-A40 | BOLT, FLANGE (8X40) | 1 шт. | — | |
|
| 21 | 90109-MKE-A50 | BOLT, FLANGE (8X25) (SH) | 1 шт. | — | |
|
| 22 | 90110-MKE-A50 | BOLT, FLANGE (8X20) (SH) | 1 шт. | — | |
|
| 23 | 90113-KTA-920 | SCREW, PAN (6X12) | 3 шт. | — | |
|
| 24 | 90170-MEB-670 | BOLT, SPECIAL (6MM) | 2 шт. | — | |
|
| 25 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 26 | 94101-05400 | WASHER, PLAIN (5MM) | 3 шт. | — | |
|
| 27 | 94102-08400 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 28 | 94103-08400 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 29 | 18334-MKE-A40 | WOOL, GLASS | 1 шт. | — | |
|
