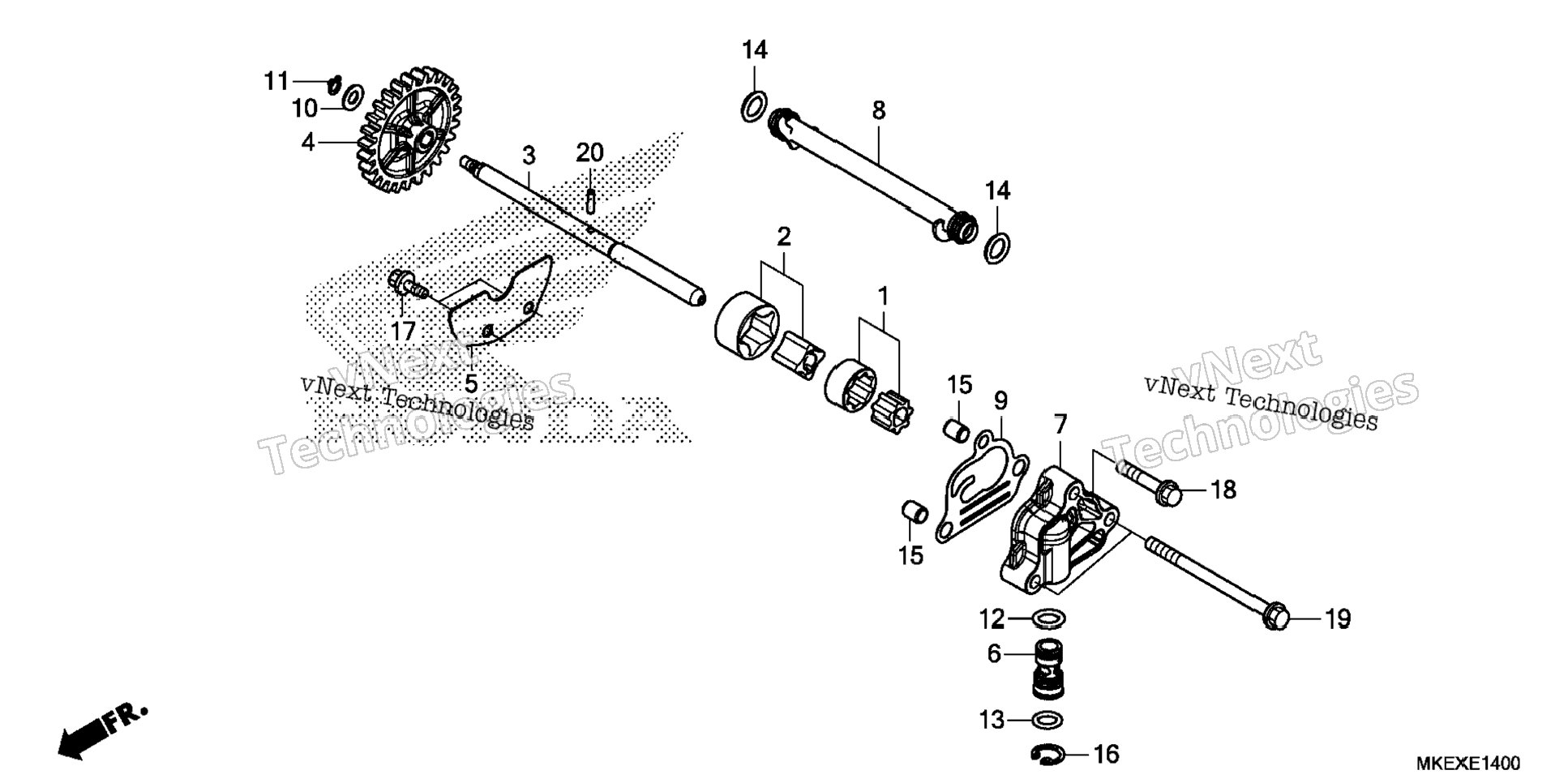

| 1 | 15021-958-000 | ROTOR SET, OIL PUMP | 1 шт. | — | |
|
| 2 | 15021-MKE-A00 | ROTOR SET, OIL PUMP | 1 шт. | — | |
|
| 3 | 15111-MKE-A50 | SHAFT, OIL PUMP | 1 шт. | — | |
|
| 4 | 15130-MKE-A00 | GEAR, OIL PUMP DRIVEN (27T) | 1 шт. | — | |
|
| 5 | 15202-MKE-A00 | GUIDE PLATE, OIL PUMP GEAR | 1 шт. | — | |
|
| 6 | 15220-MKE-AA0 | VALVE ASSY., RELIEF | 1 шт. | — | |
|
| 7 | 15310-MKE-A00 | COVER, OIL PUMP | 1 шт. | — | |
|
| 8 | 15311-MKE-A50 | PIPE, OIL PASSAGE | 1 шт. | — | |
|
| 9 | 15351-MKE-A01 | GASKET, OIL PUMP COVER | 1 шт. | — | |
|
| 10 | 90443-MEL-000 | WASHER (6MM) | 1 шт. | — | |
|
| 11 | 90603-MKE-A00 | CIRCLIP (6MM) | 1 шт. | — | |
|
| 12 | 90751-GK1-003 | O-RING (8.5X1.7) | 1 шт. | — | |
|
| 13 | 91305-PE2-003 | O-RING (9.8X1.9) (Honda Code 1869478) | 1 шт. | — | |
|
| 14 | 91309-ML7-003 | O-RING (9.6X2.6) (ARAI) | 2 шт. | — | |
|
| 15 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 16 | 94520-14000 | CIRCLIP (INNER) (14MM) | 1 шт. | — | |
|
| 17 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 2 шт. | — | |
|
| 18 | 95701-06030-00 | BOLT, FLANGE (6X30) | 1 шт. | — | |
|
| 19 | 95701-06085-00 | BOLT, FLANGE (6X85) (Honda Code 2545317) | 2 шт. | — | |
|
| 20 | 96220-30118 | ROLLER (3X11.8) | 1 шт. | — | |
|
