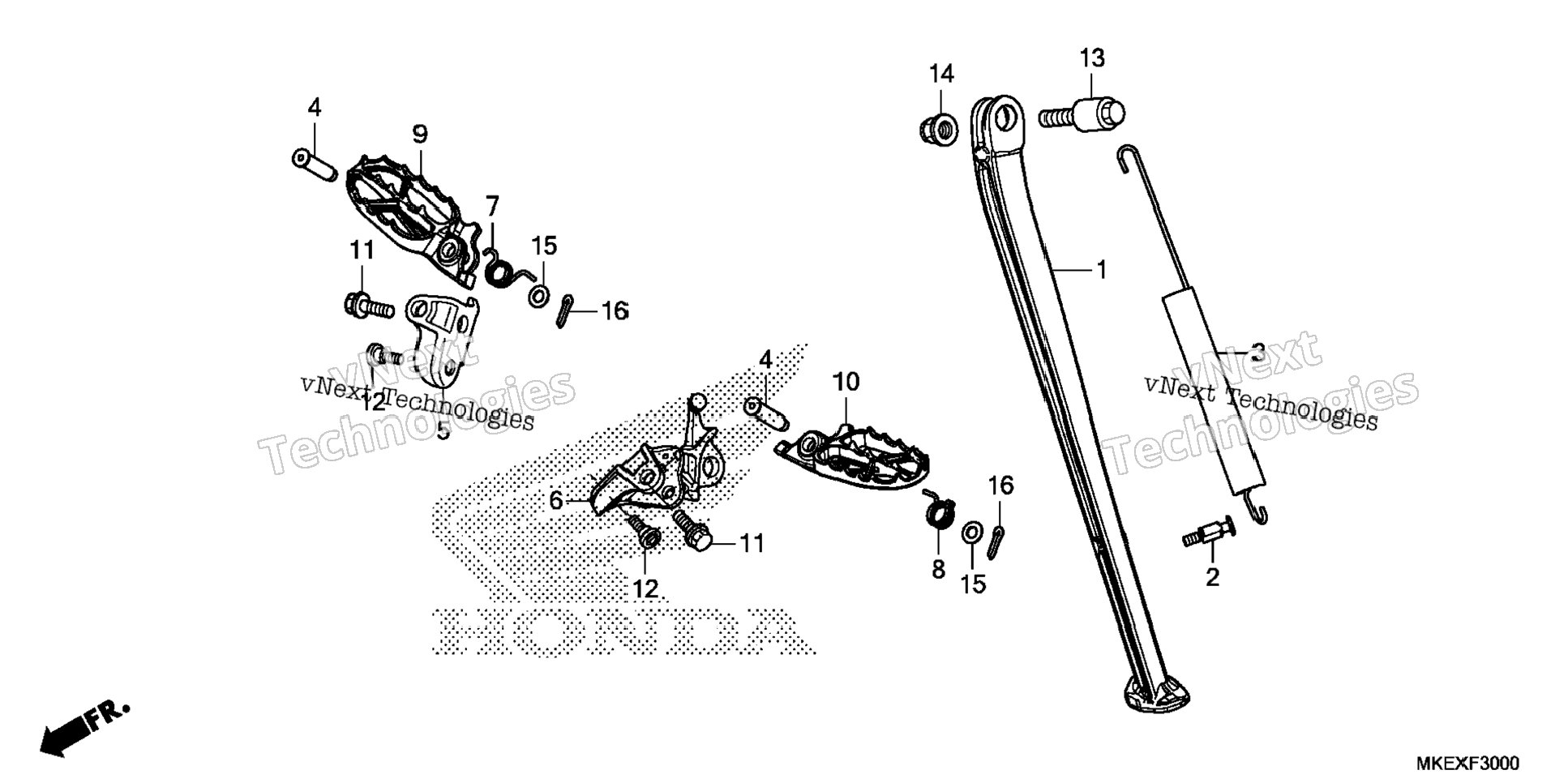

| 1 | 50530-MKE-A10 | BAR, SIDE STAND | 1 шт. | — | |
|
| 2 | 50538-MKE-A10 | HOOK, SIDE STAND SPRING | 1 шт. | — | |
|
| 3 | 50540-MKE-A10 | SPRING ASSY., SIDE STAND | 1 шт. | — | |
|
| 4 | 50603-KZ4-J40 | PIN, STEP JOINT | 2 шт. | — | |
|
| 5 | 50610-MEN-B10 | BRACKET, R. STEP | 1 шт. | — | |
|
| 6 | 50611-K95-A50 | BRACKET, L. STEP | 1 шт. | — | |
|
| 7 | 50617-KZ4-J40 | SPRING, R. STEP RETURN | 1 шт. | — | |
|
| 8 | 50618-KZ4-J40 | SPRING, L. STEP RETURN | 1 шт. | — | |
|
| 9 | 50660-MKE-A70 | ARM, R. STEP | 1 шт. | — | |
|
| 10 | 50670-MKE-A70 | ARM, L. STEP | 1 шт. | — | |
|
| 11 | 90101-KZ4-J40 | BOLT, STEP (12MM) | 2 шт. | — | |
|
| 12 | 90110-MEN-B10 | BOLT, STEP BRACKET | 2 шт. | — | |
|
| 13 | 90118-MKE-A10 | BOLT, SIDE STAND PIVOT | 1 шт. | — | |
|
| 14 | 90304-GE8-003 | NUT, U (10MM) NUT, SELF-LOCK (10MM) | 1 шт. | — | |
|
| 15 | 94102-08800 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 16 | 94201-25150 | PIN, COTTER (2.5MM) | 2 шт. | — | |
|
| 17 | 94201-25200 | PIN, COTTER (2.5MM) | 2 шт. | — | |
|
| 18 | 94201-25250 | PIN, COTTER (2.5MM) | 2 шт. | — | |
|
| 19 | 94201-25300 | PIN, COTTER (2.5MM) | 2 шт. | — | |
|
