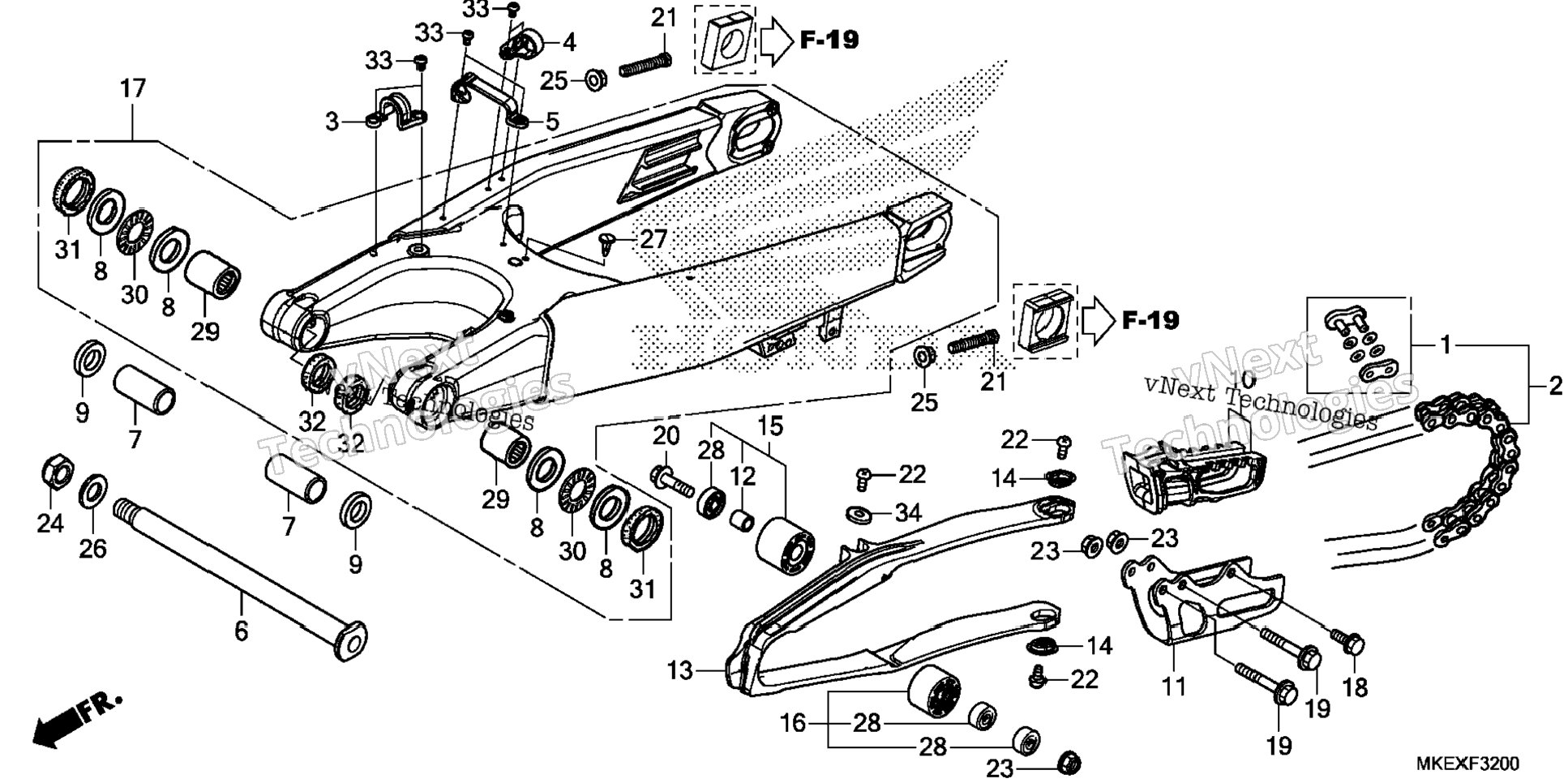

| 1 | 40531-MKE-A12 | MASTER LINK (RK)(SEAL TYPE) | 1 шт. | — | |
|
| 2 | 40540-MKE-A12 | CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L) | 1 шт. | — | |
|
| 3 | 43468-KRN-A90 | GUIDE, BRAKE HOSE | 1 шт. | — | |
|
| 4 | 43468-KRN-C90 | GUIDE A, BRAKE HOSE | 1 шт. | — | |
|
| 5 | 43469-MKE-A00 | GUIDE B, BRAKE HOSE | 1 шт. | — | |
|
| 6 | 52101-KZ4-J40 | SHAFT, SWINGARM PIVOT | 1 шт. | — | |
|
| 7 | 52141-MKE-A00 | COLLAR, SWINGARM (45MM) | 2 шт. | — | |
|
| 8 | 52143-MEN-A30 | WASHER, SWINGARM SIDE THRUST | 4 шт. | — | |
|
| 9 | 52143-MKE-A60 | COLLAR, SWINGARM PIVOT SIDE | 2 шт. | — | |
|
| 10 | 52146-MKE-A01 | GUIDE SET, CHAIN | 1 шт. | — | |
|
| 11 | 52147-MEN-J00 | PLATE, CHAIN GUIDE | 1 шт. | — | |
|
| 12 | 52160-MEN-000 | COLLAR, CHAIN TENSIONER | 1 шт. | — | |
|
| 13 | 52170-MKE-A51 | SLIDER, CHAIN | 1 шт. | — | |
|
| 14 | 52171-KR6-000 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 15 | 52175-MKE-A00 | ROLLER, CHAIN (34MM) | 1 шт. | — | |
|
| 16 | 52176-MKE-A00 | ROLLER, CHAIN (LOWER) (34MM) | 1 шт. | — | |
|
| 17 | 52200-MKE-A40ZB | SWINGARM SUB-ASSY., RR. *NH900L* (DEEP BLACK) | 1 шт. | — | |
|
| 18 | 90020-GHB-620 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 19 | 90020-GHB-750 | BOLT, FLANGE (6X45) | 2 шт. | — | |
|
| 20 | 90101-MEN-A70 | BOLT, FLANGE (8X32) | 1 шт. | — | |
|
| 21 | 90105-MEN-000 | BOLT, HEX. (8X47.5) | 2 шт. | — | |
|
| 22 | 90115-KV3-700 | SCREW, PAN (5X8) | 3 шт. | — | |
|
| 23 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 3 шт. | — | |
|
| 24 | 90305-KZ3-B01 | NUT, U HEX. (14MM) | 1 шт. | — | |
|
| 25 | 90309-357-000 | NUT, HEX. (10MM) | 2 шт. | — | |
|
| 26 | 90501-GAH-000 | WASHER (26X14X2.8) | 1 шт. | — | |
|
| 27 | 90501-GBL-730 | WASHER (14MM) | 1 шт. | — | |
|
| 28 | 90666-SA0-003M4 | CLIP, TRIM (5MM) *NH900L* (DEEP BLACK) | 1 шт. | — | |
|
| 29 | 91051-KRN-A31 | BEARING, RADIAL BALL (608UU) | 3 шт. | — | |
|
| 30 | 91071-MJ0-003 | BEARING, NEEDLE (22X29X30) (NTN) | 2 шт. | — | |
|
| 31 | 91071-MJ0-004 | BEARING, NEEDLE (THOMPSON) | 2 шт. | — | |
|
| 32 | 91072-KZ3-861 | BEARING, NEEDLE THRUST | 2 шт. | — | |
|
| 33 | 91251-MKE-A01 | DUST SEAL (30X37X3) | 2 шт. | — | |
|
| 34 | 91252-MKE-A01 | DUST SEAL (22X29X3) | 2 шт. | — | |
|
| 35 | 93500-05008-0G | SCREW, PAN (5X8) | 6 шт. | — | |
|
| 36 | 94103-05700 | WASHER, PLAIN (5MM) | 1 шт. | — | |
|
