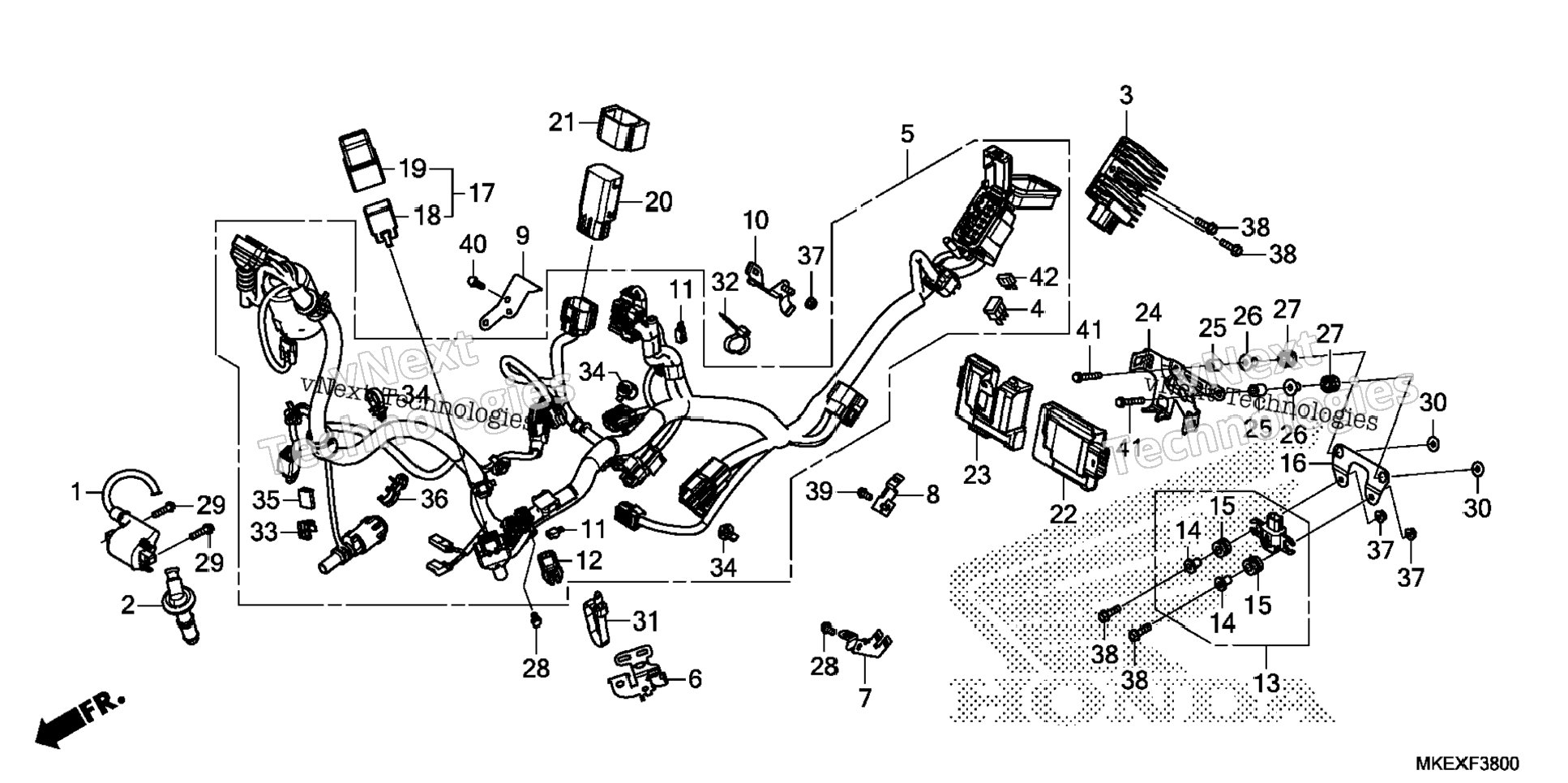

| 1 | 30500-MKE-A01 | COIL ASSY., IGNITION | 1 шт. | — | |
|
| 2 | 30700-MKE-A01 | CAP ASSY., NOISE SUPPRESSOR | 1 шт. | — | |
|
| 3 | 31600-K87-A01 | RECTIFIER ASSY., REGULATE | 1 шт. | — | |
|
| 4 | 31730-MAS-601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 шт. | — | |
|
| 5 | 32100-MKE-A42 | WIRE HARNESS | 1 шт. | — | |
|
| 6 | 32111-MKE-A50 | STAY, HARNESS | 1 шт. | — | |
|
| 7 | 32125-MKE-A50 | STAY, HARNESS (L) | 1 шт. | — | |
|
| 8 | 32126-MKE-A50 | STAY, CONNECTOR (L) | 1 шт. | — | |
|
| 9 | 32127-MKE-A50 | STAY, CABLE | 1 шт. | — | |
|
| 10 | 32129-MKE-A50 | STAY, HARNESS | 1 шт. | — | |
|
| 11 | 32146-S84-003 | CONNECTOR, DIODE (2P) (3A) | 2 шт. | — | |
|
| 12 | 32606-K44-V01 | CAP, DUMMY (WPC 4P 090 M) (RED) | 1 шт. | — | |
|
| 13 | 35160-MKE-A51 | SENSOR ASSY., BANK ANGLE | 1 шт. | — | |
|
| 14 | 35161-MKE-A51 | COLLAR | 2 шт. | — | |
|
| 15 | 35163-MGC-003 | GROMMET | 2 шт. | — | |
|
| 16 | 35165-MKE-A50 | STAY, BANK ANGLE SENSOR | 1 шт. | — | |
|
| 17 | 38500-GC7-612 | RELAY ASSY., STARTER | 1 шт. | — | |
|
| 18 | 38501-GN2-014 | RELAY, STARTER (MITSUBA) | 1 шт. | — | |
|
| 19 | 38506-GC7-611 | SUSPENSION, STARTER RELAY (MITSUBA) | 1 шт. | — | |
|
| 20 | 38580-HP5-601 | RELAY, WATERPROOF (15AX2) (Honda Code 8557167) | 1 шт. | — | |
|
| 21 | 38585-MKE-A11 | CUSHION, RELAY | 1 шт. | — | |
|
| 22 | 38770-MKE-A41 | PGM-FI UNIT | 1 шт. | — | |
|
| 23 | 38771-MKE-A00 | SUSPENSION, PGM-FI UNIT | 1 шт. | — | |
|
| 24 | 50124-MKE-A00 | BRACKET, ECU | 1 шт. | — | |
|
| 25 | 50125-MKE-A50 | COLLAR, ECU BRACKET | 2 шт. | — | |
|
| 26 | 61104-MKE-A50 | COLLAR | 2 шт. | — | |
|
| 27 | 84703-MKE-A50 | RUBBER, MOUNT | 2 шт. | — | |
|
| 28 | 90020-GHB-610 | BOLT, FLANGE (6X10) | 2 шт. | — | |
|
| 29 | 90020-GHB-680 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 30 | 90535-MKE-A00 | WASHER (6.1MM) | 2 шт. | — | |
|
| 31 | 90650-MA6-720 | BAND, WIRE HARNESS (Honda Code 1746650) | 1 шт. | — | |
|
| 32 | 90652-KT1-771 | BAND, WIRE (BLACK) | 1 шт. | — | |
|
| 33 | 91531-TG1-003 | CLIP, HARNESS BAND (145MM) (BLACK) | 1 шт. | — | |
|
| 34 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) | 3 шт. | — | |
|
| 35 | 91554-SM4-003 | HOLDER, BRACKET (RED) | 1 шт. | — | |
|
| 36 | 91558-P5G-A01 | CLIP, TUBE (11MM) (BLACK) | 1 шт. | — | |
|
| 37 | 94050-06080 | NUT, FLANGE (6MM) | 3 шт. | — | |
|
| 38 | 95701-06022-08 | BOLT, FLANGE (6X22) | 4 шт. | — | |
|
| 39 | 96001-06010-00 | BOLT, FLANGE (6X10) | 1 шт. | — | |
|
| 40 | 96001-06020-00 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 41 | 96001-06038-00 | BOLT, FLANGE (6X38) | 2 шт. | — | |
|
| 42 | 98200-41000 | FUSE, MINI (10A) | 6 шт. | — | |
|
