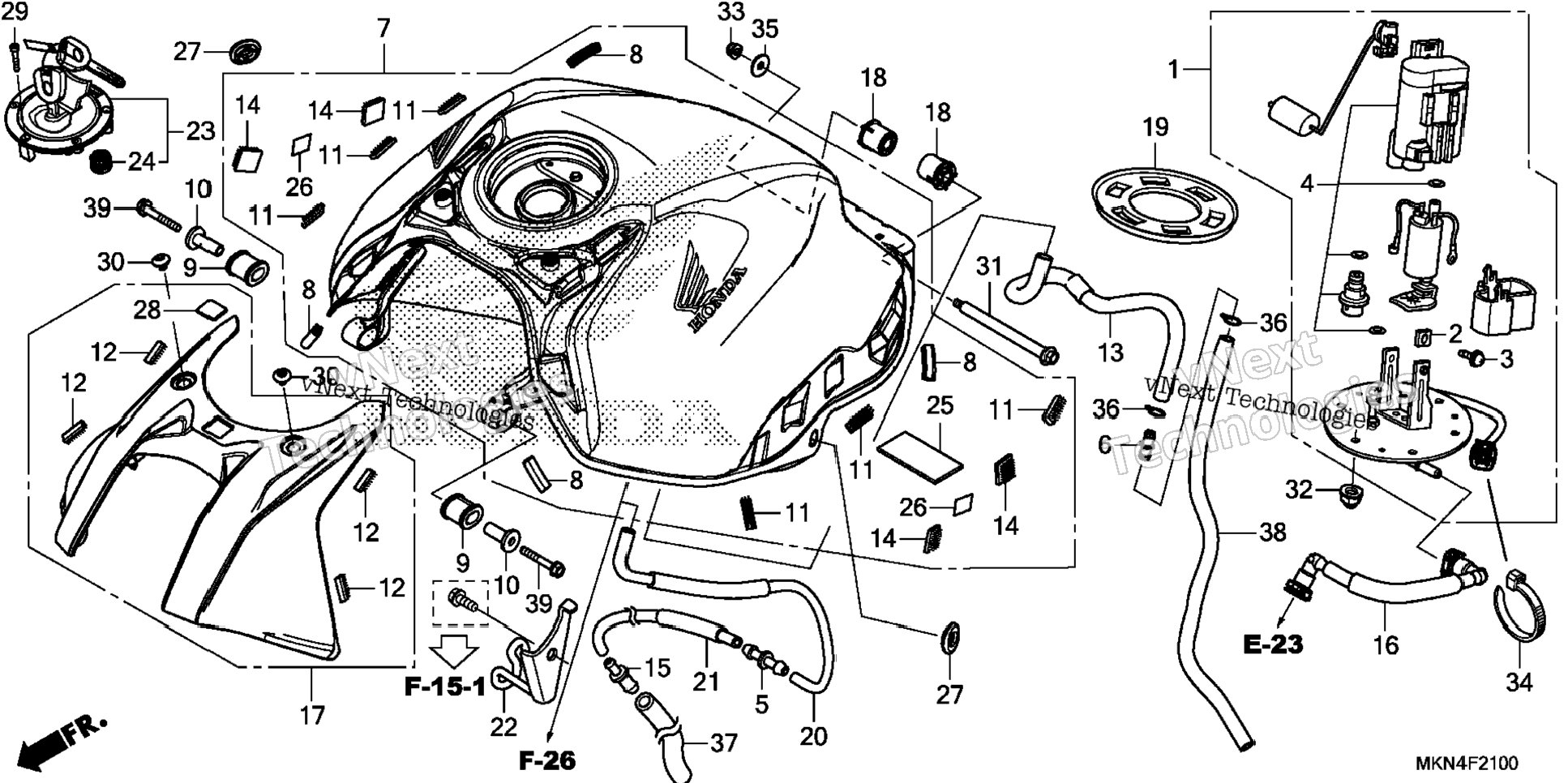

| 1 | 16700-MKN-D51 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16711-MGS-D31 | STOPPER | 2 шт. | — | |
|
| 3 | 16712-MGS-D31 | SCREW (4X6.6) | 2 шт. | — | |
|
| 4 | 16730-MKA-D82 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 5 | 16730-MKA-D83 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 6 | 16730-MKT-D01 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 7 | 17359-419-670 | JOINT, BREATHER TUBE | 1 шт. | — | |
|
| 8 | 17500-MKN-D30ZA | TANK ASSY., FUEL (TYPE1) (WL) | 1 шт. | — | |
|
| 9 | 17516-KCZ-000ZB | TRIM, FUEL TANK *NH1* (BLACK) | 4 шт. | — | |
|
| 10 | 17534-MKN-D50 | RUBBER, FR. TANK MOUNTING | 2 шт. | — | |
|
| 11 | 17538-KZZ-900 | COLLAR | 2 шт. | — | |
|
| 12 | 17540-MJE-D00 | FASTENER A, DUAL LOCK (8X25) | 6 шт. | — | |
|
| 13 | 17541-MJE-D00 | FASTENER C, DUAL LOCK (8X25) | 4 шт. | — | |
|
| 14 | 17543-MJE-D00 | TUBE, DRAIN | 1 шт. | — | |
|
| 15 | 17543-MJE-DB0 | FASTENER F, DUAL LOCK (20X20) | 4 шт. | — | |
|
| 16 | 17570-MJE-D01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 17 | 17570-MKN-D30ZA | COVER ASSY., FR. FUEL TANK (TYPE1) (WL) | 1 шт. | — | |
|
| 18 | 17572-MJE-D00 | CUSHION, RR. FUEL TANK | 2 шт. | — | |
|
| 19 | 17574-MGS-D30 | GASKET, BASE | 1 шт. | — | |
|
| 20 | 17620-MJE-D02 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 21 | 17621-MGP-D61 | SEAL, BREATHER | 1 шт. | — | |
|
| 22 | 17621-MGP-D62 | SEAL, BREATHER | 1 шт. | — | |
|
| 23 | 50173-KWT-700 | FILM, PROTECTOR | 1 шт. | — | |
|
| 24 | 77227-KVK-900 | FILM B, PROTECTOR | 2 шт. | — | |
|
| 25 | 83551-300-000 | GROMMET, AIR CLEANER HOUSING | 2 шт. | — | |
|
| 26 | 86150-KPG-901 | EMBLEM, PRODUCT (MARUI) | 1 шт. | — | |
|
| 27 | 90120-MJE-D00 | BOLT, SOCKET (4X25) (SUS) | 3 шт. | — | |
|
| 28 | 90130-MKN-D50 | SCREW, PAN (6X8) | 2 шт. | — | |
|
| 29 | 90135-MJE-D00 | BOLT, HINGE (10X102.4) | 1 шт. | — | |
|
| 30 | 90201-415-000 | NUT, CAP (6MM) | 6 шт. | — | |
|
| 31 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 1 шт. | — | |
|
| 32 | 90651-KV6-003 | BAND, WIRE (165MM) (BLACK) | 1 шт. | — | |
|
| 33 | 94103-06800 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 34 | 95002-02130 | CLIP, TUBE (B12.5) | 2 шт. | — | |
|
| 35 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M) | 1 шт. | — | |
|
| 36 | 95701-06040-00 | BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) | 2 шт. | — | |
|
