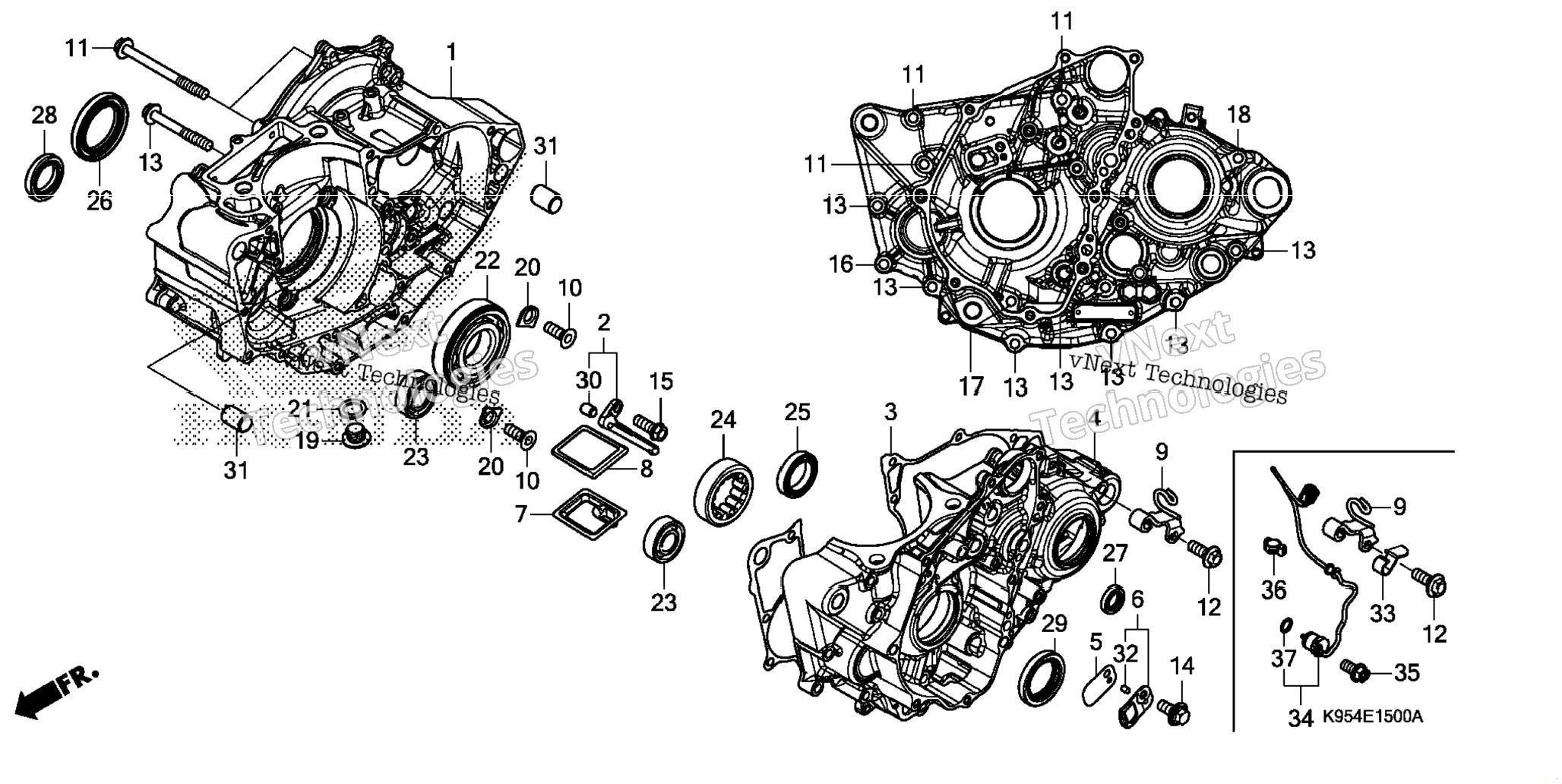

| 1 | 11100-K95-A20 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11110-K95-A40 | JET, PISTON | 1 шт. | — | |
|
| 3 | 11191-K95-A21 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 4 | 11200-K95-A60 | CRANKCASE, L. | 1 шт. | — | |
|
| 5 | 11221-MKE-A00 | VALVE, REED | 1 шт. | — | |
|
| 6 | 11230-MKE-A00 | STOPPER, REED VALVE | 1 шт. | — | |
|
| 7 | 15153-K95-A20 | STRAINER, OIL | 1 шт. | — | |
|
| 8 | 15421-MKE-A70 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 9 | 22830-K95-A21 | RECEIVER, CLUTCH CABLE | 1 шт. | — | |
|
| 10 | 90001-MEN-850 | SCREW, SPECIAL FLAT (6X17) | 2 шт. | — | |
|
| 11 | 90025-GHB-790 | BOLT, FLANGE (6X65) | 5 шт. | — | |
|
| 13 | 90025-GHB-750 | BOLT, FLANGE (6X45) | 8 шт. | — | |
|
| 14 | 90019-MKE-A00 | BOLT-WASHER (6X14) | 1 шт. | — | |
|
| 15 | 90020-GHB-640 | BOLT, FLANGE (6X16) | 1 шт. | — | |
|
| 15 | 90020-GHB-640 | BOLT, FLANGE (6X16) | 1 шт. | — | |
|
| 16 | 90025-GHB-690 | BOLT, FLANGE (6X28) | 1 шт. | — | |
|
| 17 | 90025-GHB-760 | BOLT, FLANGE (6X50) | 1 шт. | — | |
|
| 18 | 90025-GHB-810 | BOLT, FLANGE (6X75) | 1 шт. | — | |
|
| 19 | 90084-MN8-010 | CAP (14MM) | 1 шт. | — | |
|
| 20 | 90441-MEN-A30 | PLATE, BEARING HOLDER | 2 шт. | — | |
|
| 21 | 90544-KF0-000 | WASHER, SEALING (14MM) | 1 шт. | — | |
|
| 22 | 91001-K95-A21 | BEARING, RADIAL BALL (30X72X16) | 1 шт. | — | |
|
| 23 | 91001-MEN-A31 | BEARING, RADIAL BALL SPECIAL (6202) | 2 шт. | — | |
|
| 24 | 91002-K95-A21 | BEARING, SPECIAL ROLLER | 1 шт. | — | |
|
| 25 | 91004-GEM-003 | BEARING, RADIAL BALL (6805) | 1 шт. | — | |
|
| 26 | 91202-K95-A41 | OIL SEAL (39X56X7.5) | 1 шт. | — | |
|
| 27 | 91203-KA4-771 | OIL SEAL (14X22X5) (NOK) | 1 шт. | — | |
|
| 28 | 91206-K95-A21 | OIL SEAL (24X36X7) | 1 шт. | — | |
|
| 29 | 91207-K95-A21 | OIL SEAL (31X45X7) | 1 шт. | — | |
|
| 30 | 94301-08100 | PIN A, DOWEL (8X10) | 1 шт. | — | |
|
| 31 | 94301-14200 | PIN A, DOWEL (14X20) | 2 шт. | — | |
|
| 32 | 94303-04065 | PIN C, DOWEL (4X6.5) | 1 шт. | — | |
|
| 33 | 32113-K95-A60 | STAY, CHANGE SWITCH WIRE | 1 шт. | — | |
|
| 34 | 35759-K95-A61 | SWITCH ASSY., CHANGE | 1 шт. | — | |
|
| 35 | 90020-GHB-620 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 36 | 90690-MJE-D11 | CLIP, CABLE (10MM) | 1 шт. | — | |
|
| 37 | 91305-KC1-850 | O-RING (16.5X2.5) | 1 шт. | — | |
|
