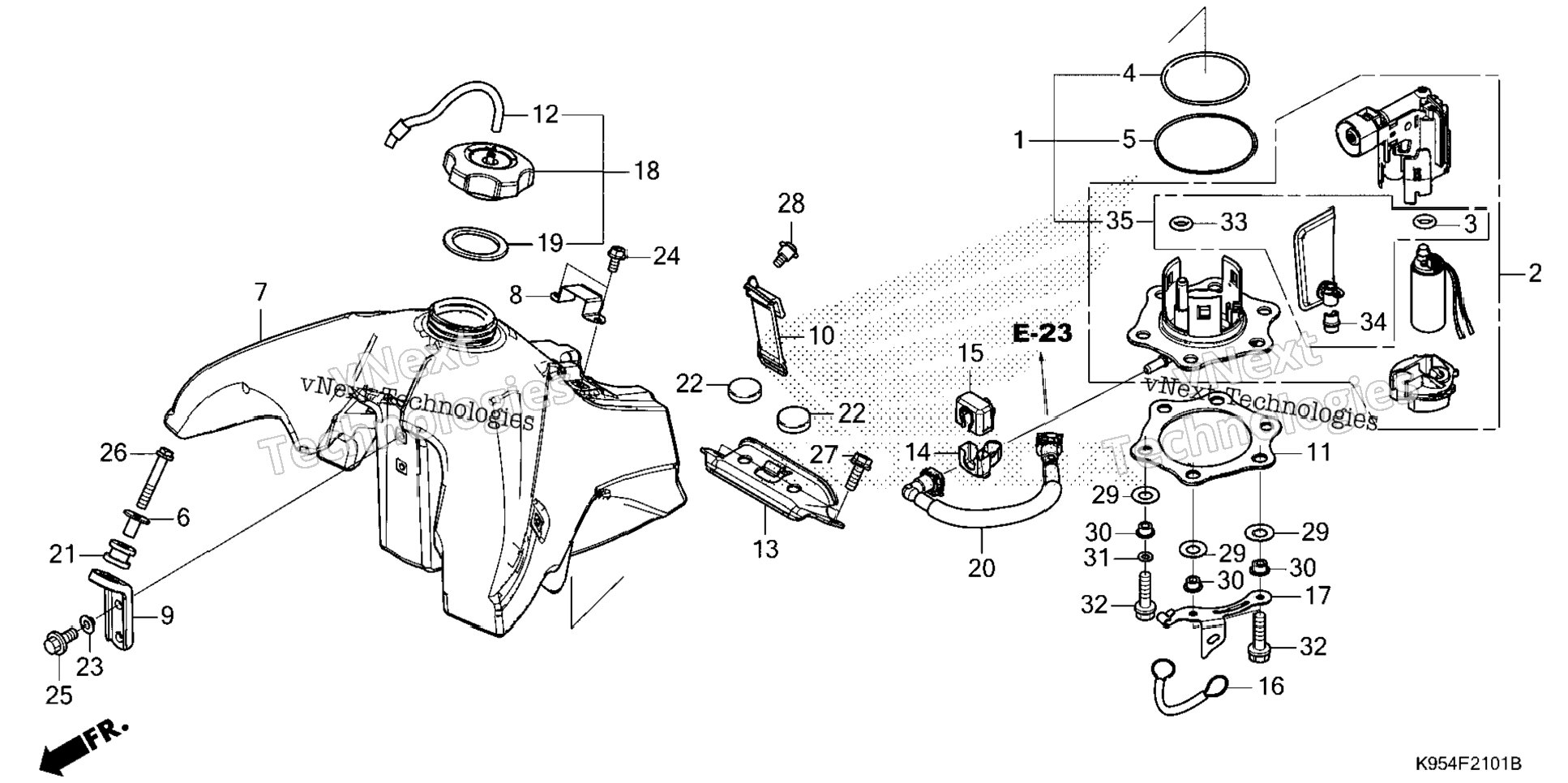

| 1 | 06160-MEN-A50 | FILTER KIT, FUEL | 1 шт. | — | |
|
| 2 | 16700-MEN-A52 | PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) | 1 шт. | — | |
|
| 3 | 16702-KPC-D50 | O-RING (8.6X1.9) | 1 шт. | — | |
|
| 4 | 16711-MEN-A30 | O-RING (3.7X73.9) | 1 шт. | — | |
|
| 5 | 16712-MEN-A30 | O-RING (2.4X88.4) | 1 шт. | — | |
|
| 6 | 17509-KZ3-B00 | COLLAR, TANK SETTING | 1 шт. | — | |
|
| 7 | 17510-MKE-A10 | TANK, FUEL | 1 шт. | — | |
|
| 8 | 17513-MKE-A10 | STAY, SEAT HOOK | 1 шт. | — | |
|
| 9 | 17516-MKE-A10 | STAY, FR. FUEL TANK | 1 шт. | — | |
|
| 10 | 17517-MKE-A10 | BAND, RR. TANK | 1 шт. | — | |
|
| 11 | 17519-MEN-A30 | PLATE, FUEL PUMP | 1 шт. | — | |
|
| 12 | 17521-MKE-A70 | TUBE, FUEL CAP BREATHER | 1 шт. | — | |
|
| 13 | 17525-MKE-A10 | STAY, RR. TANK | 1 шт. | — | |
|
| 14 | 17575-KRN-A90 | COVER, FUEL CONNECTOR | 1 шт. | — | |
|
| 15 | 17576-KRN-A90 | RUBBER, FUEL CONNECTOR | 1 шт. | — | |
|
| 16 | 17577-MEN-A30 | CABLE, FUEL TANK STOPPER | 1 шт. | — | |
|
| 17 | 17578-K95-A50 | GUIDE, STOPPER CABLE | 1 шт. | — | |
|
| 18 | 17620-MKE-A80 | CAP ASSY., FUEL TANK | 1 шт. | — | |
|
| 19 | 17624-KT1-780 | GASKET, FUEL CAP | 1 шт. | — | |
|
| 20 | 17624-KT1-781 | GASKET, FUEL CAP | 1 шт. | — | |
|
| 21 | 17630-MKE-A01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 22 | 18334-ML3-680 | RUBBER, MUFFLER | 1 шт. | — | |
|
| 23 | 77211-965-000 | RUBBER, SEAT STOPPER | 2 шт. | — | |
|
| 24 | 84706-415-000 | COLLAR | 2 шт. | — | |
|
| 25 | 90002-892-000 | BOLT, FLANGE (5X10) | 2 шт. | — | |
|
| 26 | 90020-GHB-640 | BOLT, FLANGE (6X16) | 2 шт. | — | |
|
| 27 | 90020-GHB-700 | BOLT, FLANGE (6X30) | 1 шт. | — | |
|
| 28 | 90030-GHB-640 | BOLT, FLANGE (6X16) | 2 шт. | — | |
|
| 29 | 90105-MEN-730 | SCREW (5X12) | 1 шт. | — | |
|
| 30 | 90502-MEN-A30 | WASHER, CONICAL SPRING FUEL PUMP | 6 шт. | — | |
|
| 31 | 90504-MKE-A00 | COLLAR, FUEL PUMP | 6 шт. | — | |
|
| 32 | 94101-06000 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 33 | 94101-06080 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 34 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 4 шт. | — | |
|
| 35 | 96001-06020-00 | BOLT, FLANGE (6X20) | 6 шт. | — | |
|
| 36 | 16702-KTR-940 | O-RING (10X2.4) | 1 шт. | — | |
|
| 37 | 16735-MEN-A51 | RUBBER, STOPPER | 1 шт. | — | |
|
