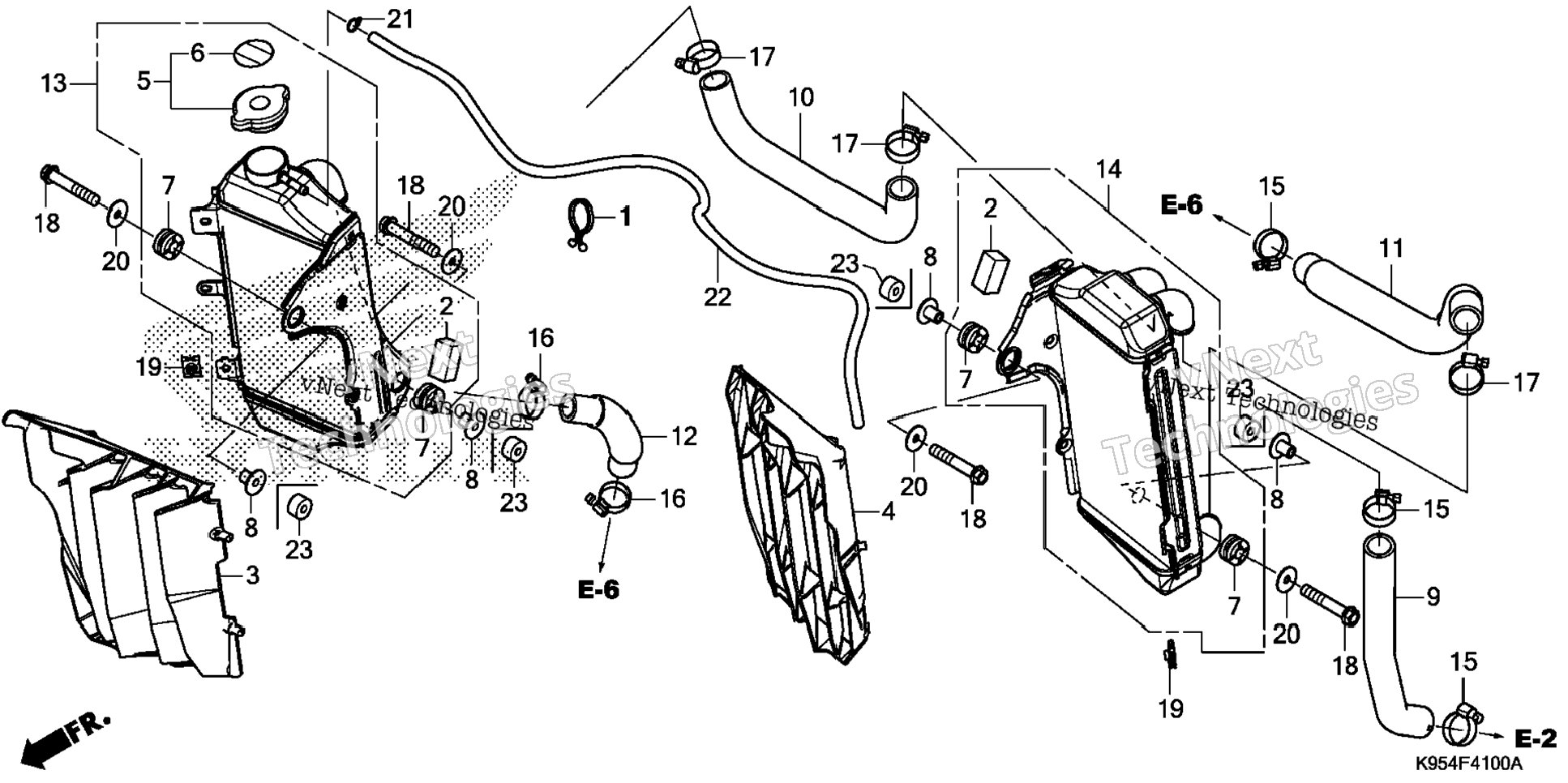

| 1 | 17233-KCZ-J20 | HOLDER, TUBE | 1 шт. | — | |
|
| 2 | 19021-MKE-A10 | RUBBER, RADIATOR | 2 шт. | — | |
|
| 3 | 19033-K95-A60 | GRILLE, R. RADIATOR | 1 шт. | — | |
|
| 4 | 19034-K95-A60 | GRILLE, L. RADIATOR | 1 шт. | — | |
|
| 5 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 6 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 7 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 4 шт. | — | |
|
| 8 | 19052-MAC-680 | COLLAR, RADIATOR MOUNTING | 4 шт. | — | |
|
| 9 | 19061-K95-A20 | HOSE A, WATER | 1 шт. | — | |
|
| 10 | 19062-K95-A50 | HOSE B, WATER | 1 шт. | — | |
|
| 11 | 19063-K95-A50 | HOSE C, WATER | 1 шт. | — | |
|
| 12 | 19064-K95-A70 | HOSE D, WATER (RX) | 1 шт. | — | |
|
| 13 | 19100-K95-A70 | RADIATOR ASSY., R. | 1 шт. | — | |
|
| 14 | 19150-K95-A50 | RADIATOR ASSY., L. | 1 шт. | — | |
|
| 15 | 19502-MKE-A00 | CLAMP, WATER HOSE (D27) | 3 шт. | — | |
|
| 16 | 19505-KS6-700 | CLAMP, WATER HOSE (A) | 2 шт. | — | |
|
| 17 | 19506-KS6-700 | CLAMP B, WATER HOSE | 3 шт. | — | |
|
| 18 | 90020-GHB-720 | BOLT, FLANGE (6X35) | 4 шт. | — | |
|
| 19 | 90201-KPR-901 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 20 | 90501-MFG-D00 | WASHER, PLAIN (17MM) | 4 шт. | — | |
|
| 21 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 1 шт. | — | |
|
| 22 | 95003-14001-10M | BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M) | 1 шт. | — | |
|
| 23 | 19502-MKE-A10 | COLLAR, RADIATOR MOUNTING | 4 шт. | — | |
|
