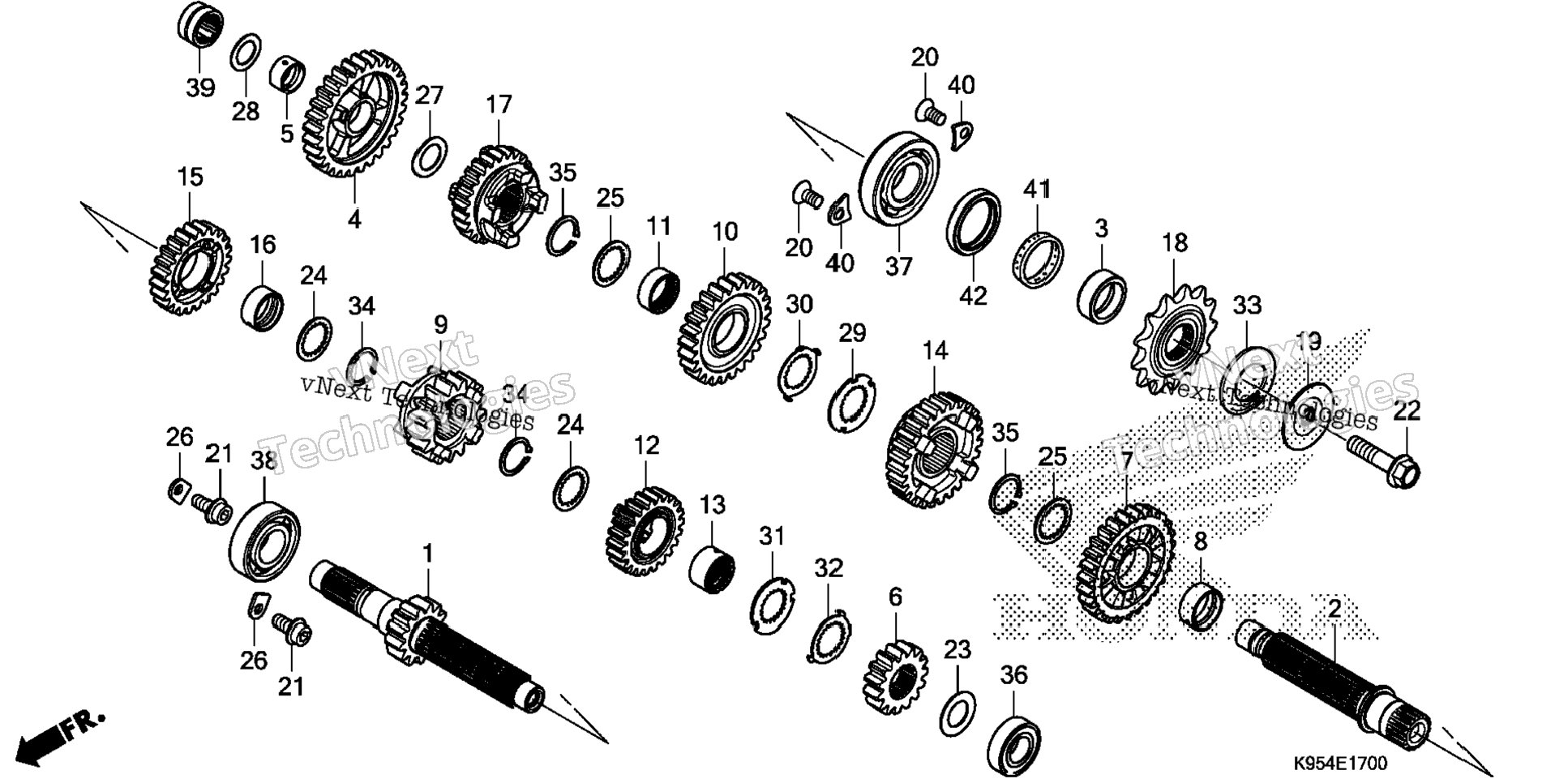

| 1 | 23210-K95-A20 | MAINSHAFT (13T) | 1 шт. | — | |
|
| 2 | 23220-K95-A20 | COUNTERSHAFT | 1 шт. | — | |
|
| 3 | 23225-MEN-730 | COLLAR, COUNTERSHAFT | 1 шт. | — | |
|
| 4 | 23411-K95-A20 | GEAR, COUNTER FIRST (29T) | 1 шт. | — | |
|
| 5 | 23413-KRN-A40 | COLLAR (17MM) | 1 шт. | — | |
|
| 6 | 23421-K95-A60 | GEAR, MAINSHAFT SECOND (16T) | 1 шт. | — | |
|
| 7 | 23431-K95-A60 | GEAR, COUNTERSHAFT SECOND (28T) | 1 шт. | — | |
|
| 8 | 23432-K95-A20 | COLLAR (23X26X11.5) | 1 шт. | — | |
|
| 9 | 23441-K95-A60 | GEAR, MAINSHAFT THIRD (17T) | 1 шт. | — | |
|
| 10 | 23451-K95-A21 | GEAR, COUNTER THIRD (25T) | 1 шт. | — | |
|
| 11 | 23452-K95-A20 | COLLAR, SPLINE (23X10) | 1 шт. | — | |
|
| 12 | 23461-K95-A60 | GEAR, MAINSHAFT FOURTH (22T) | 1 шт. | — | |
|
| 13 | 23462-K95-A20 | COLLAR, SPLINE (22X14) | 1 шт. | — | |
|
| 14 | 23471-K95-A60 | GEAR, COUNTER FOURTH (27T) | 1 шт. | — | |
|
| 15 | 23481-K95-A40 | GEAR, MAINSHAFT FIFTH (23T) | 1 шт. | — | |
|
| 16 | 23482-K95-A20 | COLLAR (22X25X11.2) | 1 шт. | — | |
|
| 17 | 23491-K95-A60 | GEAR, COUNTERSHAFT FIFTH (24T) | 1 шт. | — | |
|
| 18 | 23801-K95-A20 | SPROCKET, DRIVE (13T) | 1 шт. | — | |
|
| 19 | 23802-KSC-670 | COLLAR, DRIVE SPROCKET | 1 шт. | — | |
|
| 20 | 90003-KRN-670 | SCREW, SPECIAL FLAT (6X12) | 2 шт. | — | |
|
| 21 | 90071-MF5-000 | BOLT, FLANGE SOCKET (6X14) | 2 шт. | — | |
|
| 22 | 90112-413-000 | BOLT, UBS (8X33) | 1 шт. | — | |
|
| 23 | 90403-HN8-000 | WASHER, SPECIAL (17MM) | 1 шт. | — | |
|
| 24 | 90404-KW3-000 | WASHER, THRUST INVOLUTE (22X21X1) | 2 шт. | — | |
|
| 25 | 90431-K95-A20 | WASHER, SPLINE (23MM) | 2 шт. | — | |
|
| 26 | 90441-KRM-840 | PLATE, BEARING HOLDER | 2 шт. | — | |
|
| 27 | 90446-357-000 | WASHER, THRUST (17.2MM) | 1 шт. | — | |
|
| 28 | 90446-K95-A20 | WASHER (16X26X1.0) | 1 шт. | — | |
|
| 29 | 90451-K95-A20 | WASHER, SPLINE (23MM) | 1 шт. | — | |
|
| 30 | 90452-K95-A20 | WASHER, LOCK (23MM) | 1 шт. | — | |
|
| 31 | 90453-K95-A20 | WASHER, SPLINE (22MM) | 1 шт. | — | |
|
| 32 | 90454-K95-A20 | WASHER, LOCK (22MM) | 1 шт. | — | |
|
| 33 | 90501-KSC-670 | WASHER, SPRING (24MM) | 1 шт. | — | |
|
| 34 | 90602-360-000 | SET-RING, COUNTER SECOND | 2 шт. | — | |
|
| 35 | 90602-K95-A20 | CIRCLIP (OUTER) (23MM) | 2 шт. | — | |
|
| 36 | 91004-MCT-003 | BEARING, RADIAL BALL (6003U) | 1 шт. | — | |
|
| 37 | 91005-MKE-A01 | BEARING, RADIAL BALL (24X56X14) | 1 шт. | — | |
|
| 38 | 91006-HM7-003 | BEARING, RADIAL BALL (22X47X14) | 1 шт. | — | |
|
| 39 | 91006-K95-A21 | BEARING, NEEDLE (16X24X13) | 1 шт. | — | |
|
| 40 | 91012-KA3-710 | PLATE, COUNTERSHAFT BEARING | 2 шт. | — | |
|
| 41 | 91201-ML3-873 | D-RING (23.75MM) (ARAI) | 1 шт. | — | |
|
| 42 | 91207-ML3-871 | OIL SEAL (31X40X7) (ARAI) | 1 шт. | — | |
|
