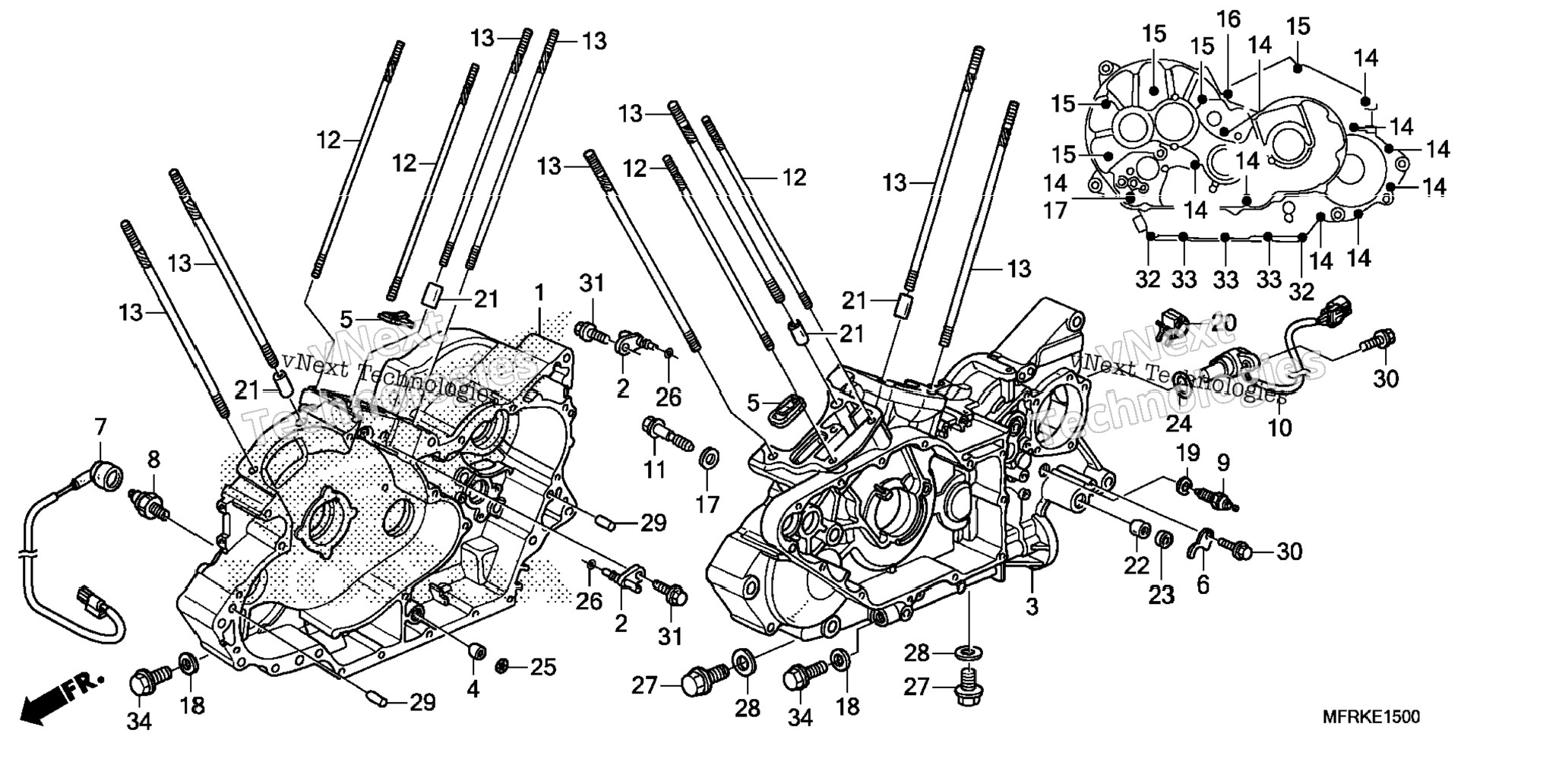

| 1 | 11100-MFY-A00 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11140-MEA-670 | JET, OIL | 2 шт. | — | |
|
| 3 | 11200-MFY-A00 | CRANKCASE, L. | 1 шт. | — | |
|
| 4 | 15155-300-000 | COLLAR, O-RING | 1 шт. | — | |
|
| 5 | 18601-MN4-851 | VALVE, REED | 2 шт. | — | |
|
| 6 | 24612-MAL-600 | PLATE, SPINDLE | 1 шт. | — | |
|
| 7 | 32101-MFR-670 | SUB-HARNESS, ENGINE | 1 шт. | — | |
|
| 8 | 35500-MJ4-024 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 9 | 35600-KE8-003 | SWITCH ASSY., NEUTRAL (TOYO) | 1 шт. | — | |
|
| 10 | 37700-MFR-672 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 11 | 90003-MCH-000 | BOLT, ORIFICE (1.6MM) | 1 шт. | — | |
|
| 12 | 90011-MAH-000 | BOLT, STUD (8X259) | 4 шт. | — | |
|
| 13 | 90012-MBC-003 | BOLT, STUD (10X269) | 8 шт. | — | |
|
| 14 | 90016-MEA-670 | BOLT, FLANGE (8X95) | 10 шт. | — | |
|
| 15 | 90017-MEA-670 | BOLT, FLANGE (8X105) | 5 шт. | — | |
|
| 16 | 90018-MEA-670 | BOLT, FLANGE (8X115) | 1 шт. | — | |
|
| 17 | 90441-MG8-000 | WASHER, SEALING (8MM) | 2 шт. | — | |
|
| 18 | 90443-MB0-000 | WASHER, SEALING (10.2MM) | 2 шт. | — | |
|
| 19 | 90443-MJ6-000 | WASHER, NEUTRAL | 1 шт. | — | |
|
| 20 | 90690-GHB-631 | CLIP, CABLE (8MM) | 1 шт. | — | |
|
| 21 | 90701-KAE-000 | PIN, DOWEL (14X28) | 4 шт. | — | |
|
| 22 | 91106-KM1-013 | BEARING, NEEDLE (14X22X16) | 1 шт. | — | |
|
| 23 | 91203-KA4-771 | OIL SEAL (14X22X5) (NOK) | 1 шт. | — | |
|
| 24 | 91302-MAL-601 | O-RING (18.1X3.6) | 1 шт. | — | |
|
| 25 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 1 шт. | — | |
|
| 26 | 91305-MG7-003 | O-RING (5X1.7) (ARAI) | 2 шт. | — | |
|
| 27 | 92800-12000 | BOLT, DRAIN PLUG (12MM) | 2 шт. | — | |
|
| 28 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 2 шт. | — | |
|
| 29 | 94302-10160 | PIN B, DOWEL (10X16) | 2 шт. | — | |
|
| 30 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 3 шт. | — | |
|
| 31 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 2 шт. | — | |
|
| 32 | 95701-06055-00 | BOLT, FLANGE (6X55) | 2 шт. | — | |
|
| 33 | 95701-06070-00 | BOLT, FLANGE (6X70) | 3 шт. | — | |
|
| 34 | 95701-10016-00 | BOLT, FLANGE (10X16) | 2 шт. | — | |
|
