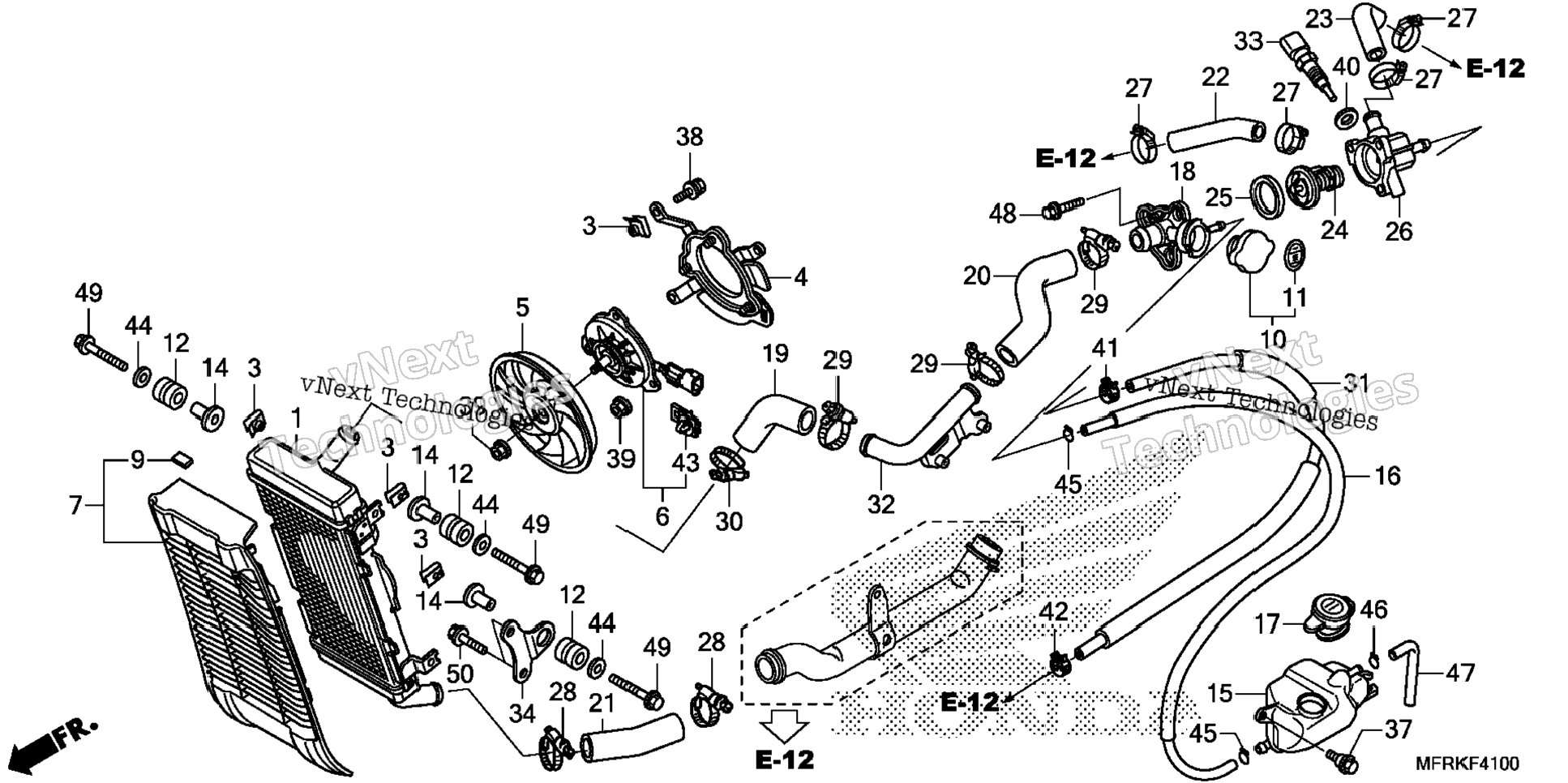

| 1 | 19010-MFR-671 | RADIATOR | 1 шт. | — | |
|
| 2 | 19014-KEA-003 | NUT, SETTING (6MM) | 6 шт. | — | |
|
| 3 | 19015-MFR-671 | SHROUD | 1 шт. | — | |
|
| 4 | 19020-MCH-A11 | FAN, COOLING | 1 шт. | — | |
|
| 5 | 19030-MFR-671 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 6 | 19032-MFR-670 | GRILLE, RADIATOR | 1 шт. | — | |
|
| 7 | 19033-MFR-670 | RUBBER, RADIATOR GRILLE | 2 шт. | — | |
|
| 8 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 9 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 10 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 3 шт. | — | |
|
| 11 | 19052-MGH-640 | COLLAR, RADIATOR MOUNTING | 3 шт. | — | |
|
| 12 | 19101-MFR-670 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 13 | 19102-MFR-670 | TUBE, RADIATOR RESERVE TANK | 1 шт. | — | |
|
| 14 | 19104-MB0-700 | CAP, RESERVE TANK | 1 шт. | — | |
|
| 15 | 19106-MFR-671 | NECK ASSY., FILLER | 1 шт. | — | |
|
| 16 | 19115-MFR-670 | HOSE A, RADIATOR (UPPER) | 1 шт. | — | |
|
| 17 | 19116-MFR-670 | HOSE B, RADIATOR (UPPER) | 1 шт. | — | |
|
| 18 | 19117-MFR-670 | HOSE, RADIATOR (LOWER) | 1 шт. | — | |
|
| 19 | 19118-MFR-670 | HOSE, FR. OUTLET WATER | 1 шт. | — | |
|
| 20 | 19119-MFR-670 | HOSE, RR. OUTLET WATER | 1 шт. | — | |
|
| 21 | 19300-MCH-A00 | THERMOSTAT ASSY. | 1 шт. | — | |
|
| 22 | 19305-KV3-010 | RUBBER, THERMOSTAT | 1 шт. | — | |
|
| 23 | 19311-MFR-670 | CASE, THERMOSTAT | 1 шт. | — | |
|
| 24 | 19506-KS6-700 | CLAMP B, WATER HOSE | 4 шт. | — | |
|
| 25 | 19509-MM5-003 | CLAMP, R. RADIATOR HOSE | 2 шт. | — | |
|
| 26 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 3 шт. | — | |
|
| 27 | 19516-MER-D10 | CLAMP, HOSE | 1 шт. | — | |
|
| 28 | 19531-MFR-A00 | HOSE, BYPASS | 1 шт. | — | |
|
| 29 | 19570-MFR-670 | PIPE D, WATER | 1 шт. | — | |
|
| 30 | 37870-KRJ-901 | SENSOR ASSY., WATER TEMPERATURE | 1 шт. | — | |
|
| 31 | 50214-MFR-670 | STAY, RADIATOR (LOWER) | 1 шт. | — | |
|
| 32 | 90113-GF0-000 | BOLT, FLANGE (6MM) | 1 шт. | — | |
|
| 33 | 90120-GHB-611 | BOLT-WASHER (6X14) | 3 шт. | — | |
|
| 34 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 шт. | — | |
|
| 35 | 90454-MC7-000 | WASHER, SPECIAL (12MM) | 1 шт. | — | |
|
| 36 | 90652-MBB-D41 | CLAMP, TUBE (17.5) | 1 шт. | — | |
|
| 37 | 91405-PD1-004 | CLAMP, TUBE (D12) (FRAME NO.) | 1 шт. | — | |
|
| 38 | 91565-SEL-003 | CLIP, CONNECTOR (BLACK) (Honda Code 7386865) | 1 шт. | — | |
|
| 39 | 94103-06700 | WASHER, PLAIN (6MM) | 3 шт. | — | |
|
| 40 | 95002-02120 | CLIP, TUBE (B12) | 2 шт. | — | |
|
| 41 | 95002-70000 | CLIP, TUBE (C11) | 1 шт. | — | |
|
| 42 | 95005-70003-30M | BULK HOSE, VACUUM (7X3000) (7X730) | 1 шт. | — | |
|
| 43 | 95701-06018-08 | BOLT, FLANGE (6X18) | 3 шт. | — | |
|
| 44 | 95801-06028-07 | BOLT, FLANGE (6X28) | 3 шт. | — | |
|
| 45 | 95701-08018-07 | BOLT, FLANGE (8X18) | 2 шт. | — | |
|
| 46 | 95801-08018-07 | BOLT, FLANGE (8X18) | 2 шт. | — | |
|
