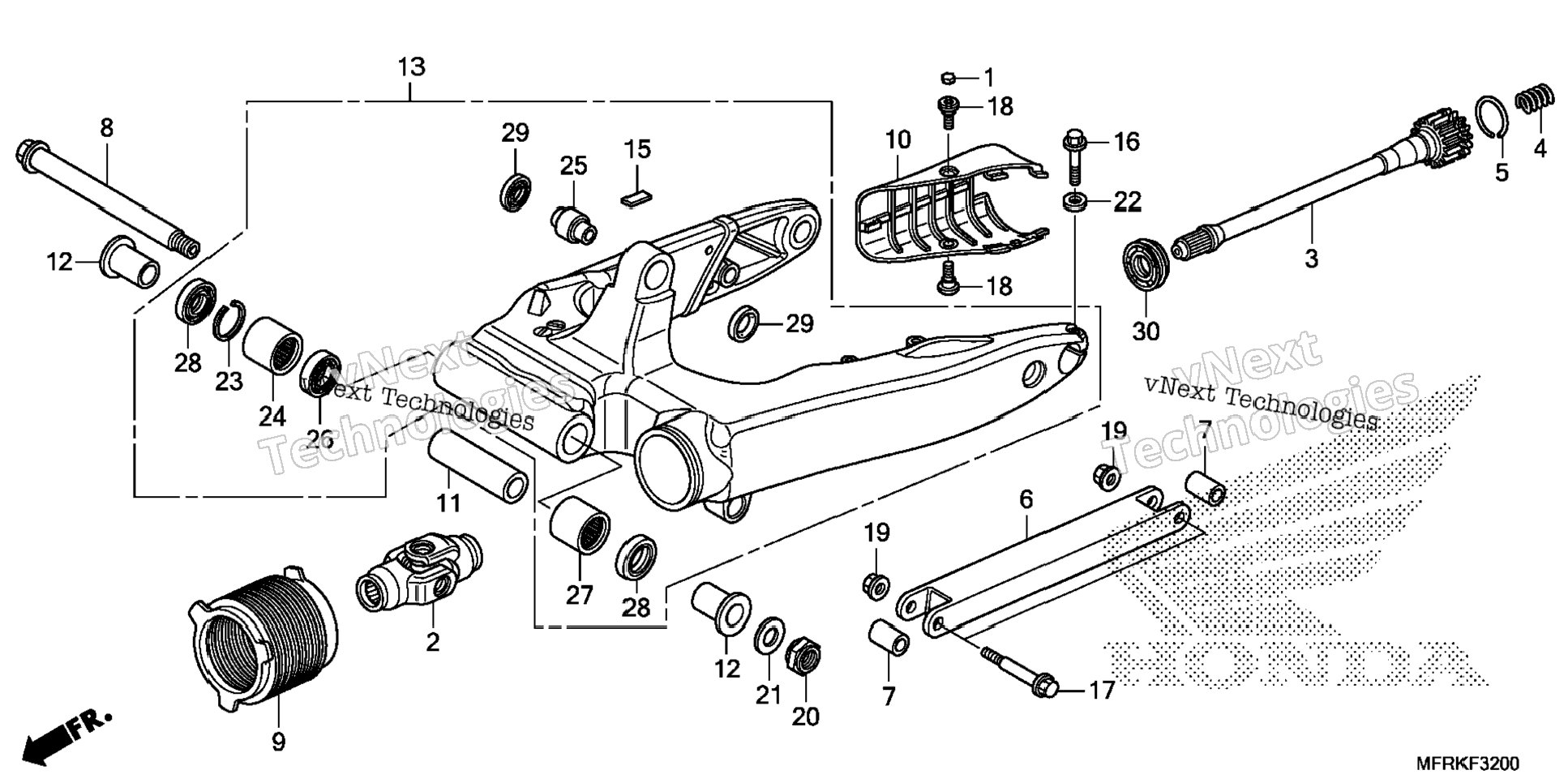

| 1 | 12392-MJ0-000 | PLUG, HEX. (6MM) | 1 шт. | — | |
|
| 2 | 40200-MFR-670 | JOINT, YOKE | 1 шт. | — | |
|
| 3 | 40201-MFR-670 | SHAFT, PROPELLER | 1 шт. | — | |
|
| 4 | 40215-ME9-003 | SPRING, PROPELLER SHAFT | 1 шт. | — | |
|
| 5 | 40221-MB0-000 | RING, STOPPER | 1 шт. | — | |
|
| 6 | 41610-MFR-670 | LINK, TORQUE | 1 шт. | — | |
|
| 7 | 41615-MFR-670 | BUSH, TORQUE LINK | 2 шт. | — | |
|
| 8 | 52101-MFR-670 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 9 | 52104-MFR-670 | BOOT, JOINT | 1 шт. | — | |
|
| 10 | 52105-MFR-670 | COVER, PROPELLER SHAFT | 1 шт. | — | |
|
| 11 | 52141-MFR-670 | COLLAR, CENTER PIVOT DISTANCE | 1 шт. | — | |
|
| 12 | 52142-MFR-670 | COLLAR, PIVOT DISTANCE | 2 шт. | — | |
|
| 13 | 52200-MFR-670ZJ | SWINGARM SUB-ASSY., RR. *NH1* (BLACK) | 1 шт. | — | |
|
| 14 | 83512-MAN-600 | TAPE, SIDE COVER PROTECTOR | 1 шт. | — | |
|
| 15 | 90103-MFR-670 | BOLT, FLANGE (8X35) | 1 шт. | — | |
|
| 16 | 90106-MFR-670 | BOLT, FLANGE (10X50) | 2 шт. | — | |
|
| 17 | 90108-MFR-670 | BOLT, SOCKET (6X12) | 2 шт. | — | |
|
| 18 | 90304-KAE-871 | NUT, U (10MM) | 2 шт. | — | |
|
| 19 | 90306-MCS-G01 | NUT, U (18MM) | 1 шт. | — | |
|
| 20 | 90432-MCS-G00 | WASHER, SPECIAL (18MM) | 1 шт. | — | |
|
| 21 | 90501-MFR-670 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 22 | 90651-MEW-920 | CIRCLIP (INNER) (37) | 1 шт. | — | |
|
| 23 | 91071-MBW-E11 | BEARING, NEEDLE | 1 шт. | — | |
|
| 24 | 91071-MEC-003 | BEARING, SPHERICAL (10MM) | 1 шт. | — | |
|
| 25 | 91071-MEW-921 | BEARING, RADIAL BALL (20X37X9) | 1 шт. | — | |
|
| 26 | 91071-MR7-003 | BEARING, NEEDLE | 1 шт. | — | |
|
| 27 | 91202-MR7-003 | DUST SEAL (28X37X4) | 2 шт. | — | |
|
| 28 | 91254-MBR-003 | DUST SEAL (16X26X2.5) | 2 шт. | — | |
|
| 29 | 91261-ME9-005 | OIL SEAL (27X43X7) | 1 шт. | — | |
|
