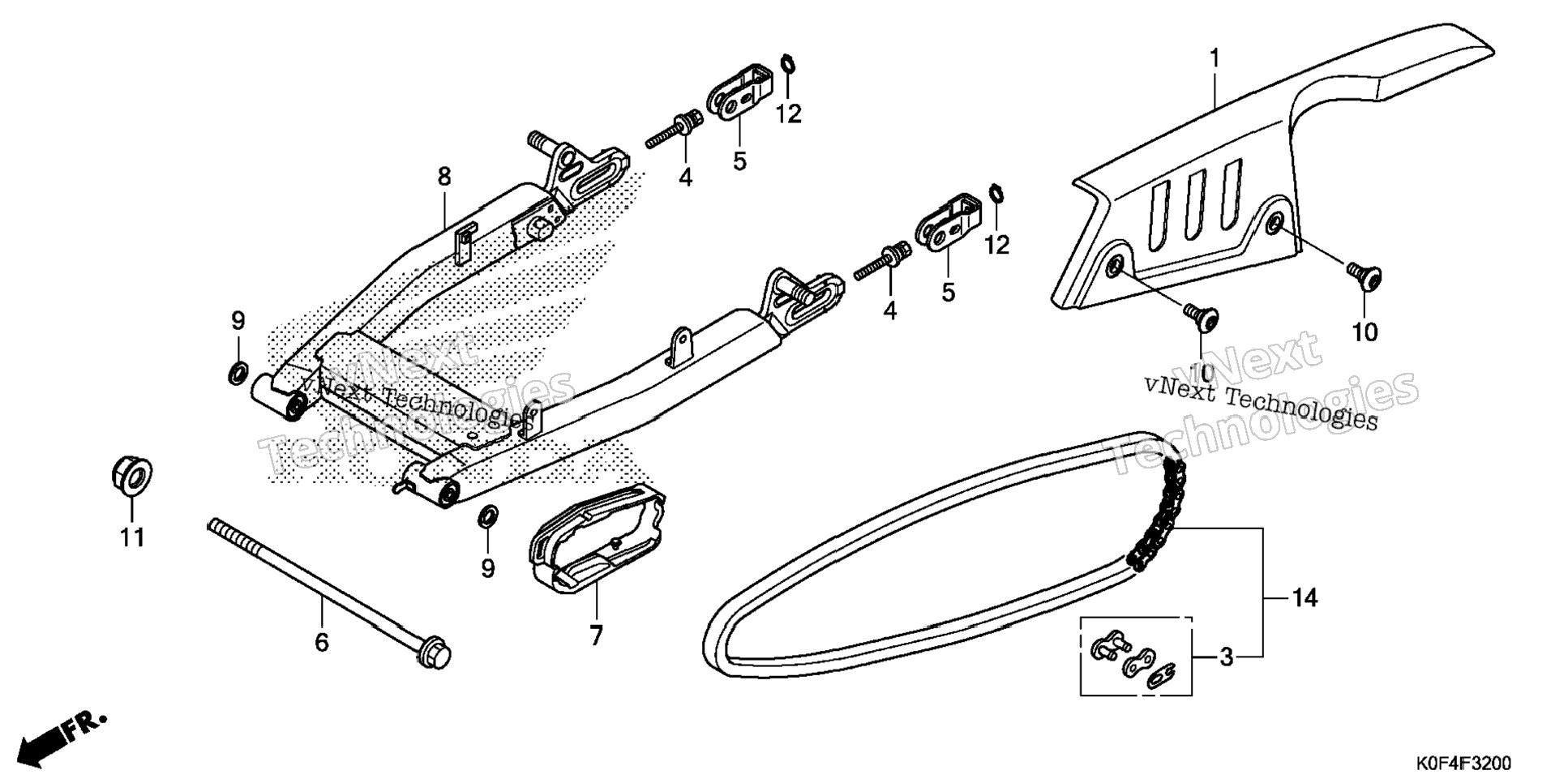

| 1 | 40510-K0F-T00 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40531-KWV-003 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
| 3 | 40542-K0F-T00 | BOLT, CHAIN ADJUSTING | 2 шт. | — | |
|
| 4 | 40543-K0F-T00 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 5 | 52101-K0F-T00 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 6 | 52170-K0F-T00 | SLIDER, CHAIN | 1 шт. | — | |
|
| 7 | 52200-K0F-T00ZB | SWINGARM SUB-ASSY., RR. *R376P* (PEARL NEBULA RED) | 1 шт. | — | |
|
| 8 | 52200-K0F-T00ZD | SWINGARM SUB-ASSY., RR. *B231P* (PEARL GLITTERING BLUE) | 1 шт. | — | |
|
| 9 | 90122-KWB-600 | WASHER, PIVOT BOLT | 2 шт. | — | |
|
| 10 | 90133-KPP-T00 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 11 | 90306-KWN-701 | NUT, U (12MM) | 1 шт. | — | |
|
| 12 | 94511-10000 | CIRCLIP (OUTER) (10MM) | 2 шт. | — | |
|
| 13 | 40530-K0F-D11 | CHAIN, DRIVE (DID420D2-98RB) | 1 шт. | — | |
|
