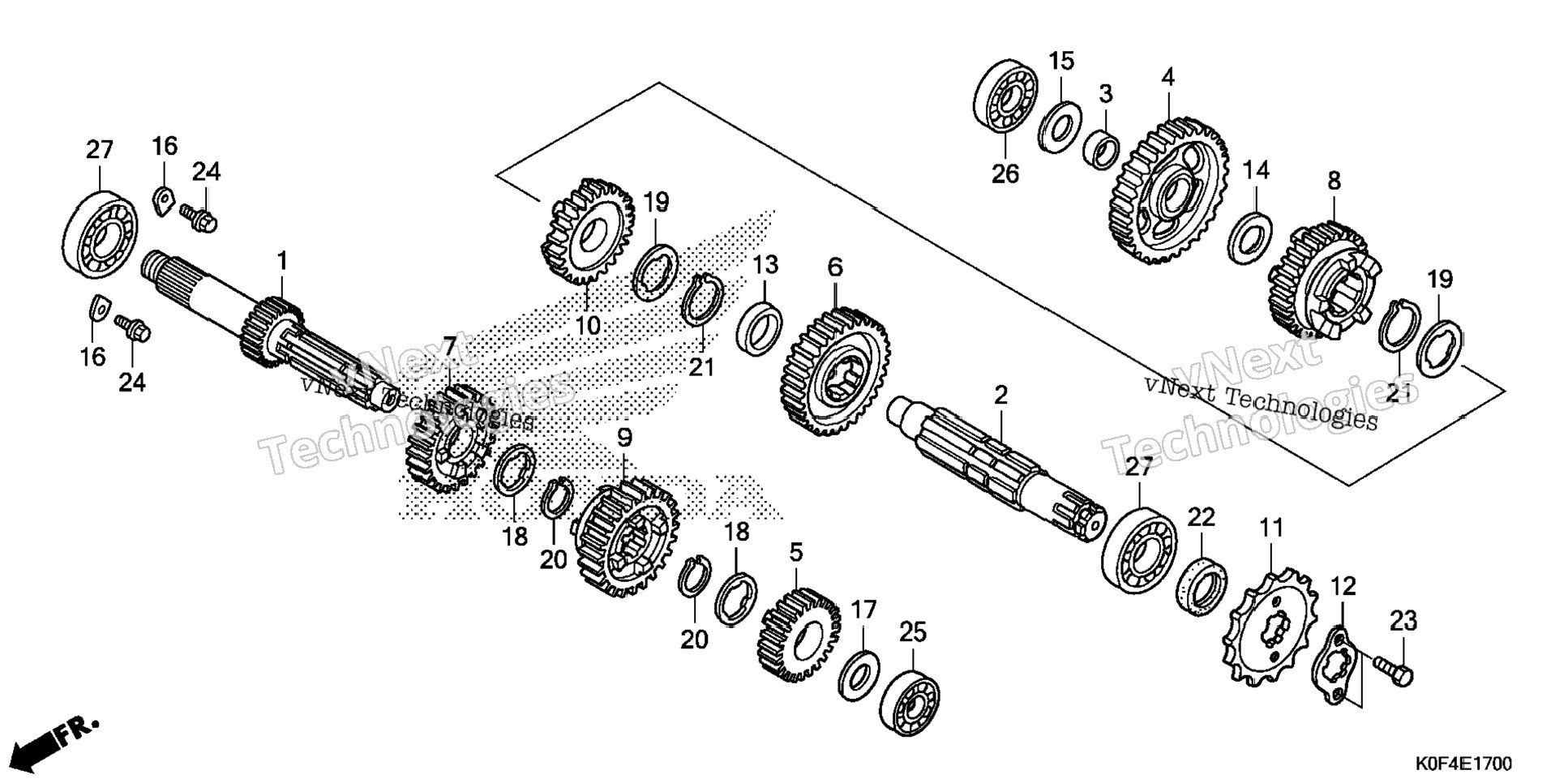

| 1 | 23211-KPH-900 | MAINSHAFT (14T) | 1 шт. | — | |
|
| 2 | 23221-KPH-900 | COUNTERSHAFT | 1 шт. | — | |
|
| 3 | 23415-KPH-900 | BUSH (15MM) | 1 шт. | — | |
|
| 4 | 23421-KPH-900 | GEAR, COUNTERSHAFT FIRST (35T) | 1 шт. | — | |
|
| 5 | 23431-KPH-700 | GEAR, MAINSHAFT SECOND (20T) | 1 шт. | — | |
|
| 6 | 23441-KPH-900 | GEAR, COUNTERSHAFT SECOND (31T) | 1 шт. | — | |
|
| 7 | 23451-KPH-700 | GEAR, MAINSHAFT THIRD (20T) | 1 шт. | — | |
|
| 8 | 23461-KPH-900 | GEAR, COUNTERSHAFT THIRD (23T) | 1 шт. | — | |
|
| 9 | 23471-K41-N00 | GEAR, MAINSHAFT FOURTH (26T) | 1 шт. | — | |
|
| 10 | 23481-K41-N00 | GEAR, COUNTERSHAFT FOURTH (24T) | 1 шт. | — | |
|
| 11 | 23801-K26-900 | SPROCKET, DRIVE (15T) | 1 шт. | — | |
|
| 12 | 23802-GN5-910 | PLATE, FIXING | 1 шт. | — | |
|
| 13 | 23911-KPG-T00 | COLLAR (5.1MM) | 1 шт. | — | |
|
| 14 | 90412-187-000 | WASHER, THRUST (15MM) | 1 шт. | — | |
|
| 15 | 90412-KPH-900 | WASHER, SPECIAL (12X23) | 1 шт. | — | |
|
| 16 | 90441-KRM-840 | PLATE, BEARING HOLDER | 2 шт. | — | |
|
| 17 | 90452-KGH-900 | WASHER, SPECIAL (12MM) | 1 шт. | — | |
|
| 18 | 90452-KPH-C00 | WASHER | 1 шт. | — | |
|
| 19 | 90461-115-000 | WASHER, SPLINE (17MM) | 2 шт. | — | |
|
| 20 | 90461-GB4-770 | WASHER, SPLINE (20X1.2) | 2 шт. | — | |
|
| 21 | 90601-001-000 | CIRCLIP (OUTER) (17MM) | 2 шт. | — | |
|
| 22 | 90605-200-000 | SET-RING (20MM) | 2 шт. | — | |
|
| 23 | 91204-KPH-902 | OIL SEAL (17X30X5) (NOK) | 1 шт. | — | |
|
| 24 | 92101-06010-0A | BOLT, HEX. (6X10) | 2 шт. | — | |
|
| 25 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 26 | 96100-60010-00 | BEARING, RADIAL BALL (6001) | 1 шт. | — | |
|
| 27 | 96100-62010-00 | BEARING, RADIAL BALL (6201) | 1 шт. | — | |
|
| 28 | 96100-62030-00 | BEARING, RADIAL BALL (6203) | 2 шт. | — | |
|
