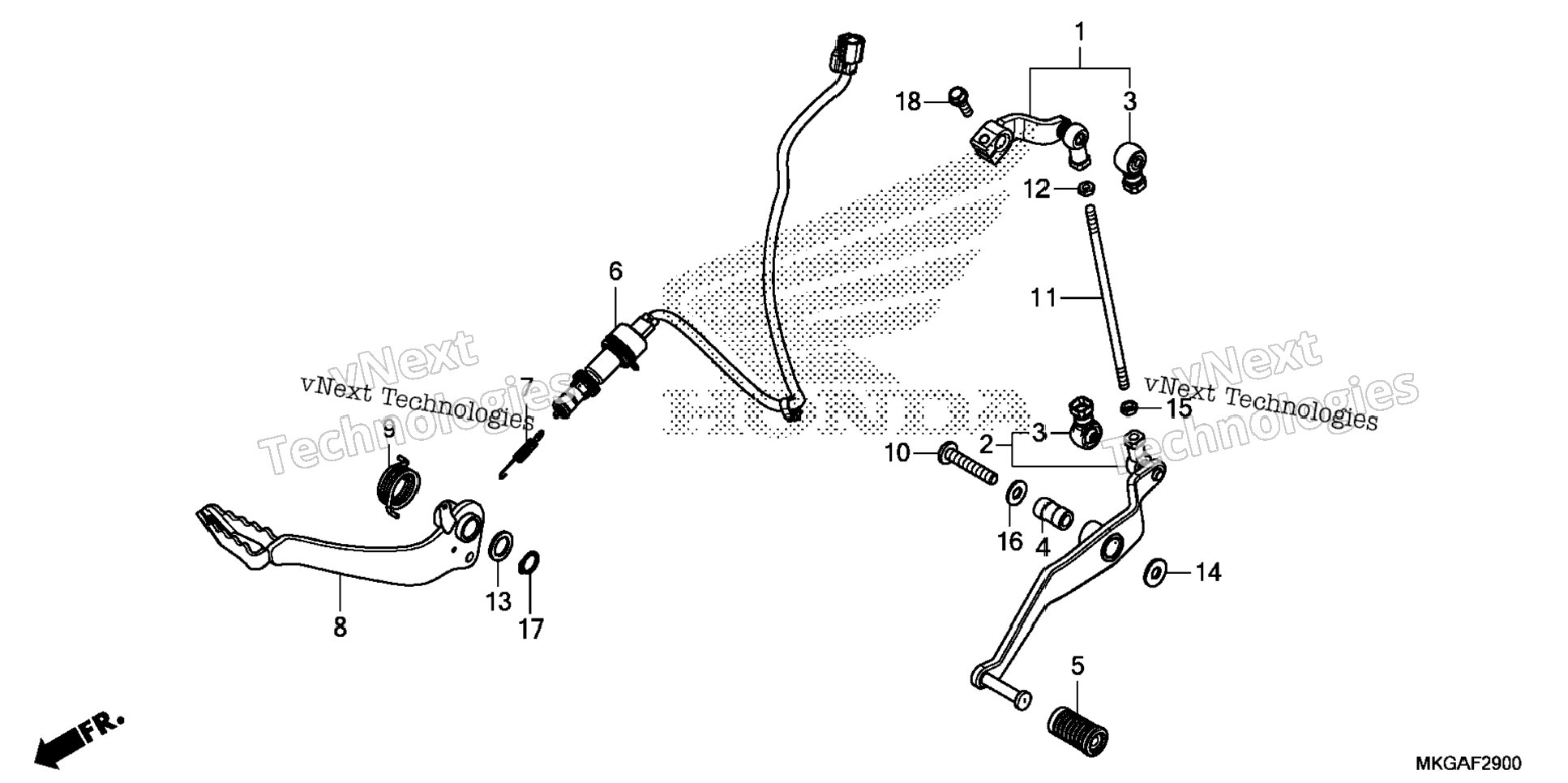

| 1 | 24710-MGZ-J00 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24710-MGZ-305 | ARM, GEARSHIFT (COO) | 1 шт. | — | |
|
| 3 | 24720-MKG-A00 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 4 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 5 | 24731-K87-A00 | COLLAR, GEARSHIFT PEDAL PIVOT | 1 шт. | — | |
|
| 6 | 24781-KR3-770 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 7 | 35350-K87-A01 | SWITCH ASSY., RR. STOP (TOYO DENSO) | 1 шт. | — | |
|
| 8 | 35357-K26-900 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 9 | 46501-K87-A30 | PEDAL, RR. BRAKE | 1 шт. | — | |
|
| 10 | 46514-K87-A00 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 11 | 90110-K87-A00 | BOLT, SOCKET SPECIAL (8X45) | 1 шт. | — | |
|
| 12 | 90165-MKG-A00 | BOLT, TIE ROD | 1 шт. | — | |
|
| 13 | 90301-MGZ-J00 | NUT, SPECIAL (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 14 | 90451-GBL-870 | WASHER (14MM) | 1 шт. | — | |
|
| 15 | 90526-K87-A00 | WASHER (8.5X20) | 1 шт. | — | |
|
| 16 | 94001-06070-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 17 | 94101-08000 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 18 | 94511-14000 | CIRCLIP (OUTER) (14MM) | 1 шт. | — | |
|
| 19 | 95701-06020-07 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
