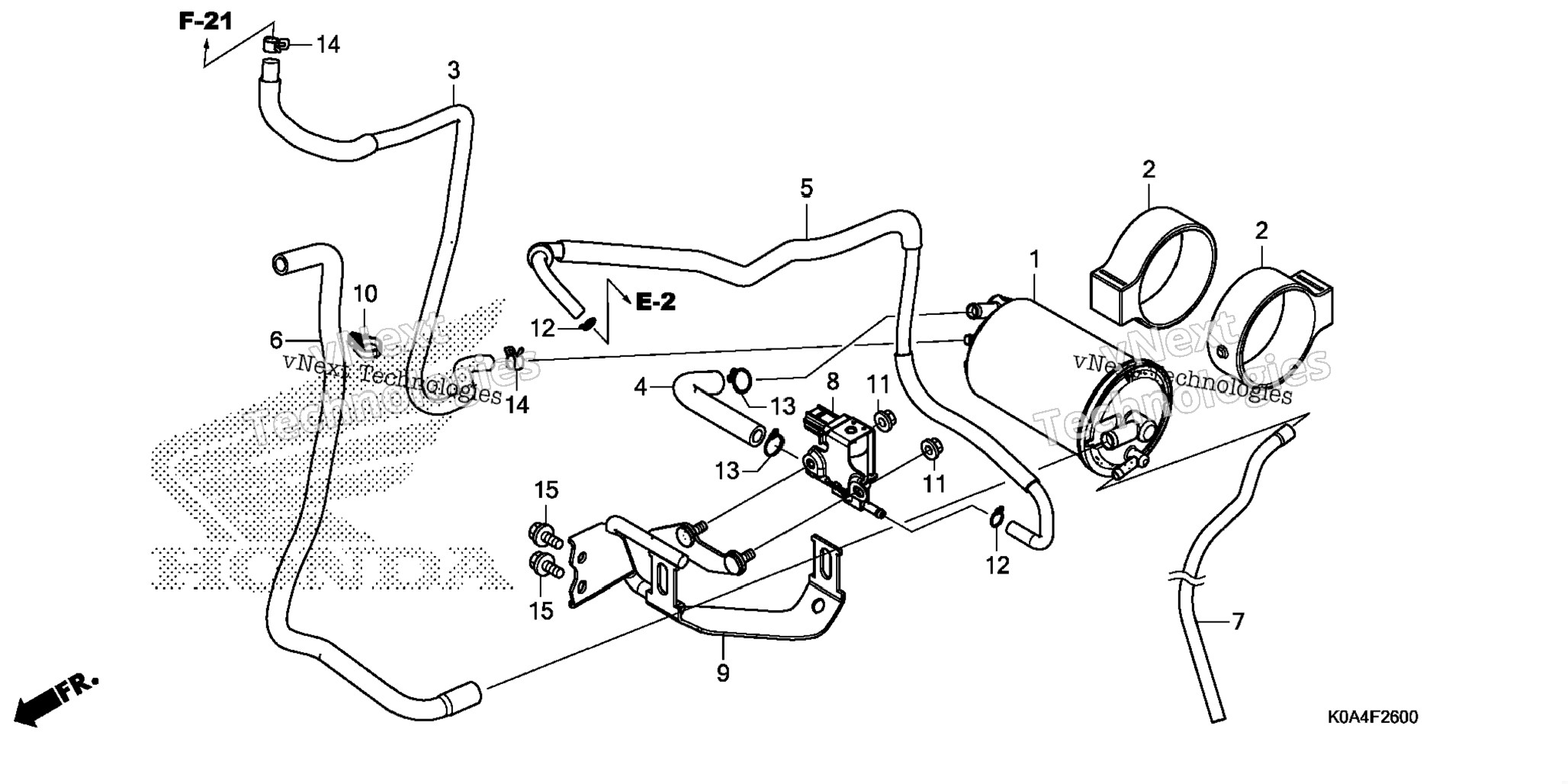

| 1 | 17310-K98-E01 | CANISTER | 1 шт. | — | |
|
| 2 | 17311-K35-V00 | RUBBER, CANISTER MOUNT | 2 шт. | — | |
|
| 3 | 17413-K0A-A00 | TUBE B, CHARGE | 1 шт. | — | |
|
| 4 | 17414-K98-E00 | TUBE A, PURGE | 1 шт. | — | |
|
| 5 | 17415-K0A-E10 | TUBE B, PURGE | 1 шт. | — | |
|
| 6 | 17416-K98-E00 | TUBE, AIR | 1 шт. | — | |
|
| 7 | 17417-K98-E00 | TUBE, DRAIN | 1 шт. | — | |
|
| 8 | 36162-KPN-A71 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 9 | 50185-K98-J00 | BRACKET, CANISTER | 1 шт. | — | |
|
| 10 | 90659-734-K51 | CLIP, HARNESS (NIKOFU) | 1 шт. | — | |
|
| 11 | 94050-05070 | NUT, FLANGE (5MM) | 2 шт. | — | |
|
| 12 | 95002-02070 | CLIP, TUBE (B7) CLIP, TUBE (B6.5) | 2 шт. | — | |
|
| 13 | 95002-02120 | CLIP, TUBE (B12) | 2 шт. | — | |
|
| 14 | 95002-40800-08 | CLAMP, TUBE (D8) | 2 шт. | — | |
|
| 15 | 95701-06012-07 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
