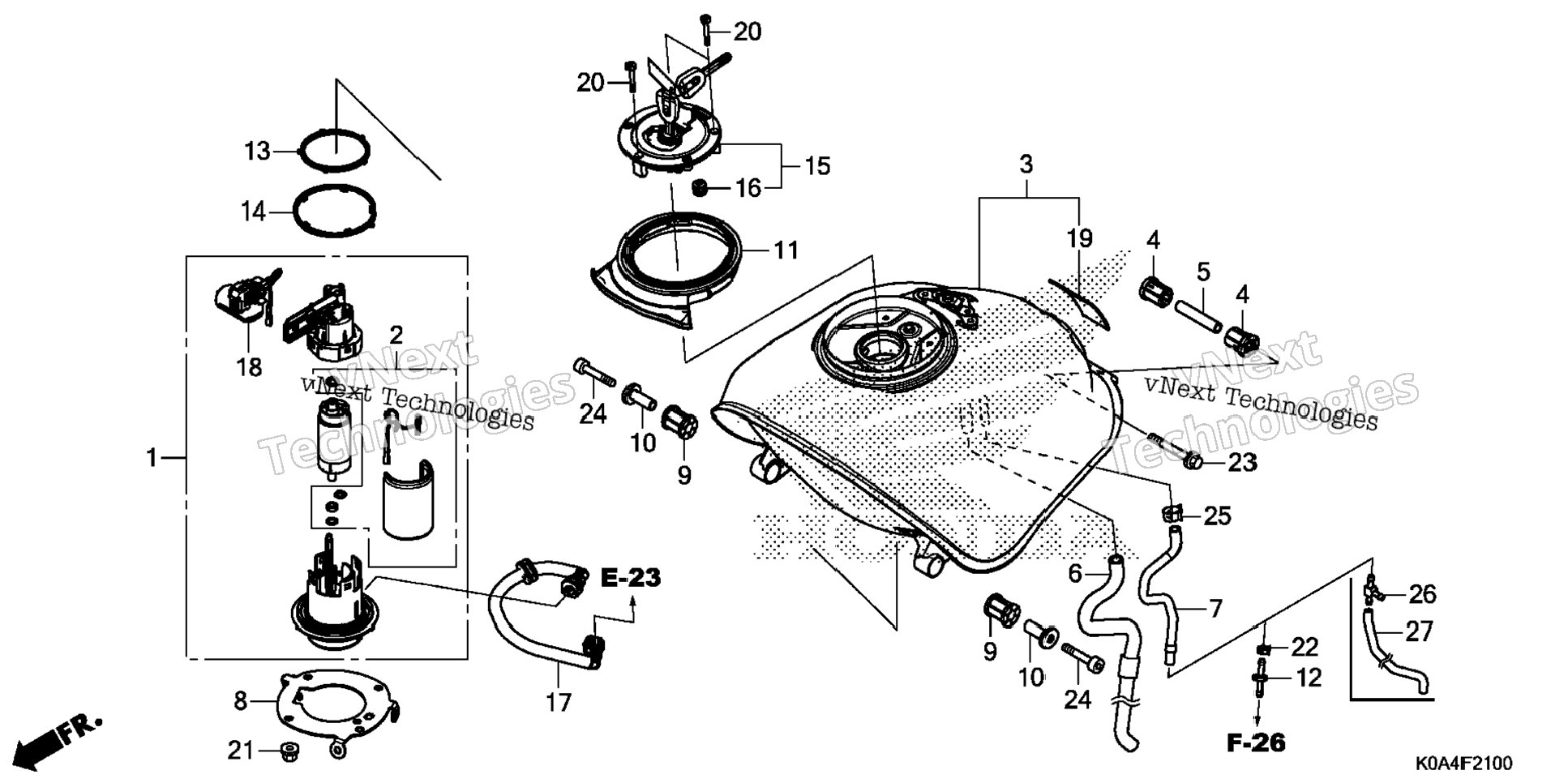

| 1 | 16700-K94-T01 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16707-K94-T01 | FILTER SET | 1 шт. | — | |
|
| 3 | 17500-K0A-E10 | TANK ASSY., FUEL | 1 шт. | — | |
|
| 4 | 17506-K94-T00 | CUSHION, RR. FUEL TANK PIVOT | 2 шт. | — | |
|
| 5 | 17507-KZZ-900 | COLLAR, TANK SET | 1 шт. | — | |
|
| 6 | 17525-K94-T00 | TUBE, FUEL DRAIN | 1 шт. | — | |
|
| 7 | 17526-K0A-A00 | TUBE A, CHARGE | 1 шт. | — | |
|
| 8 | 17527-K0A-E10 | PLATE, SETTING | 1 шт. | — | |
|
| 9 | 17534-K94-T00 | RUBBER, FR. TANK MOUNTING | 2 шт. | — | |
|
| 10 | 17538-KZZ-900 | COLLAR | 2 шт. | — | |
|
| 11 | 17545-K94-T00 | SEAL, FUEL TANK | 1 шт. | — | |
|
| 12 | 17561-K98-E00 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 13 | 17572-GHB-613 | GASKET, FUEL PUMP | 1 шт. | — | |
|
| 14 | 17573-KPN-A71 | DUST SEAL | 1 шт. | — | |
|
| 15 | 17620-MJE-D02 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 16 | 17621-MGP-D61 | SEAL, BREATHER | 1 шт. | — | |
|
| 17 | 17650-K0A-E11 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 18 | 37800-K94-T01 | FUEL UNIT | 1 шт. | — | |
|
| 19 | 81257-K26-B00 | RUBBER, PROTECTOR | 1 шт. | — | |
|
| 20 | 90110-MGP-D60 | BOLT, SOCKET (4X24) (SUS) | 3 шт. | — | |
|
| 21 | 94050-06000 | NUT, FLANGE (6MM) | 4 шт. | — | |
|
| 22 | 95002-40800-08 | CLAMP, TUBE (D8) | 1 шт. | — | |
|
| 23 | 96001-06065-00 | BOLT, FLANGE (6X65) | 1 шт. | — | |
|
| 24 | 96600-06040-08 | BOLT, SOCKET (6X40) | 2 шт. | — | |
|
| 25 | 95002-41000-08 | CLAMP, TUBE (D10) | 0 шт. | — | |
|
