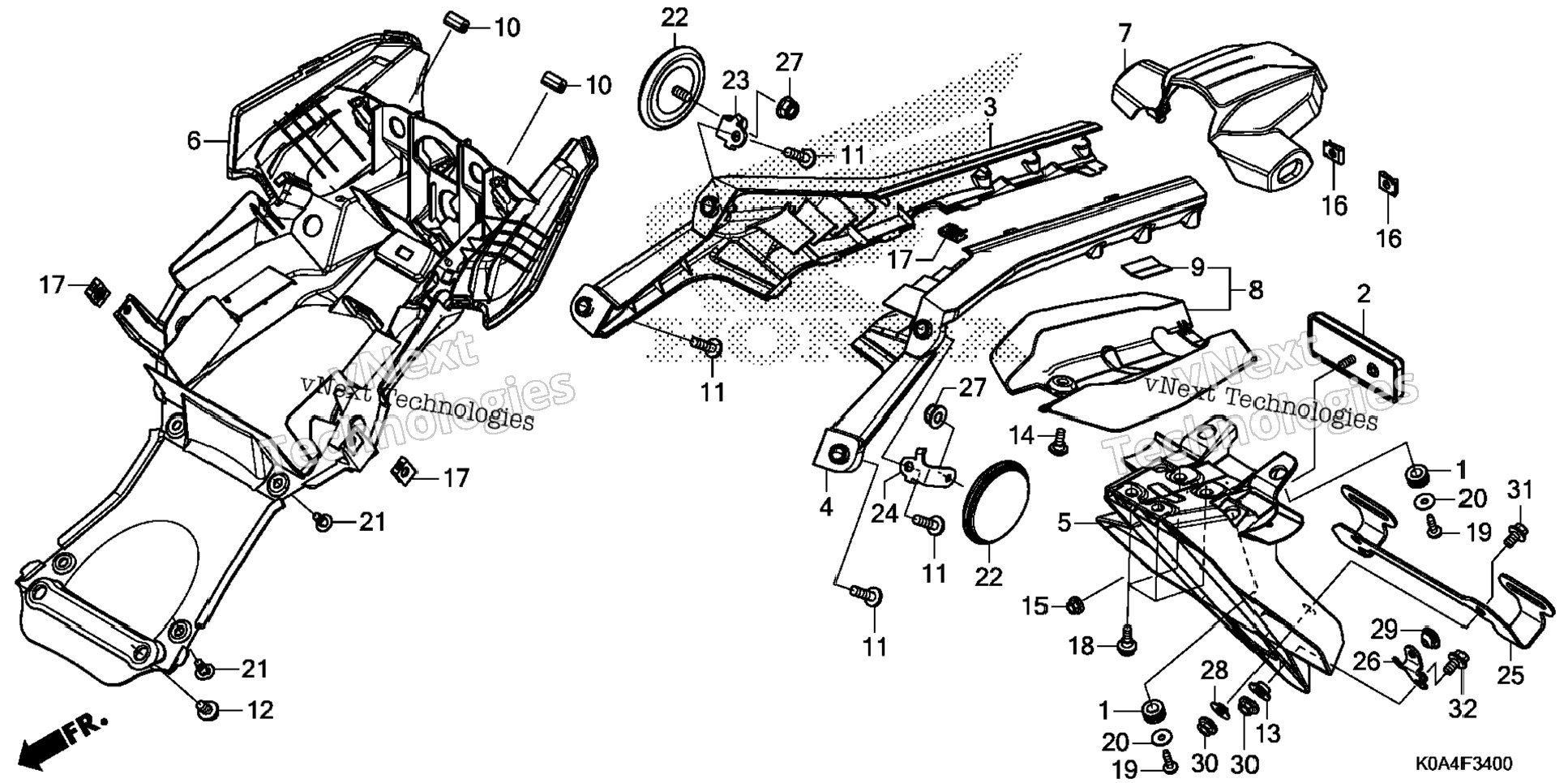

| 1 | 19639-GBL-000 | RUBBER, MOUNTING | 4 шт. | — | |
|
| 2 | 33741-KWN-901 | REFLECTOR, REFLEX | 1 шт. | — | |
|
| 3 | 80111-K94-T00 | STAY, R. RR. FENDER | 1 шт. | — | |
|
| 4 | 80112-K94-T00 | STAY, L. RR. FENDER | 1 шт. | — | |
|
| 5 | 80121-K94-T00 | FENDER A, RR. | 1 шт. | — | |
|
| 6 | 80131-K0A-E10 | FENDER B, RR. | 1 шт. | — | |
|
| 7 | 80141-K94-T00 | COVER, LICENSE LIGHT | 1 шт. | — | |
|
| 8 | 80150-K0A-E10 | COVER SET, RR. FENDER (LOWER) | 1 шт. | — | |
|
| 9 | 80152-K0A-E10 | RUBBER, CUSHION | 1 шт. | — | |
|
| 10 | 83515-KPH-700 | RUBBER, TAIL COVER | 2 шт. | — | |
|
| 11 | 90120-K26-900 | BOLT, SPECIAL (6X25) | 4 шт. | — | |
|
| 12 | 90132-KPP-T00 | SCREW, PAN (6X10) | 2 шт. | — | |
|
| 13 | 90134-KPP-T00 | SCREW, PAN (5X14) | 1 шт. | — | |
|
| 14 | 90301-KWN-901 | NUT, U (5MM) | 1 шт. | — | |
|
| 15 | 90302-SA4-003 | NUT, SPRING (4MM) | 2 шт. | — | |
|
| 16 | 90677-KAN-T00 | NUT, CLIP (5MM) | 3 шт. | — | |
|
| 17 | 91509-KWA-940 | SCREW, PAN (5X13.5) | 4 шт. | — | |
|
| 18 | 93903-24480 | SCREW, TAPPING (4X16) | 4 шт. | — | |
|
| 19 | 94103-04700 | WASHER, PLAIN (4MM) | 4 шт. | — | |
|
| 20 | 90116-K0A-E11 | RIVET, PUSH (6MM) | 4 шт. | — | |
|
| 21 | 33741-HB9-641 | REFLECTOR, RR. REFLEX (RED) | 2 шт. | — | |
|
| 22 | 80101-K0A-A00 | STAY, R. REFLECTOR | 1 шт. | — | |
|
| 23 | 80102-K0A-A00 | STAY, L. REFLECTOR | 1 шт. | — | |
|
| 24 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 2 шт. | — | |
|
