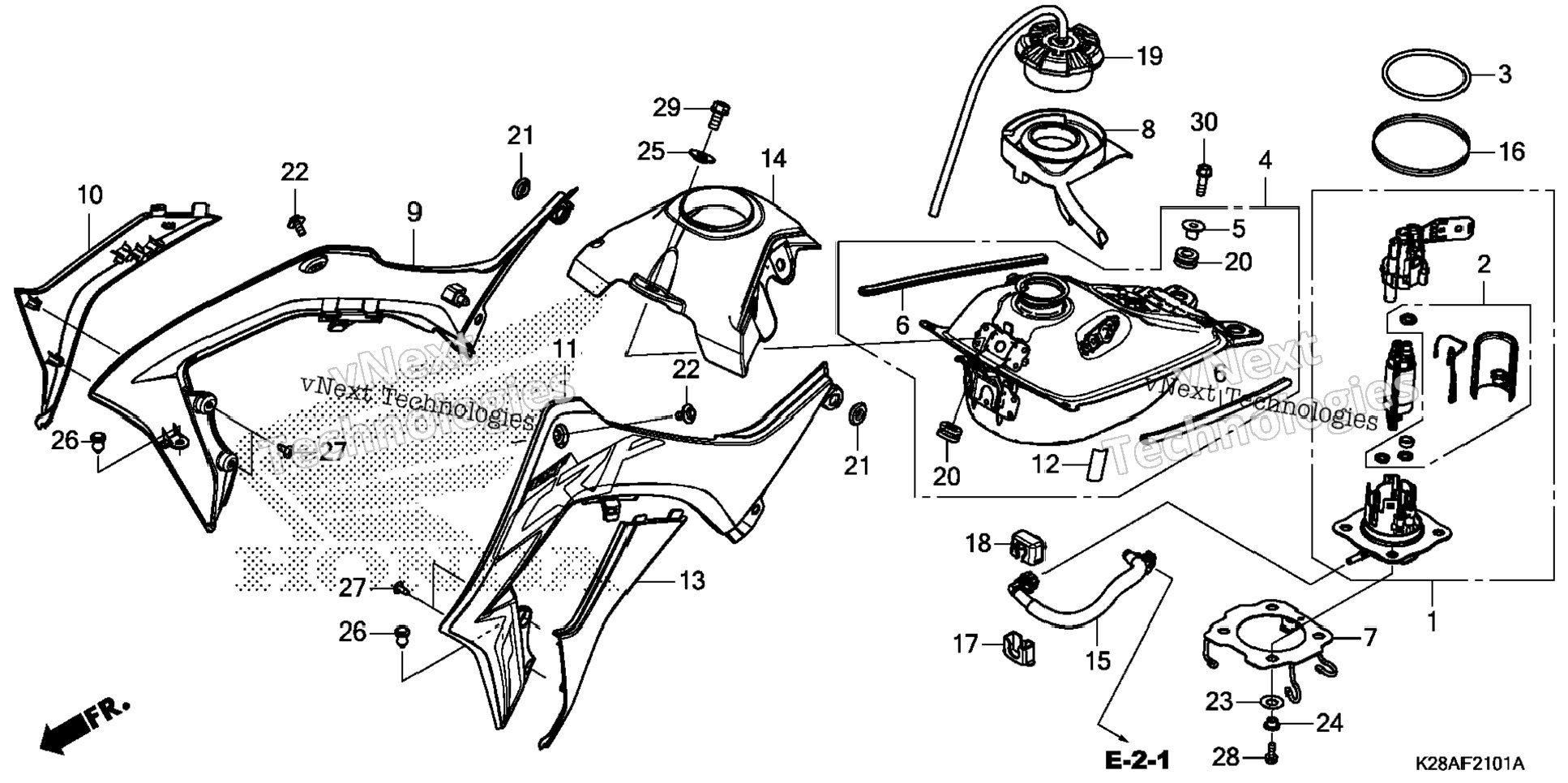

| 1 | 16700-K28-A61 | PUMP UNIT ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16707-K45-N01 | FILTER SET | 1 шт. | — | |
|
| 3 | 16711-K99-A01 | O-RING (3.7X62.9) | 1 шт. | — | |
|
| 4 | 17500-K28-A60 | TANK ASSY., FUEL | 1 шт. | — | |
|
| 5 | 17509-KYK-910 | COLLAR, TANK MOUNT | 2 шт. | — | |
|
| 6 | 17515-MJE-D00 | TRIM, FUEL TANK | 2 шт. | — | |
|
| 7 | 17527-K28-A60 | PLATE, SETTING | 1 шт. | — | |
|
| 8 | 17530-K28-A60 | TRAY, FUEL | 1 шт. | — | |
|
| 9 | 17540-K28-A60ZA | SHROUD SET A, R. TANK (TYPE1) (WL) | 1 шт. | — | |
|
| 10 | 17546-K28-A60 | SHROUD B, R. | 1 шт. | — | |
|
| 11 | 17550-K28-A60ZA | SHROUD SET A, L. TANK (TYPE1) (WL) | 1 шт. | — | |
|
| 12 | 17556-K28-910 | FILM, PROTECTOR | 1 шт. | — | |
|
| 13 | 17556-K28-A60 | SHROUD B, L. | 1 шт. | — | |
|
| 14 | 17560-K28-A60 | COVER, CENTER TANK | 1 шт. | — | |
|
| 15 | 17571-K28-A61 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 16 | 17574-K99-A01 | DUST SEAL | 1 шт. | — | |
|
| 17 | 17575-K99-A00 | COVER, FUEL CONNECTOR | 1 шт. | — | |
|
| 18 | 17576-KRN-A90 | RUBBER, FUEL CONNECTOR | 1 шт. | — | |
|
| 19 | 17620-K28-M21 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 20 | 50329-KYA-B00 | RUBBER, RR. CARRIER MOUNTING | 3 шт. | — | |
|
| 21 | 83551-376-000 | GROMMET, SIDE COVER | 2 шт. | — | |
|
| 22 | 90126-K99-A00 | BOLT, SPECIAL (6MM) | 2 шт. | — | |
|
| 23 | 90502-MEN-A30 | WASHER, CONICAL SPRING FUEL PUMP | 4 шт. | — | |
|
| 24 | 90503-K99-A00 | COLLAR, FUEL PUMP | 4 шт. | — | |
|
| 25 | 90504-K28-A60 | COLLAR, FR. TANK | 1 шт. | — | |
|
| 26 | 90653-HC4-900 | CLIP, SPLASH GUARD (Honda Code 3795994) | 2 шт. | — | |
|
| 27 | 93913-24120 | SCREW, TAPPING (4X10) | 4 шт. | — | |
|
| 28 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 4 шт. | — | |
|
| 29 | 95701-08016-00 | BOLT, FLANGE (8X16) | 1 шт. | — | |
|
| 30 | 95701-08025-00 | BOLT, FLANGE (8X25) | 2 шт. | — | |
|
