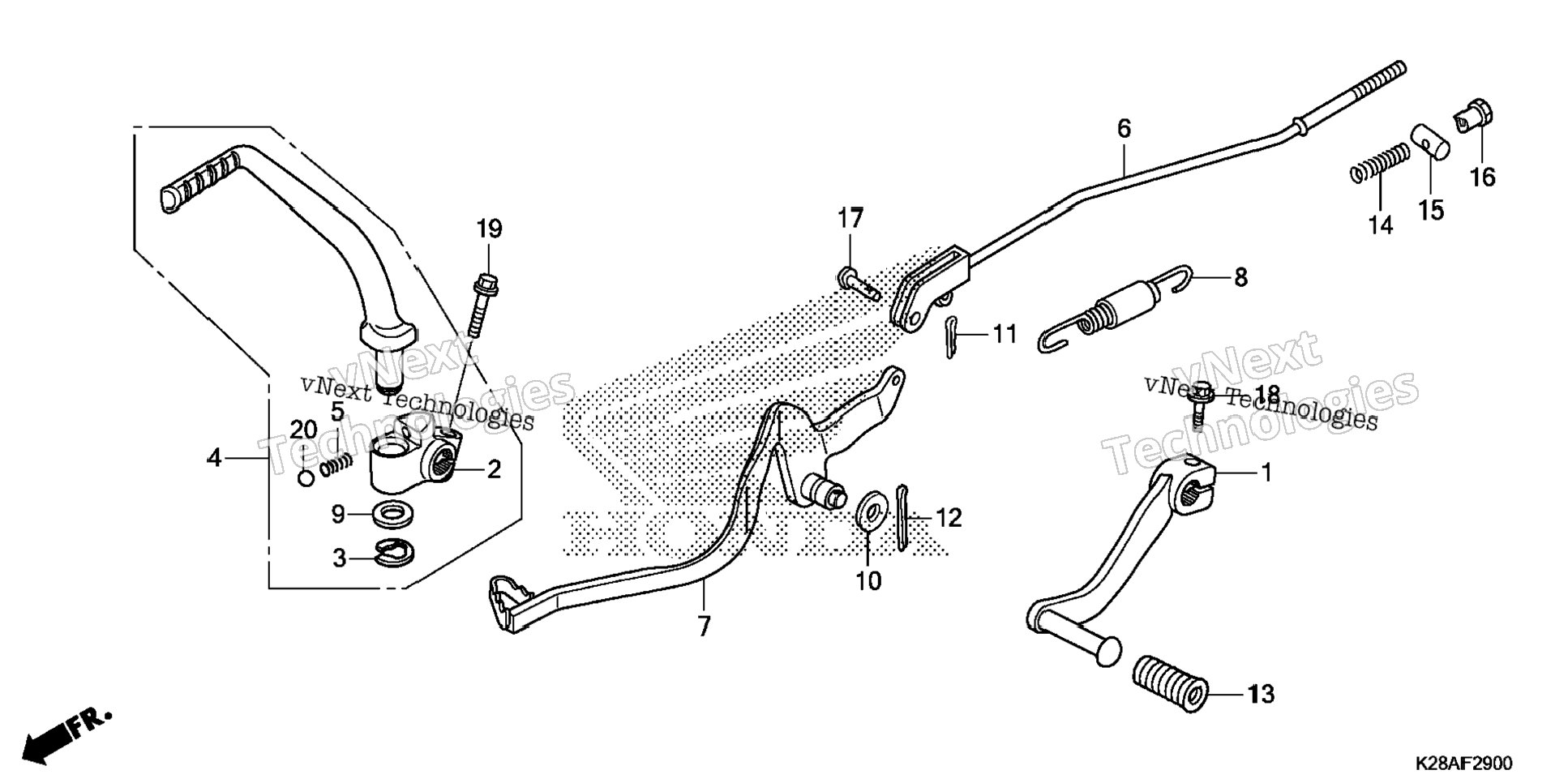

| 1 | 24701-K28-305 | PEDAL, GEARSHIFT (COO) | 1 шт. | — | |
|
| 2 | 24701-K28-910 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 3 | 28241-K28-910 | JOINT, KICK ARM | 1 шт. | — | |
|
| 4 | 28293-333-000 | CLIP, KICK STARTER ARM | 1 шт. | — | |
|
| 5 | 28300-K28-305 | ARM ASSY., KICK STARTER (COO) | 1 шт. | — | |
|
| 6 | 28300-K28-910 | ARM ASSY., KICK STARTER | 1 шт. | — | |
|
| 7 | 28333-KK0-000 | SPRING, KICK STARTER | 1 шт. | — | |
|
| 8 | 43451-K28-910 | ROD, RR. BRAKE | 1 шт. | — | |
|
| 9 | 46500-K28-305 | PEDAL, BRAKE (COO) | 1 шт. | — | |
|
| 10 | 46500-K28-910 | PEDAL, BRAKE | 1 шт. | — | |
|
| 11 | 46513-KRH-900 | SPRING SET, BRAKE PEDAL | 1 шт. | — | |
|
| 12 | 90505-KRM-860 | WASHER (15.5X22) | 1 шт. | — | |
|
| 13 | 94101-10000 | WASHER, PLAIN (10MM) | 1 шт. | — | |
|
| 14 | 94201-20120 | PIN, COTTER (2.0X12) | 1 шт. | — | |
|
| 15 | 94201-20150 | PIN, COTTER (2.0X15) | 1 шт. | — | |
|
| 16 | 95011-40000 | RUBBER, CHANGE PEDAL | 1 шт. | — | |
|
| 17 | 95014-73100 | SPRING A, BRAKE ROD | 1 шт. | — | |
|
| 18 | 95015-32001 | JOINT B, BRAKE ARM | 1 шт. | — | |
|
| 19 | 95015-42000 | NUT B, BRAKE ROD ADJUSTING | 1 шт. | — | |
|
| 20 | 95015-53000 | PIN, JOINT (C) | 1 шт. | — | |
|
| 21 | 95701-06020-08 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 22 | 95701-08028-08 | BOLT, FLANGE (8X28) | 1 шт. | — | |
|
| 23 | 96211-08000 | BALL, STEEL (#8) (1/4) | 1 шт. | — | |
|
