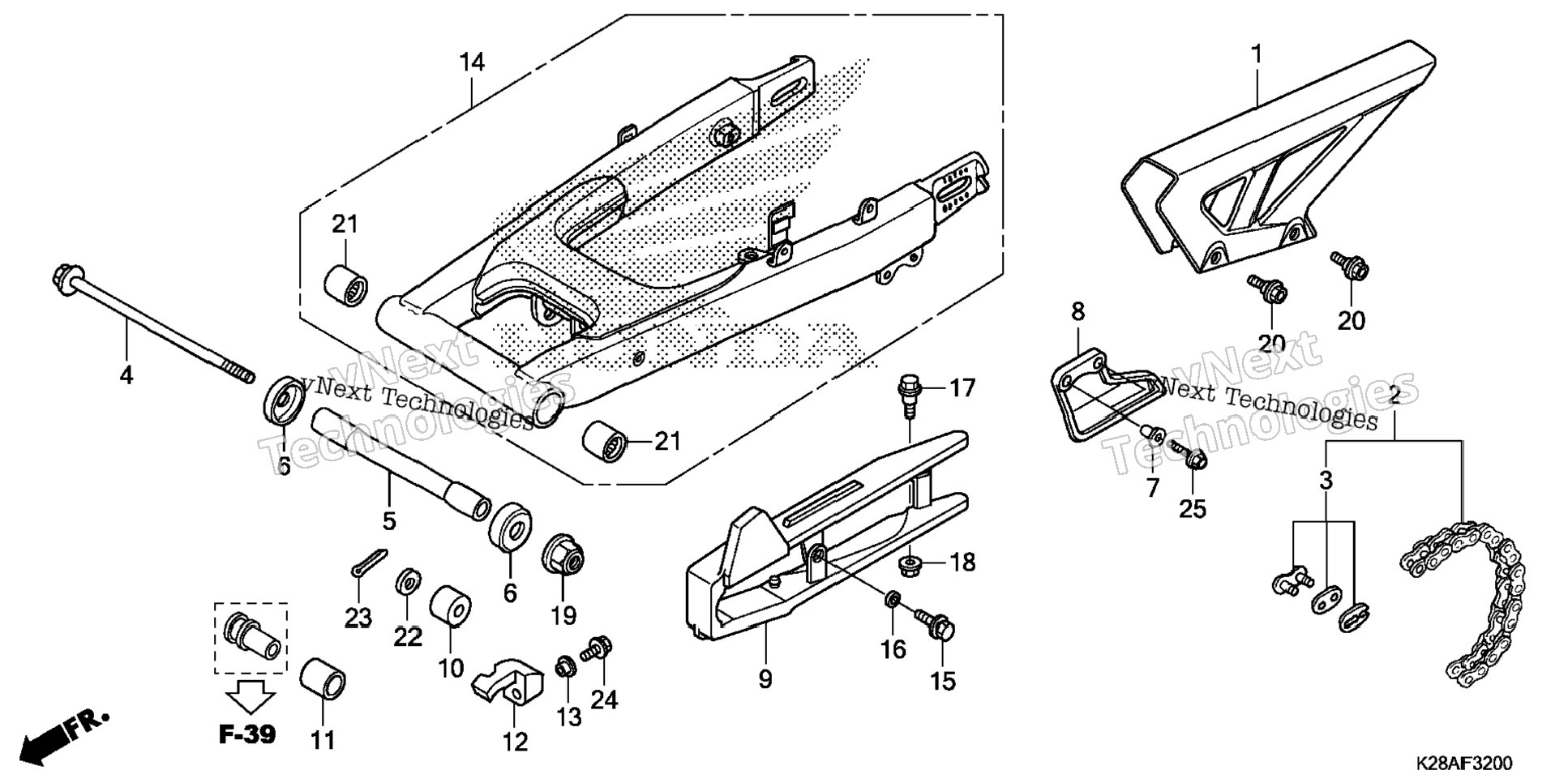

| 1 | 40510-K28-910 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40530-K28-911 | CHAIN, DRIVE (DID428HD-112RB) (DAIDO) | 1 шт. | — | |
|
| 3 | 40531-355-013 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
| 4 | 52101-K28-910 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 5 | 52141-K28-910 | COLLAR, SWINGARM | 1 шт. | — | |
|
| 6 | 52144-GF5-003 | DUST SEAL (31X38.5X7) (NOK) | 2 шт. | — | |
|
| 7 | 52144-K28-910 | CAP, RR. SWINGARM DUST SEAL | 2 шт. | — | |
|
| 8 | 52157-K28-910 | COLLAR, CHAIN GUARD | 2 шт. | — | |
|
| 9 | 52160-K28-910 | GUARD, CHAIN | 1 шт. | — | |
|
| 10 | 52170-K28-910 | SLIDER, CHAIN | 1 шт. | — | |
|
| 11 | 52175-K28-910 | ROLLER, CHAIN (UPPER) | 1 шт. | — | |
|
| 12 | 52185-K28-910 | SLIDER, CHAIN (LOWER) | 1 шт. | — | |
|
| 13 | 52186-K28-910 | WASHER (6MM) | 1 шт. | — | |
|
| 14 | 52200-K28-910 | SWINGARM SUB-ASSY., RR. | 1 шт. | — | |
|
| 15 | 90107-K28-910 | BOLT-WASHER (5X16) | 1 шт. | — | |
|
| 16 | 90108-K28-910 | COLLAR (10.5X5.3X3) | 1 шт. | — | |
|
| 17 | 90113-KYK-910 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 18 | 90302-KYA-601 | NUT, FLANGE (6MM) (PT) | 1 шт. | — | |
|
| 19 | 90306-KYA-601 | NUT, FLANGE (12MM) (PT) | 1 шт. | — | |
|
| 20 | 90653-KYK-910 | BOLT, SPECIAL (6MM) | 2 шт. | — | |
|
| 21 | 91070-GC4-601 | BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT | 2 шт. | — | |
|
| 22 | 94102-08700 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 23 | 94201-20150 | PIN, COTTER (2.0X15) | 1 шт. | — | |
|
| 24 | 95701-06012-07 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 25 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 2 шт. | — | |
|
| 26 | 95801-06018-00 | BOLT, FLANGE (6X18) | 2 шт. | — | |
|
