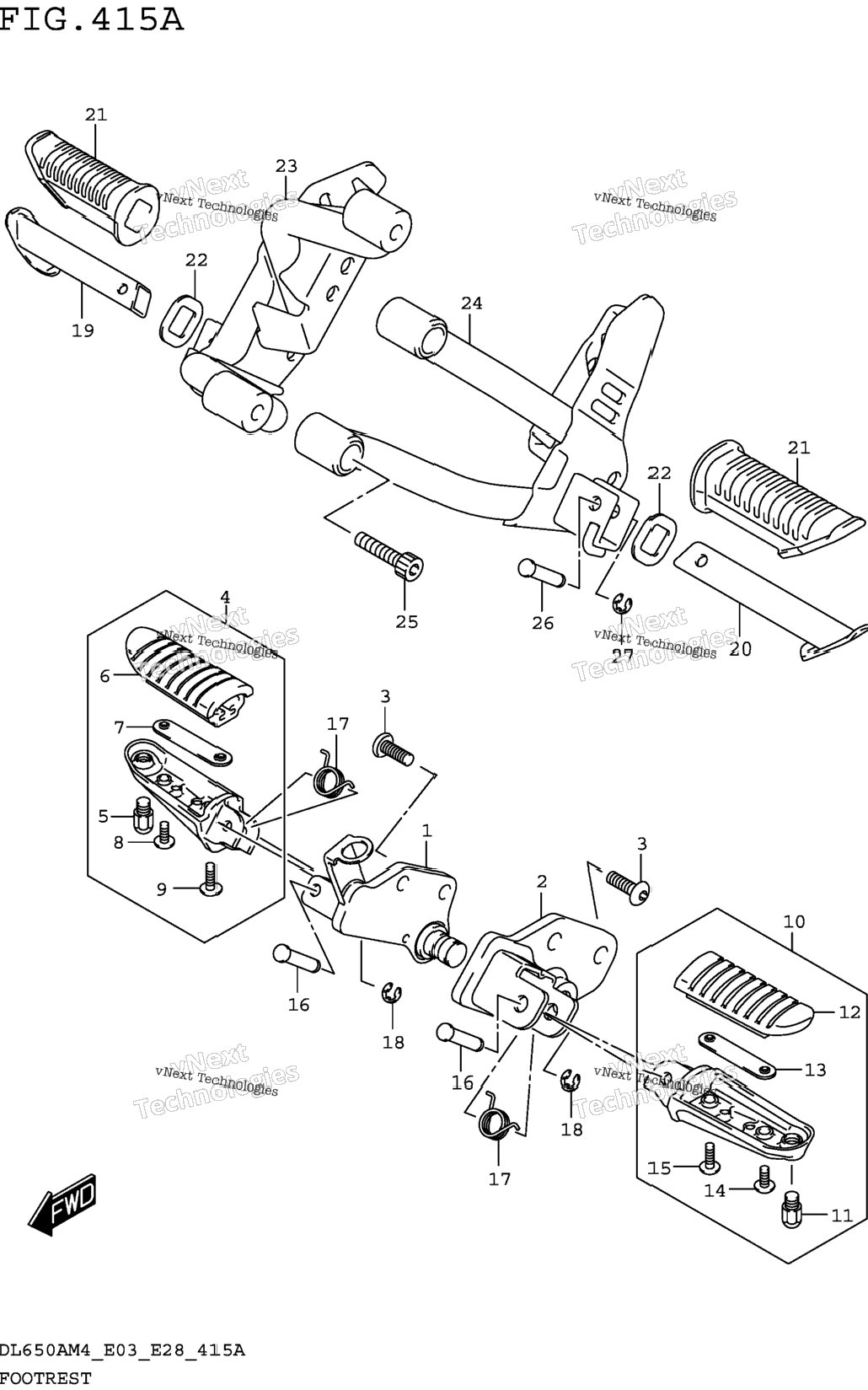

| 1 | 43510-11J00-YAP | BRACKET, FR FOOTREST RH (BLACK) | 1 шт. | — | |
|
| 2 | 43520-11J00-YAP | BRACKET, FR FOOTREST LH (BLACK) | 1 шт. | — | |
|
| 3 | 09106-08150 | BOLT (8X23) | 4 шт. | — | |
|
| 4 | 43501-06G01 | FOOTREST ASSY RH | 1 шт. | — | |
|
| 10 | 43502-06G01 | FOOTREST ASSY, LH | 1 шт. | — | |
|
| 11 | 43576-07D01 | .BOLT, BANK SENSOR | 1 шт. | — | |
|
| 11 | 43576-07D01 | .BOLT, BANK SENSOR | 1 шт. | — | |
|
| 12 | 43551-06G00 | .RUBBER,FOOTREST | 1 шт. | — | |
|
| 12 | 43551-06G00 | .RUBBER,FOOTREST | 1 шт. | — | |
|
| 13 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 13 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 14 | 02142-0516B | .SCREW OUTER | 1 шт. | — | |
|
| 14 | 02142-0516B | .SCREW OUTER | 1 шт. | — | |
|
| 15 | 02142-0520B | SCREW INNER | 1 шт. | — | |
|
| 15 | 02142-0520B | SCREW INNER | 1 шт. | — | |
|
| 16 | 09208-08010 | PIN (8X33.2) | 2 шт. | — | |
|
| 17 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 18 | 08332-1106B | E RING | 2 шт. | — | |
|
| 19 | 43610-34A60 | BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 20 | 43710-34A60 | BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 21 | 43612-33G30 | RUBBER, PILLION FOOTREST | 2 шт. | — | |
|
| 22 | 43631-34A01 | WASHER,FOOTREST RUBBER | 2 шт. | — | |
|
| 23 | 43810-28K00-YAP | BRACKET, PILLION FTRST RH (BLACK) | 1 шт. | — | |
|
| 24 | 43820-28K00-YAP | BRACKET, PILLION FTRST LH (BLACK) | 1 шт. | — | |
|
| 25 | 09106-08074 | BOLT (8X40) | 4 шт. | — | |
|
| 26 | 09208-06008 | PIN (6X29.5) | 2 шт. | — | |
|
| 27 | 08332-1104A | E-RING | 2 шт. | — | |
|
