Fuel Tank Cover (Dl650am4 E03)

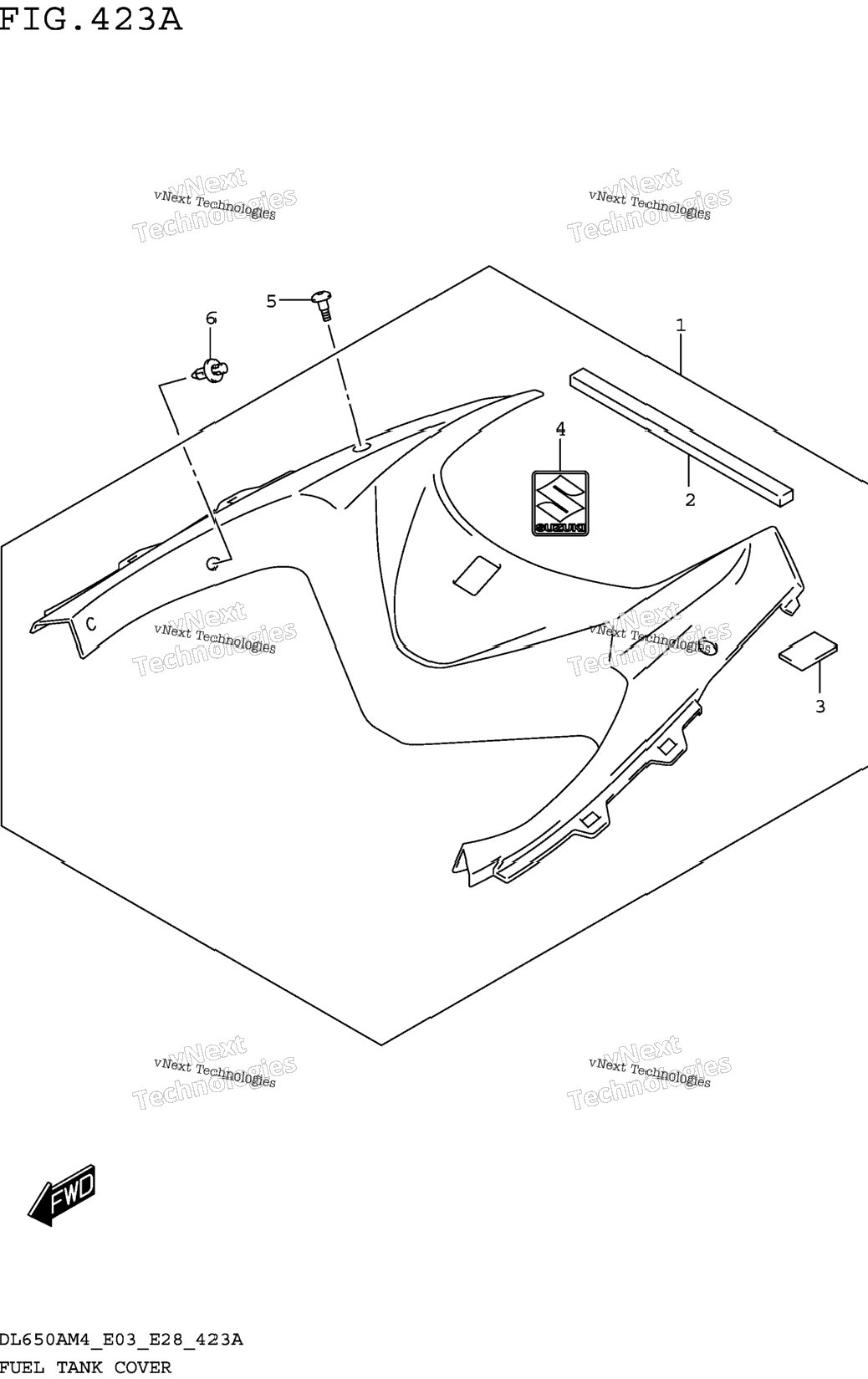

Схема Fuel Tank Cover (Dl650am4 E03)

№	Артикул	Название	Кол-во	Наличие и цены	Действия

1	`44190-28K00`	COVER, FUEL TANK FRONT	1 шт.	—

2	`44261-22A00`	.RUBBER, FUEL TANK FR	1 шт.	—

3	`44572-13G00`	.FASTENER (33X25X2.6)	2 шт.	—

4	`68281-47HA0`	EMBLEM,S	1 шт.	—

5	`09139-06212`	SCREW	2 шт.	—

6	`09409-06314`	CLIP (5.9X20.5)	2 шт.	—

7	`SPECIAL NOTE`	COLOR:KEL=YVB(BLACK)/YSF(BLUE) FIG.423B(1-G-13) FUEL TANK COVER (DL650AM4 E28) FIG.423C(1-G-14) FUEL TANK COVER (DL650AM4 E33) FIG.423D(1-H-2 ) FUEL TANK COVER (DL650XAM4 E03) FIG.423E(1-H-3 ) FUEL TANK COVER (DL650XAM4 E28) FIG.423F(1-H-4 ) FUEL TANK COVER (DL650XAM4 E33)	0 шт.	—
