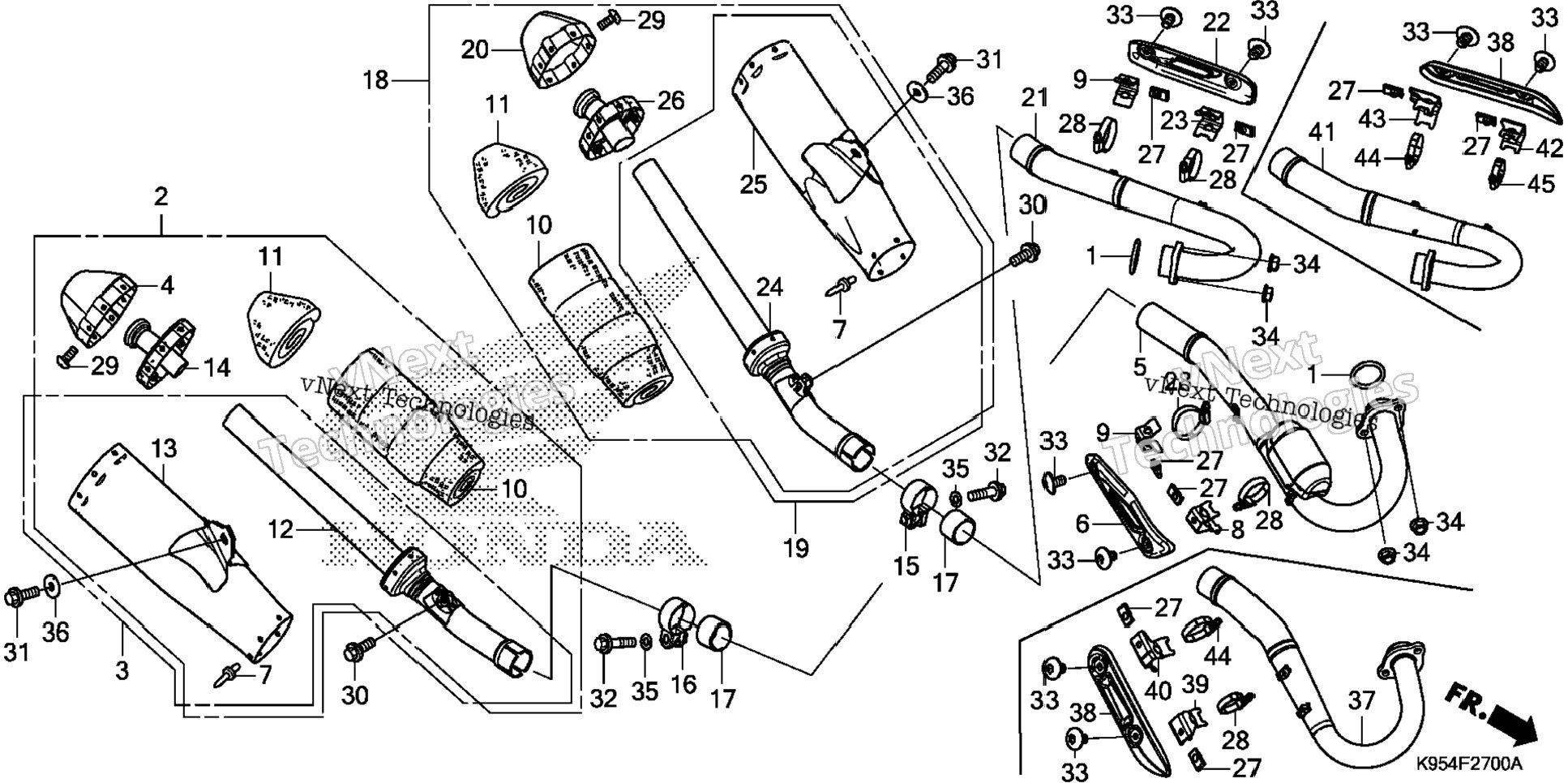

| 1 | 18291-KSV-J01 | GASKET, EX. PIPE | 2 шт. | — | |
|
| 2 | 18300-K95-A60 | MUFFLER ASSY., R. | 1 шт. | — | |
|
| 3 | 18310-K95-A60 | MUFFLER, R. | 1 шт. | — | |
|
| 4 | 18318-MKE-A00 | COVER, R. END | 1 шт. | — | |
|
| 5 | 18326-KRN-A00 | RIVET, BLIND (3.2) | 12 шт. | — | |
|
| 6 | 18334-K95-A20 | PACK, GLASS WOOL CENTER | 2 шт. | — | |
|
| 7 | 18337-KRN-850 | WOOL B, GLASS | 2 шт. | — | |
|
| 8 | 18360-K95-A60 | MUFFLER, R. FR. | 1 шт. | — | |
|
| 9 | 18361-K95-A60 | BODY, R. MUFFLER | 1 шт. | — | |
|
| 10 | 18362-K95-A20 | SEPARATOR (R) | 1 шт. | — | |
|
| 11 | 18373-MG7-701 | BAND, R. MUFFLER | 1 шт. | — | |
|
| 12 | 18374-KE8-000 | BAND, L. MUFFLER | 1 шт. | — | |
|
| 13 | 18373-KE8-000 | BAND, R. MUFFLER | 1 шт. | — | |
|
| 14 | 18374-MG7-701 | BAND, L. MUFFLER | 1 шт. | — | |
|
| 15 | 18392-MK4-000 | GASKET, MUFFLER | 2 шт. | — | |
|
| 16 | 18400-K95-A60 | MUFFLER ASSY., L. | 1 шт. | — | |
|
| 17 | 18410-K95-A60 | MUFFLER, L. | 1 шт. | — | |
|
| 18 | 18418-MKE-A00 | COVER, L. END | 1 шт. | — | |
|
| 19 | 18460-K95-A60 | MUFFLER, L. FR. | 1 шт. | — | |
|
| 20 | 18461-K95-A60 | BODY, L. MUFFLER | 1 шт. | — | |
|
| 21 | 18462-K95-A20 | SEPARATOR (L) | 1 шт. | — | |
|
| 22 | 19508-KA3-710 | NUT, SPRING (6MM) | 4 шт. | — | |
|
| 23 | 19516-K95-A40 | CLAMP, HOSE | 1 шт. | — | |
|
| 24 | 90101-MKE-A00 | BOLT, SPECIAL (5X12) | 16 шт. | — | |
|
| 25 | 90109-MEN-A30 | BOLT (8X20) | 2 шт. | — | |
|
| 26 | 90109-MKE-A00 | BOLT, FLANGE (8X25) (SH) | 2 шт. | — | |
|
| 27 | 90124-KZ4-J40 | BOLT, FLANGE (8X35) | 2 шт. | — | |
|
| 28 | 90170-MEB-670 | BOLT, SPECIAL (6MM) | 4 шт. | — | |
|
| 29 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 4 шт. | — | |
|
| 30 | 94102-08800 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 31 | 94103-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 32 | 18320-K95-A60 | PIPE, R. EX. | 1 шт. | — | |
|
| 33 | 18323-K95-A60 | PROTECTOR, EX. PIPE | 2 шт. | — | |
|
| 34 | 18327-K95-A60 | STAY, FR. EX. PIPE PROTECTOR (R) | 1 шт. | — | |
|
| 35 | 18328-K95-A60 | STAY, RR. EX. PIPE PROTECTOR (R) | 1 шт. | — | |
|
| 36 | 18420-K95-A60 | PIPE, L. EX. | 1 шт. | — | |
|
| 37 | 18427-K95-A60 | STAY, FR. EX. PIPE PROTECTOR (L) | 1 шт. | — | |
|
| 38 | 18428-K95-A60 | STAY, RR. EX. PIPE PROTECTOR (L) | 1 шт. | — | |
|
| 39 | 19509-MM5-003 | CLAMP, R. RADIATOR HOSE | 2 шт. | — | |
|
| 40 | 19516-ML7-691 | CLAMP, HOSE (24-32MM) | 1 шт. | — | |
|
