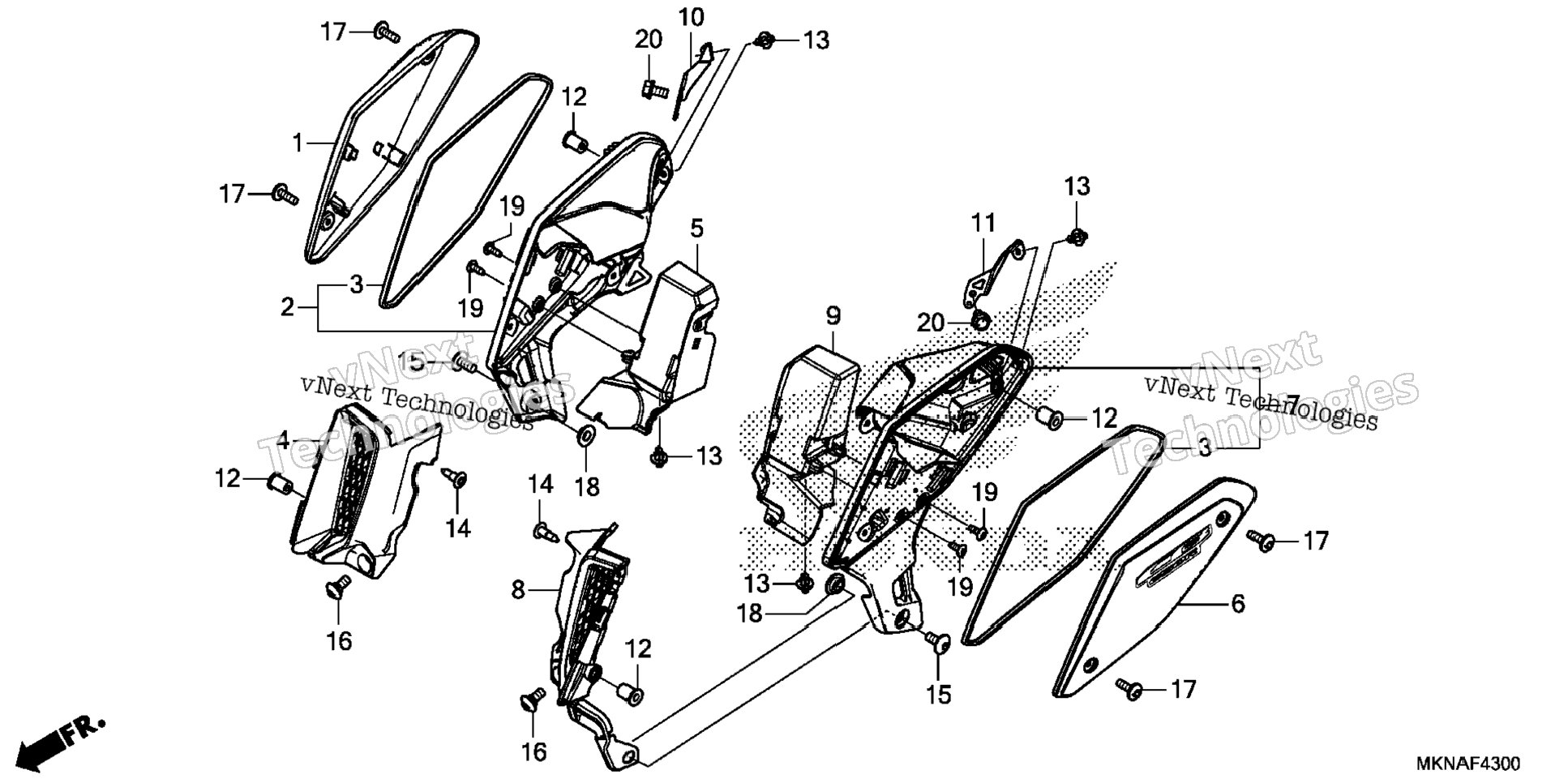

| 1 | 64310-MKN-D50ZA | SHROUD SET A, R. (TYPE1) (WL) | 1 шт. | — | |
|
| 2 | 64320-MKN-D50 | SHROUD ASSY. B, R. | 1 шт. | — | |
|
| 3 | 64322-MKN-D50 | SEAL, SHROUD | 2 шт. | — | |
|
| 4 | 64331-MKN-D50 | SHROUD C, R. | 1 шт. | — | |
|
| 5 | 64336-MKN-D50 | BOX, R. AIR DUCT | 1 шт. | — | |
|
| 6 | 64410-MKN-D50ZA | SHROUD SET A, L. (TYPE1) (WL) | 1 шт. | — | |
|
| 7 | 64420-MKN-D50 | SHROUD ASSY. B, L. | 1 шт. | — | |
|
| 8 | 64431-MKN-D50 | SHROUD C, L. | 1 шт. | — | |
|
| 9 | 64436-MKN-D50 | BOX, L. AIR DUCT | 1 шт. | — | |
|
| 10 | 64650-MKN-D50 | STAY, R. SHROUD | 1 шт. | — | |
|
| 11 | 64660-MKN-D50 | STAY, L. SHROUD | 1 шт. | — | |
|
| 12 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 4 шт. | — | |
|
| 13 | 90116-K0A-E11 | RIVET, PUSH (6MM) | 4 шт. | — | |
|
| 14 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 шт. | — | |
|
| 15 | 90125-MKN-D50 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 16 | 90133-KPP-T00 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 17 | 90134-MJE-D00 | SCREW, PAN (5X16) | 4 шт. | — | |
|
| 18 | 90503-MJE-D40 | COLLAR, MOUNTING | 2 шт. | — | |
|
| 19 | 93903-24380 | SCREW, TAPPING (4X12) | 4 шт. | — | |
|
| 20 | 95701-06012-07 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
