Fuel Tank@Fuel Pump

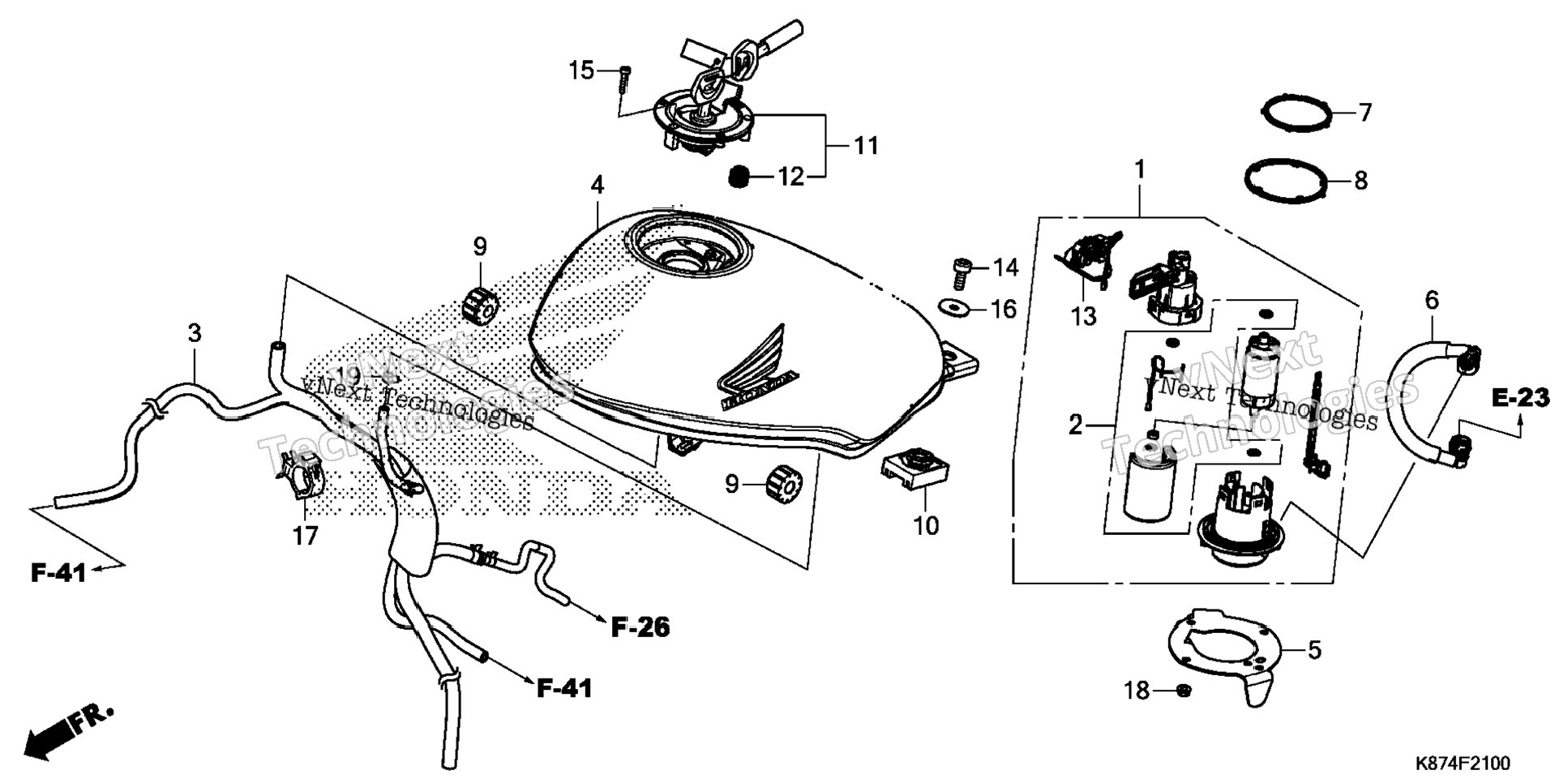

Схема Fuel Tank@Fuel Pump
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 16700-K87-A01 | PUMP UNIT ASSY., FUEL (NIPPON SEIKI) (MSDS) | 1 шт. | — | |
| 2 | 16707-K45-N01 | FILTER SET | 1 шт. | — | |
| 3 | 17417-K87-A00 | TUBE ASSY. | 1 шт. | — | |
| 4 | 17520-K87-A10ZD | TANK SET, FUEL (TYPE1) (WL) | 1 шт. | — | |
| 5 | 17520-K87-A20ZE | TANK SET, FUEL (TYPE3) (WL) | 1 шт. | — | — |
| 6 | 17520-K87-A30ZB | TANK SET, FUEL (TYPE1) (WL) | 1 шт. | — | — |
| 7 | 17526-K87-A00 | PLATE, SETTING | 1 шт. | — | |
| 8 | 17570-K87-A01 | HOSE, FUEL FEED | 1 шт. | — | |
| 9 | 17572-K26-900 | GASKET, FUEL PUMP | 1 шт. | — | |
| 10 | 17573-KPN-A71 | DUST SEAL | 1 шт. | — | |
| 11 | 17611-KPK-900 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
| 12 | 17613-K87-A00 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
| 13 | 17620-KZZ-J01 | CAP, FUEL FILLER | 1 шт. | — | |
| 14 | 17621-MGP-D61 | SEAL, BREATHER | 1 шт. | — | |
| 15 | 37800-K87-A01 | FUEL UNIT (NIPPON SEIKI) | 1 шт. | — | |
| 16 | 90116-MGZ-J00 | BOLT, SOCKET (8X22) | 1 шт. | — | |
| 17 | 90120-MJE-D00 | BOLT, SOCKET (4X25) (SUS) | 3 шт. | — | |
| 18 | 90325-KCC-900 | WASHER, PLAIN (8MM) | 1 шт. | — | |
| 19 | 90690-GHB-671 | CLIP, CABLE (25MM) | 1 шт. | — | |
| 20 | 94050-06000 | NUT, FLANGE (6MM) | 4 шт. | — | |
