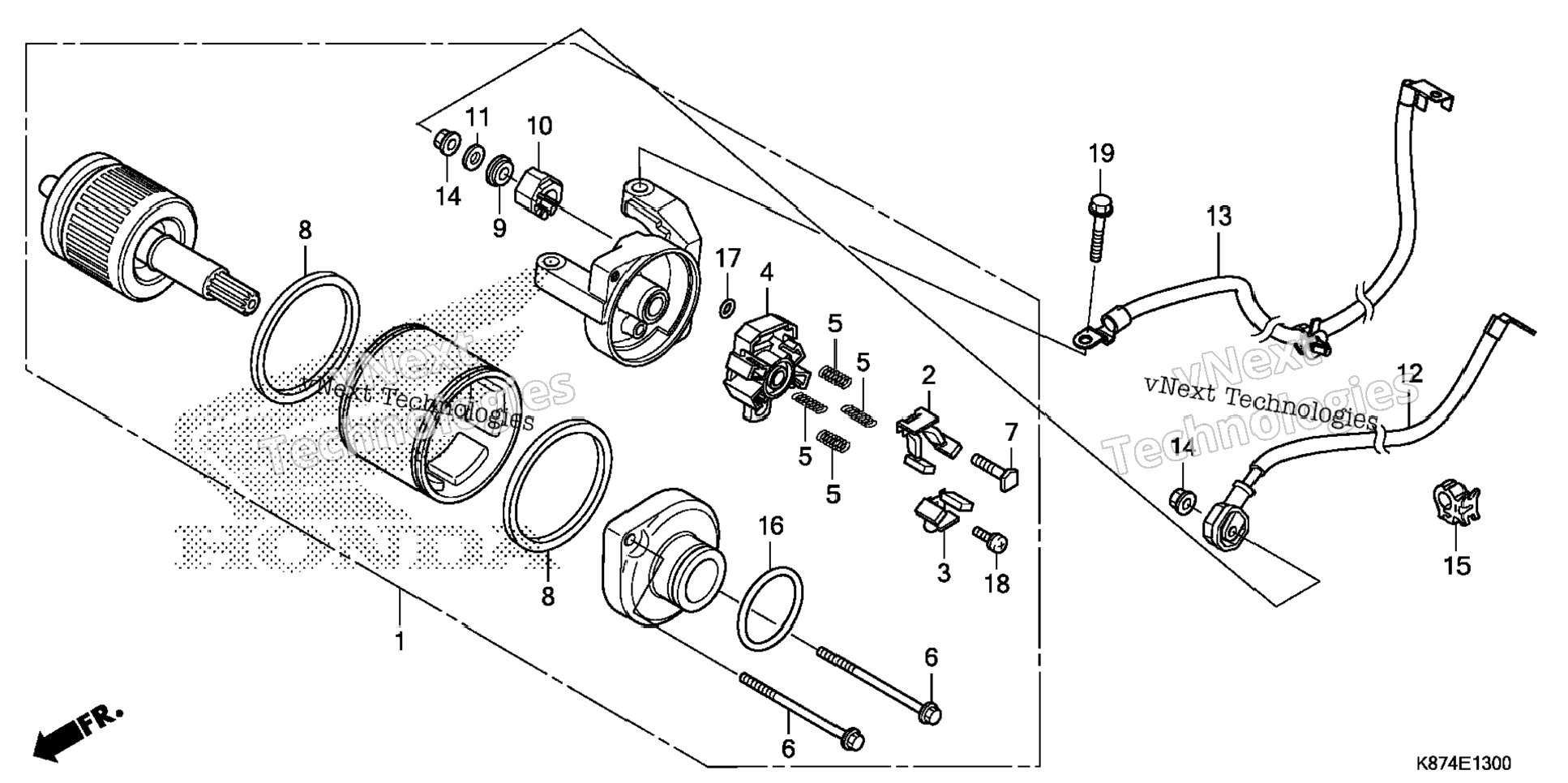

| 1 | 31200-KYJ-902 | STARTER MOTOR ASSY. (MITSUBA) | 1 шт. | — | |
|
| 2 | 31201-MEW-921 | BRUSH SET A, CARBON (Honda Code 8476772) | 1 шт. | — | |
|
| 3 | 31202-MEW-921 | BRUSH SET B, CARBON (Honda Code 8476780) | 1 шт. | — | |
|
| 4 | 31203-MEW-921 | HOLDER, BRUSH (Honda Code 8614117) | 1 шт. | — | |
|
| 5 | 31204-MEW-921 | SPRING, CARBON BRUSH (Honda Code 8476798) | 4 шт. | — | |
|
| 6 | 31205-HP5-601 | BOLT, SETTING | 2 шт. | — | |
|
| 7 | 31206-MEW-921 | BOLT, TERMINAL | 1 шт. | — | |
|
| 8 | 31207-HP5-601 | RING | 2 шт. | — | |
|
| 9 | 31208-MEW-921 | INSULATOR (Honda Code 8476822) | 1 шт. | — | |
|
| 10 | 31209-MEW-921 | STOPPER, TERMINAL (Honda Code 8476830) | 1 шт. | — | |
|
| 11 | 31210-MEW-921 | WASHER | 1 шт. | — | |
|
| 12 | 32410-K87-A00 | CABLE, STARTER MOTOR | 1 шт. | — | |
|
| 13 | 32601-K87-A00 | CABLE, BATTERY GROUND | 1 шт. | — | |
|
| 14 | 90071-MB0-000 | NUT-WASHER (6MM) | 2 шт. | — | |
|
| 15 | 90690-GHB-651 | CLIP, CABLE (15MM) | 1 шт. | — | |
|
| 16 | 91309-425-003 | O-RING (24.4X3.1) (ARAI) (Honda Code 1113422) | 1 шт. | — | |
|
| 17 | 91312-MG7-003 | O-RING (24.4X3.1) (Honda Code 2618221) | 1 шт. | — | |
|
| 18 | 91320-MB0-000 | O-RING (Honda Code 1292184) | 1 шт. | — | |
|
| 19 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) | 1 шт. | — | |
|
| 20 | 95701-06025-00 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
