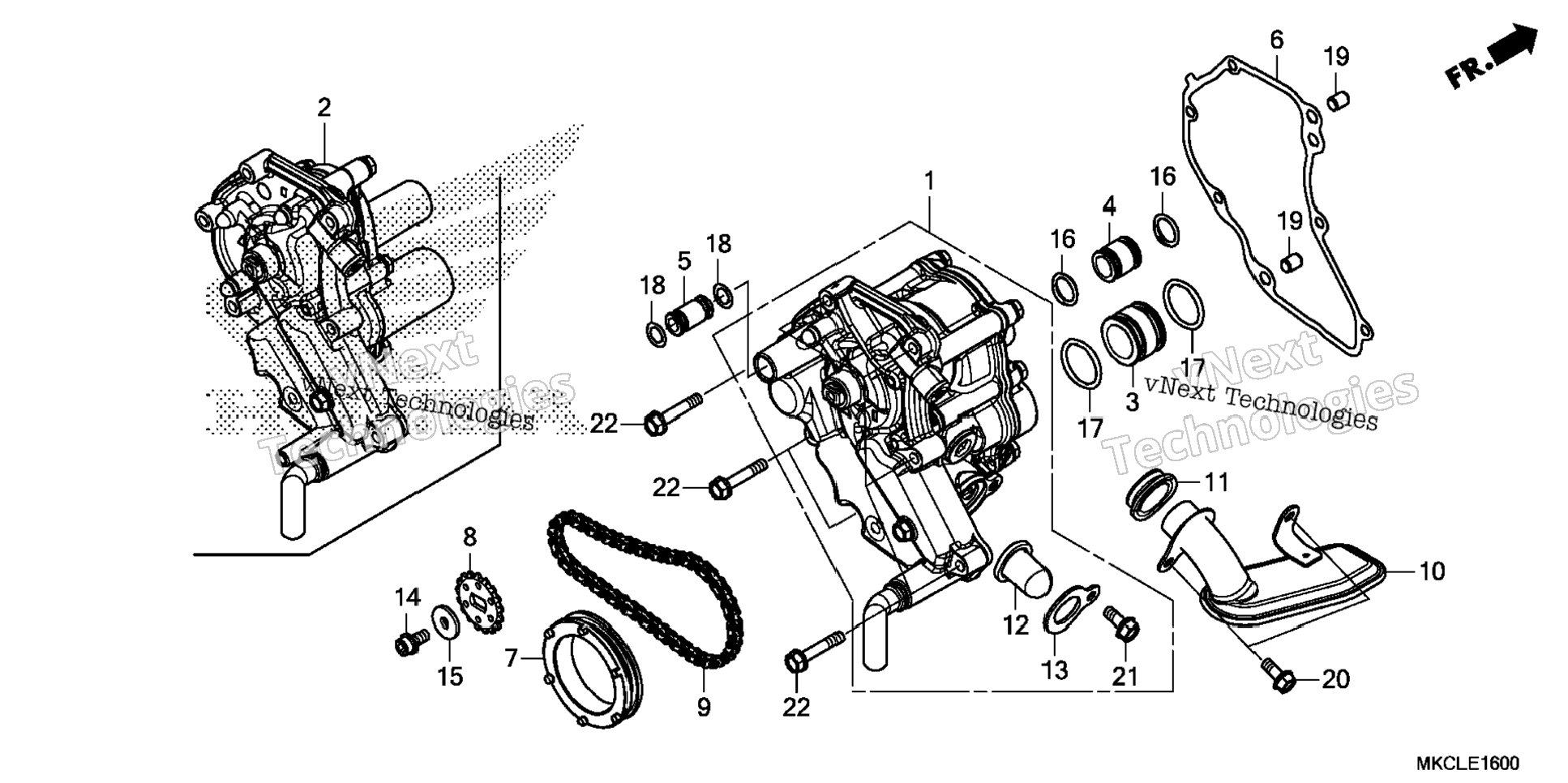

| 2 | 15100-MKC-A20 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 3 | 15106-MKC-A00 | JOINT, FEED LINE (IN) | 1 шт. | — | |
|
| 4 | 15107-MKC-A00 | JOINT, FEED LINE (OUT) | 1 шт. | — | |
|
| 7 | 15131-MKC-A01 | SPROCKET, OIL PUMP DRIVE (31T) | 1 шт. | — | |
|
| 8 | 15134-MKC-A00 | SPROCKET, OIL PUMP DRIVEN (17T) | 1 шт. | — | |
|
| 9 | 15135-MCA-003 | CHAIN, OIL PUMP (DID25H-54L) (54L) (DAIDO) | 1 шт. | — | |
|
| 10 | 15150-MKC-A00 | STRAINER, OIL | 1 шт. | — | |
|
| 11 | 15154-MM5-000 | GASKET, OIL STRAINER | 1 шт. | — | |
|
| 14 | 90003-HA0-003 | BOLT, SOCKET (6X12) | 1 шт. | — | |
|
| 15 | 90488-MB0-000 | WASHER (6X2.3) | 1 шт. | — | |
|
| 16 | 91303-MKC-A00 | O-RING (14.8X2.4) | 2 шт. | — | |
|
| 17 | 91305-MN1-670 | O-RING (25X3) | 2 шт. | — | |
|
| 17 | 91305-384-750 | O-RING (25X3) | 2 шт. | — | |
|
| 19 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 20 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 22 | 95701-06032-00 | BOLT, FLANGE (6X32) (Honda Code 2105856) | 7 шт. | — | |
|
