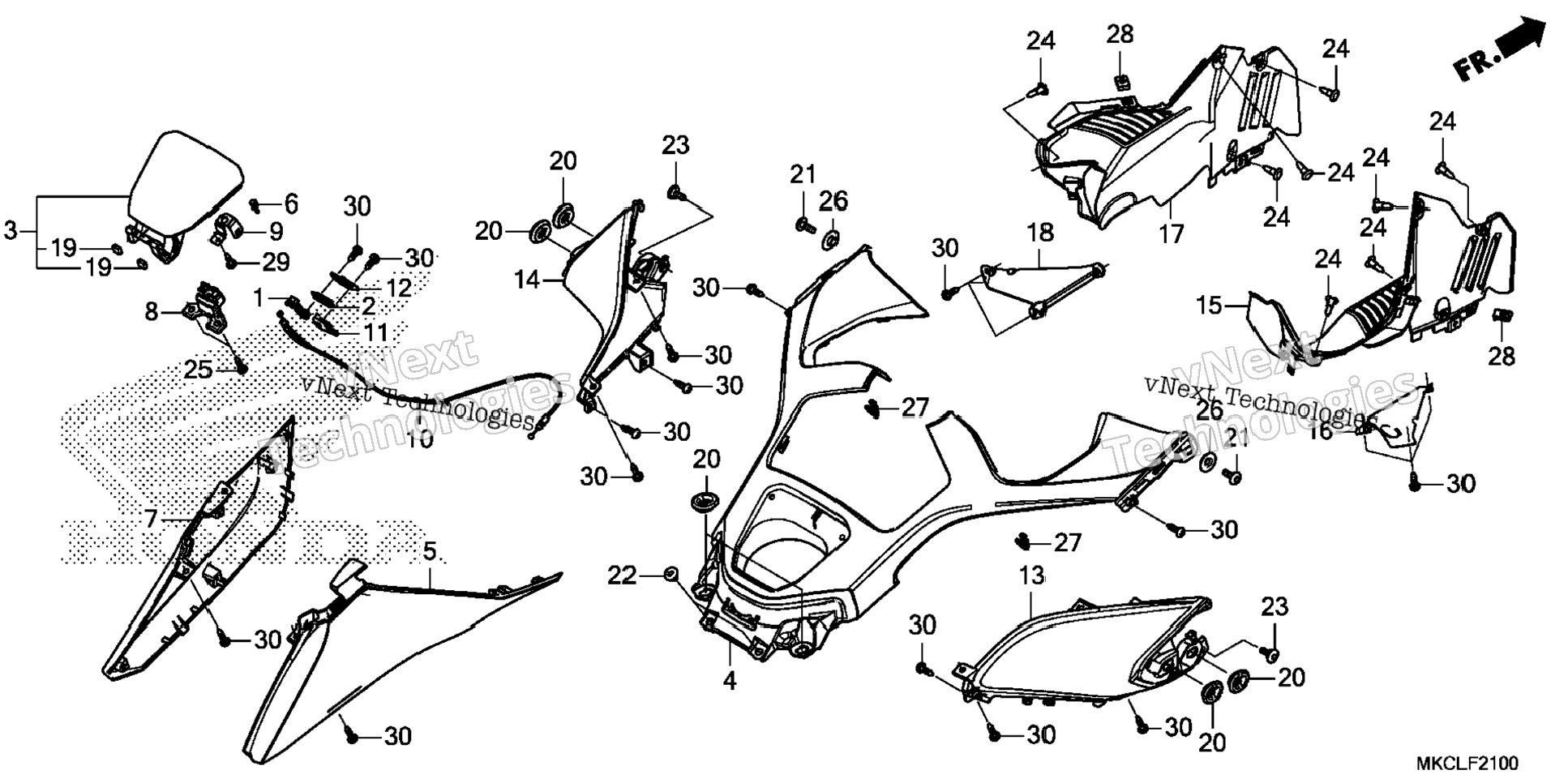

| 1 | 64429-MKC-A00 | CAM B, POCKET COVER LOCK | 1 шт. | — | |
|
| 2 | 64436-MCA-000 | SPRING, POCKET LOCK CAM | 1 шт. | — | |
|
| 3 | 83105-MKC-AE0ZE | LID ASSY., FUEL (TYPE1) | 1 шт. | — | |
|
| 4 | 83110-MKC-A30ZB | SHELTER SET, TOP (TYPE1) (WL) | 1 шт. | — | |
|
| 5 | 83130-MKC-A00ZE | SHELTER, R. SIDE (TYPE1) | 1 шт. | — | |
|
| 6 | 83132-MN5-000 | RUBBER, SHELTER LID | 2 шт. | — | |
|
| 7 | 83140-MKC-A00ZE | SHELTER, L. SIDE (TYPE1) | 1 шт. | — | |
|
| 8 | 83162-MKC-A00 | HOLDER, FUEL LID | 1 шт. | — | |
|
| 9 | 83163-MKC-A00 | PLATE, LID LOCK | 1 шт. | — | |
|
| 10 | 83165-MKC-A01 | CABLE, FUEL LID | 1 шт. | — | |
|
| 11 | 83166-MKC-A00 | CAM A, LID LOCK | 1 шт. | — | |
|
| 12 | 83174-MJN-A00 | STAY, CABLE LID | 1 шт. | — | |
|
| 13 | 83175-MKC-A00 | COVER, R. SHELTER | 1 шт. | — | |
|
| 14 | 83185-MKC-A00 | COVER, L. SHELTER | 1 шт. | — | |
|
| 15 | 83190-MKC-A00 | COVER, R. SHELTER (INNER) | 1 шт. | — | |
|
| 16 | 83191-MKC-A00 | PANEL, R. SHELTER (INNER) | 1 шт. | — | |
|
| 17 | 83195-MKC-A00 | COVER, L. SHELTER (INNER) | 1 шт. | — | |
|
| 18 | 83196-MKC-A00 | PANEL, L. SHELTER (INNER) | 1 шт. | — | |
|
| 19 | 83167-MKC-A00 | CUSHION, FUEL LID | 2 шт. | — | |
|
| 20 | 83266-MKF-D40 | RUBBER, PROTECTOR | 2 шт. | — | |
|
| 21 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 6 шт. | — | |
|
| 22 | 90113-MCJ-000 | SCREW, PAN (5X15) | 2 шт. | — | |
|
| 23 | 90114-KPH-700 | SCREW, SPECIAL (5X11) | 2 шт. | — | |
|
| 24 | 90114-MKC-A00 | SCREW, SPECIAL (5X15) | 2 шт. | — | |
|
| 25 | 90116-SP0-003 | CLIP, BUMPER SEAL | 8 шт. | — | |
|
| 26 | 90121-MJK-N20 | SCREW, TAPPING (5X12) | 2 шт. | — | |
|
| 27 | 90512-300-000 | WASHER (6X20) COLLAR, HEADLIGHT SETTING | 2 шт. | — | |
|
| 28 | 90666-SDA-A01 | CLIP, SNAP FITTING (PO)(NATURAL) | 2 шт. | — | |
|
| 29 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 30 | 93903-24280 | SCREW, TAPPING (4X10) | 1 шт. | — | |
|
| 31 | 93903-24380 | SCREW, TAPPING (4X12) | 20 шт. | — | |
|
