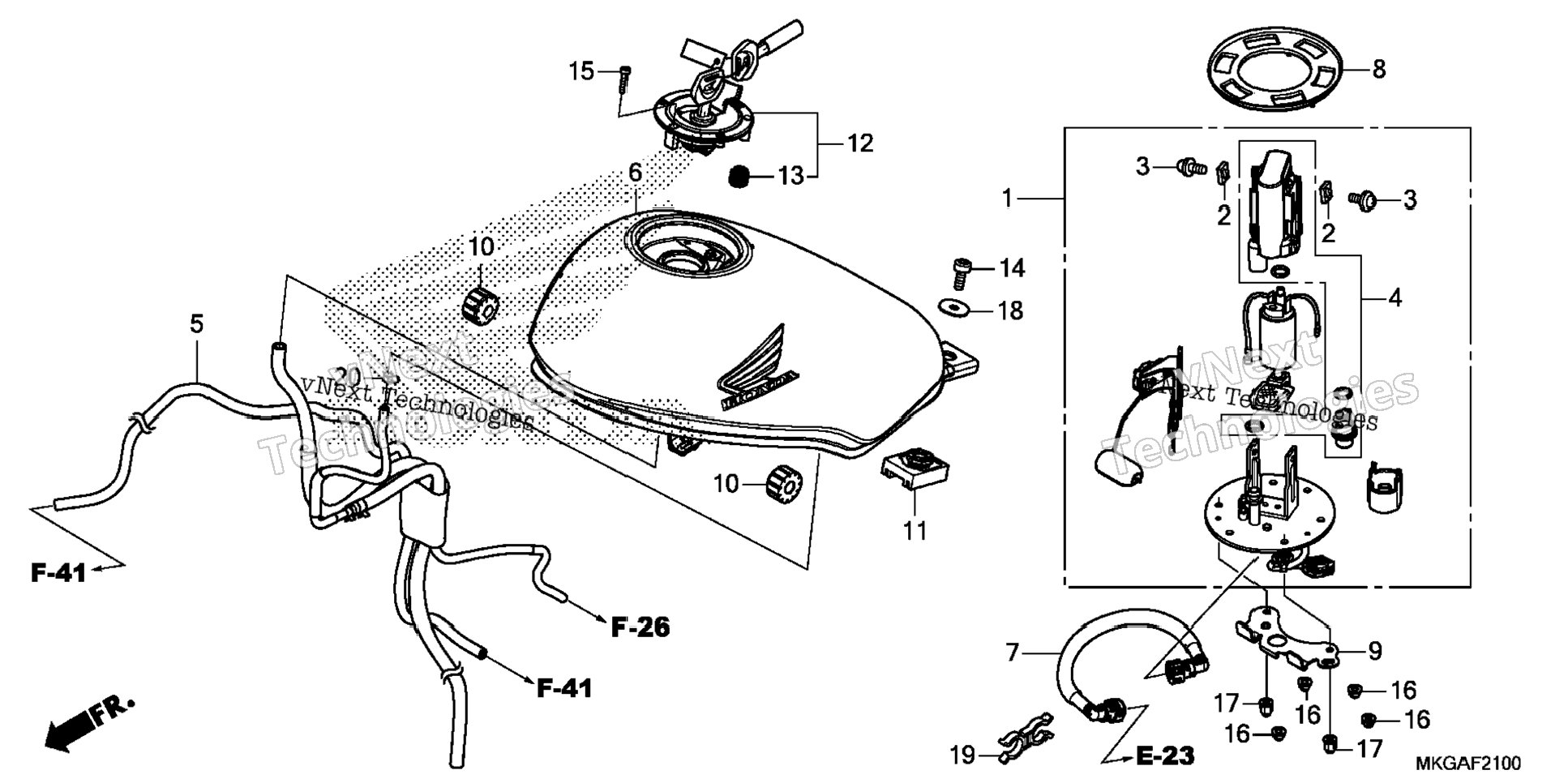

Fuel Tank@Fuel Pump
Схема Fuel Tank@Fuel Pump
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 16700-MKG-A02 | PUMP UNIT ASSY., FUEL | 1 шт. | — | |
| 2 | 16700-MKG-A03 | PUMP UNIT ASSY., FUEL (MSDS) | 1 шт. | — | |
| 3 | 16711-MGS-D31 | STOPPER | 2 шт. | — | |
| 4 | 16712-MGS-D31 | SCREW (4X6.6) | 2 шт. | — | |
| 5 | 16730-MJW-J82 | FILTER ASSY., FUEL | 1 шт. | — | |
| 6 | 17417-MKG-L50 | TUBE ASSY. | 1 шт. | — | |
| 7 | 17520-MKG-A10ZC | TANK SET, FUEL (TYPE2) (WL) | 1 шт. | — | |
| 8 | 17520-MKG-A10ZD | TANK SET, FUEL (TYPE1) (WL) | 1 шт. | — | |
| 9 | 17520-MKG-A30ZA | TANK SET, FUEL (TYPE1) (WL) | 1 шт. | — | — |
| 10 | 17570-MKG-A01 | HOSE, FUEL FEED | 1 шт. | — | |
| 11 | 17574-KZZ-910 | GASKET, BASE | 1 шт. | — | |
| 12 | 17580-MKG-A00 | GUARD, FUEL PUMP | 1 шт. | — | |
| 13 | 17611-KPK-900 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
| 14 | 17613-K87-A00 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
| 15 | 17620-KZZ-J01 | CAP, FUEL FILLER | 1 шт. | — | |
| 16 | 17621-MGP-D61 | SEAL, BREATHER | 1 шт. | — | |
| 17 | 17621-MGP-D62 | SEAL, BREATHER | 1 шт. | — | |
| 18 | 90116-MGZ-J00 | BOLT, SOCKET (8X22) | 1 шт. | — | |
| 19 | 90120-MJE-D00 | BOLT, SOCKET (4X25) (SUS) | 3 шт. | — | |
| 20 | 90201-415-000 | NUT, CAP (6MM) | 4 шт. | — | |
| 21 | 90304-KZZ-900 | NUT, HEX. CAP (6MM) | 2 шт. | — | |
| 22 | 90325-KCC-900 | WASHER, PLAIN (8MM) | 1 шт. | — | |
| 23 | 91593-MGZ-J01 | CLAMP, FUEL HOSE (BLACK) | 1 шт. | — | |
| 24 | 95002-40800-08 | CLAMP, TUBE (D8) | 1 шт. | — | |
