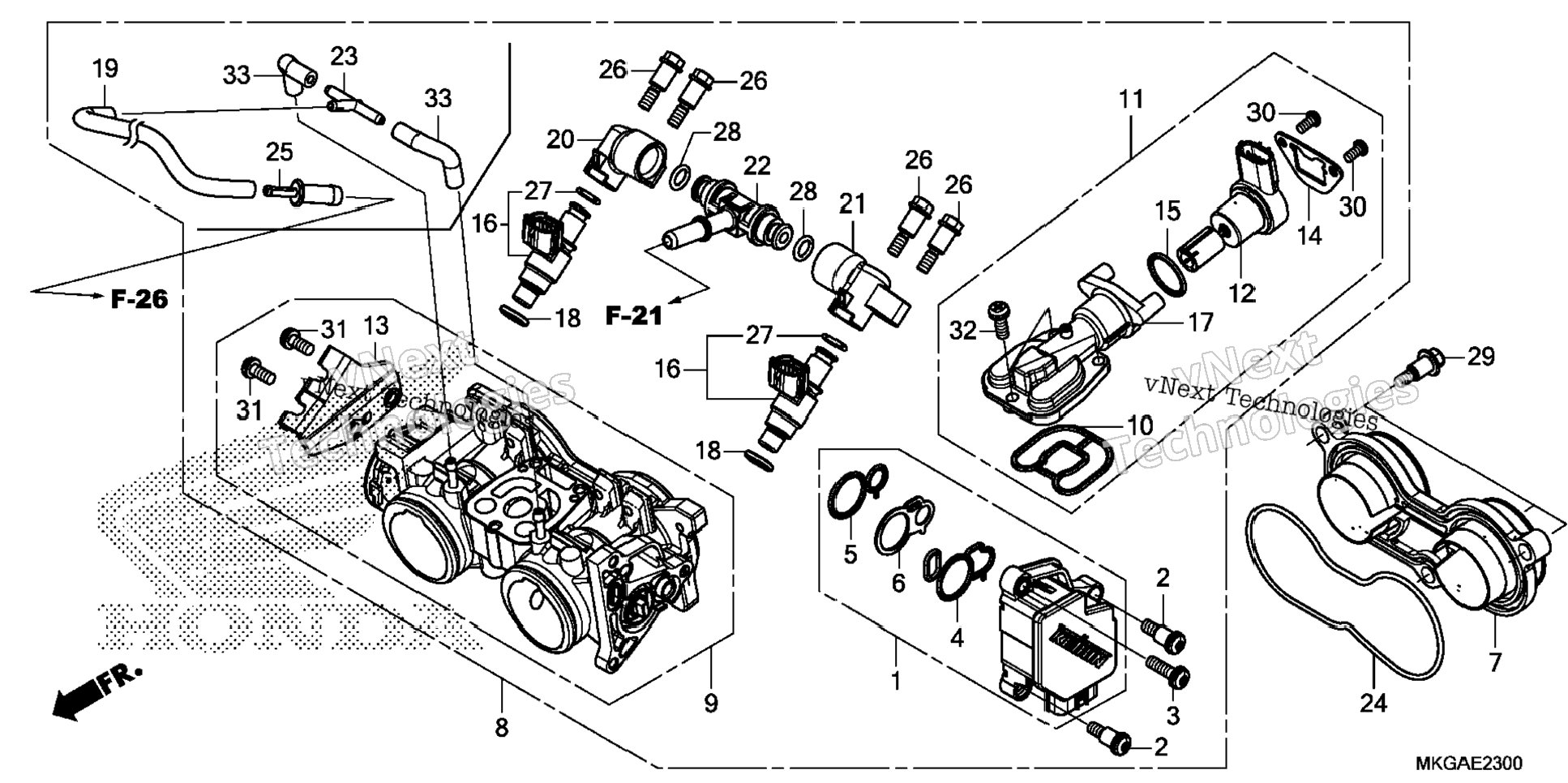

| 1 | 16060-MKG-L01 | SENSOR SET | 1 шт. | — | |
|
| 2 | 16081-KPH-701 | SCREW, TORX (5X8.7) | 2 шт. | — | |
|
| 3 | 16082-KPH-701 | SCREW, TORX (5X17) | 1 шт. | — | |
|
| 4 | 16083-MGZ-D01 | O-RING, SENSOR | 1 шт. | — | |
|
| 5 | 16084-MGZ-D01 | O-RING, SENSOR | 1 шт. | — | |
|
| 6 | 16085-MGZ-D01 | PLATE | 1 шт. | — | |
|
| 7 | 16188-MKG-A00 | PLATE, FUNNEL SETTING | 1 шт. | — | |
|
| 8 | 16400-MKG-L02 | BODY ASSY., THROTTLE (GQBUA A) | 1 шт. | — | |
|
| 9 | 16410-MKG-L01 | BODY SET | 1 шт. | — | |
|
| 10 | 16428-MGZ-D01 | O-RING, AIR INJECTION CONTROL VALVE | 1 шт. | — | |
|
| 11 | 16430-MJW-J01 | VALVE SET, IDLE AIR CONTROL | 1 шт. | — | |
|
| 12 | 16431-MJP-G51 | MOTOR ASSY. | 1 шт. | — | |
|
| 13 | 16432-MGZ-D01 | STAY, WIRE | 1 шт. | — | |
|
| 14 | 16433-MEW-921 | PLATE, IDLE AIR CONTROL VALVE | 1 шт. | — | |
|
| 15 | 16435-MFJ-D01 | O-RING (17.8X1.9) | 1 шт. | — | |
|
| 16 | 16450-MFJ-D01 | INJECTOR ASSY., FUEL | 2 шт. | — | |
|
| 17 | 16451-MGZ-D01 | BODY, IDLE AIR CONTROL VALVE | 1 шт. | — | |
|
| 18 | 16472-MCW-000 | SEAL RING, INJECTOR | 2 шт. | — | |
|
| 19 | 16482-MKG-L01 | TUBE, PURGE | 1 шт. | — | |
|
| 20 | 16610-MGZ-D01 | PIPE, FUEL (A) | 1 шт. | — | |
|
| 21 | 16620-MGZ-D01 | PIPE, FUEL (B) | 1 шт. | — | |
|
| 22 | 16630-MFJ-D00 | T-JOINT, FUEL | 1 шт. | — | |
|
| 23 | 17201-MG9-000 | JOINT, VACUUM TUBE (A) | 1 шт. | — | |
|
| 24 | 17215-MGZ-D00 | SEAL, THROTTLE BODY | 1 шт. | — | |
|
| 25 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 26 | 90021-MGZ-D02 | BOLT, SHOULDER | 4 шт. | — | |
|
| 27 | 91301-P7A-004 | O-RING (7.8X1.9) | 2 шт. | — | |
|
| 28 | 91301-PLC-000 | O-RING (7.47X3.6) | 2 шт. | — | |
|
| 29 | 91508-MM5-000 | SCREW, PAN (5MM) | 3 шт. | — | |
|
| 30 | 93500-04008-0H | SCREW, PAN (4X8) | 2 шт. | — | |
|
| 31 | 93500-04008-1H | SCREW, PAN (4X8) | 2 шт. | — | |
|
| 32 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) | 2 шт. | — | |
|
| 33 | 93892-05012-18 | SCREW-WASHER (5X12) | 2 шт. | — | |
|
| 34 | 93892-05014-08 | SCREW-WASHER (5X14) | 3 шт. | — | |
|
| 35 | 93892-05014-18 | SCREW-WASHER (5X14) | 3 шт. | — | |
|
| 36 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 2 шт. | — | |
|
