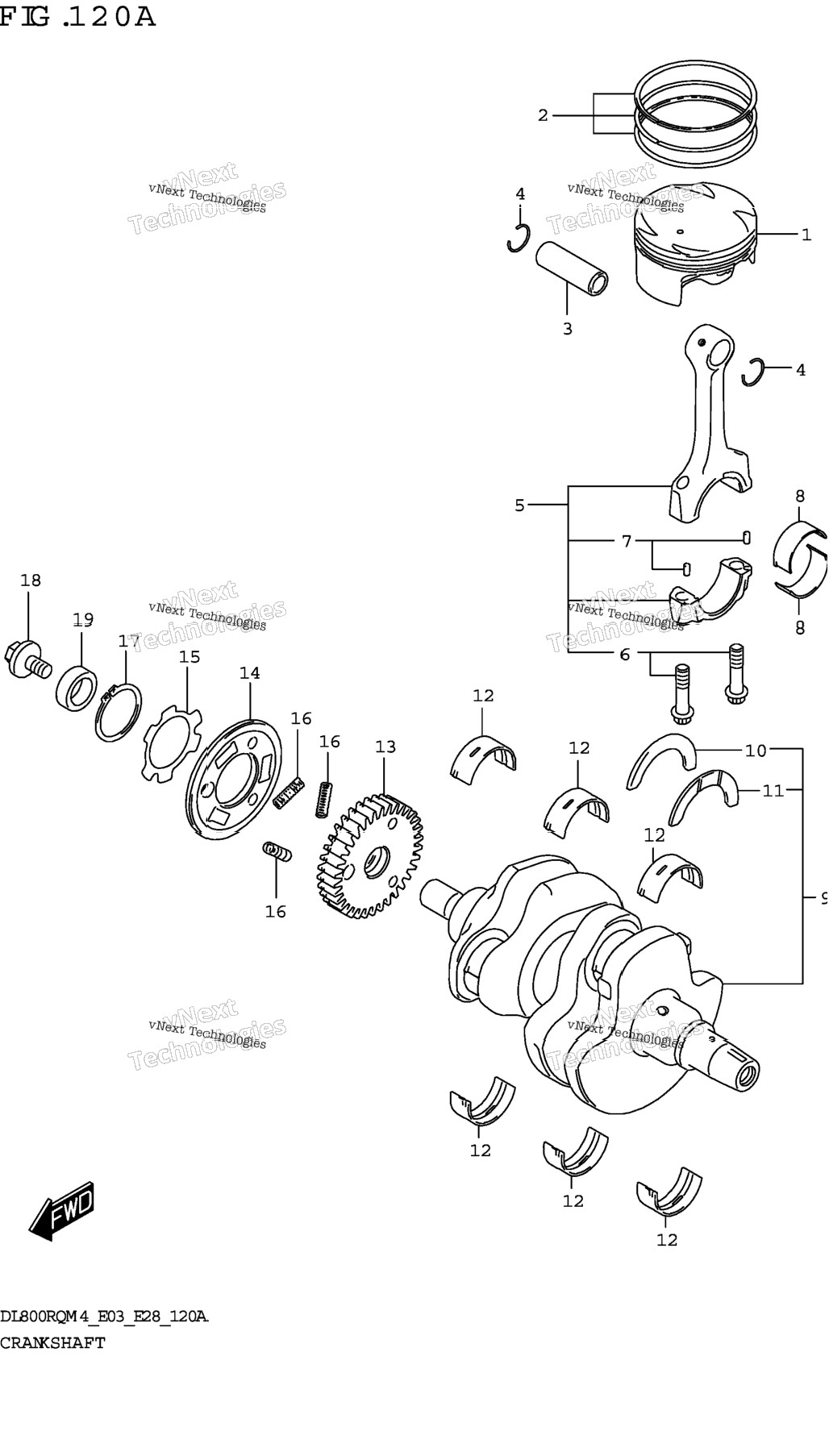

| 1 | 12111-25L00-0F0 | PISTON | 2 шт. | — | |
|
| 2 | 12140-25L00 | RING SET,PISTON | 2 шт. | — | |
|
| 3 | 12151-07D10 | PIN,PISTON | 2 шт. | — | |
|
| 4 | 09381-18002 | CIRCLIP (OD:20.5) | 4 шт. | — | |
|
| 5 | 12160-25L00 | CONNROD ASSY | 2 шт. | — | |
|
| 6 | 12163-24F10 | .BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 7 | 04221-04089 | .PIN | 4 шт. | — | |
|
| 8-1 | 12164-46E10-0A0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 8-2 | 12164-46E10-0B0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 8-3 | 12164-46E10-0C0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 8-4 | 12164-46E10-0D0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 9 | 12000-25810 | CRANKSHAFT SET | 1 шт. | — | |
|
| 10-1 | 12228-24F00-0A0 | .BEARING,CRANK THRUST,L (RED) | 1 шт. | — | |
|
| 10-2 | 12228-24F00-0B0 | .BEARING,CRANK THRUST,L (BLAC ) | 1 шт. | — | |
|
| 10-3 | 12228-24F00-0C0 | .BEARING,CRANK THRUST,L (BLUE | 1 шт. | — | |
|
| 10-5 | 12228-24F00-0E0 | .BEARING,CRANK THRUST,L (YELL W) | 1 шт. | — | |
|
| 10-6 | 12228-24F00-0F0 | .BEARING,CRANK THRUST,L (WHIT ) | 1 шт. | — | |
|
| 11 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 11 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 12-1 | 12229-25L00-0A0 | BEARING,CRANKSHAFT (GREEN) | 6 шт. | — | |
|
| 12-2 | 12229-25L00-0B0 | BEARING,CRANKSHAFT (BLACK) | 6 шт. | — | |
|
| 12-3 | 12229-25L00-0C0 | BEARING,CRANKSHAFT (BROWN) | 6 шт. | — | |
|
| 12-4 | 12229-25L00-0D0 | BEARING,CRANKSHAFT (YELLOW) | 6 шт. | — | |
|
| 12-5 | 12229-25L00-0E0 | BEARING,CRANKSHAFT (BLUE) | 6 шт. | — | |
|
| 13 | 21111-25L00 | GEAR,PRIMARY DRIVE | 1 шт. | — | |
|
| 14 | 21112-25L00 | GEAR,PRIMARY DRIVE SCISSORS | 1 шт. | — | |
|
| 15 | 21114-25L00 | WASHER,PRI DRIVE SCISSORS WAV | 1 шт. | — | |
|
| 16 | 09440-07081 | SPRING | 3 шт. | — | |
|
| 17 | 08331-31409 | CIRCLIP | 1 шт. | — | |
|
| 18 | 09103-10338 | BOLT (10X19) | 1 шт. | — | |
|
| 19 | 21121-25L00 | SPACER,PRIMARY DRIVE GEAR | 1 шт. | — | |
|
