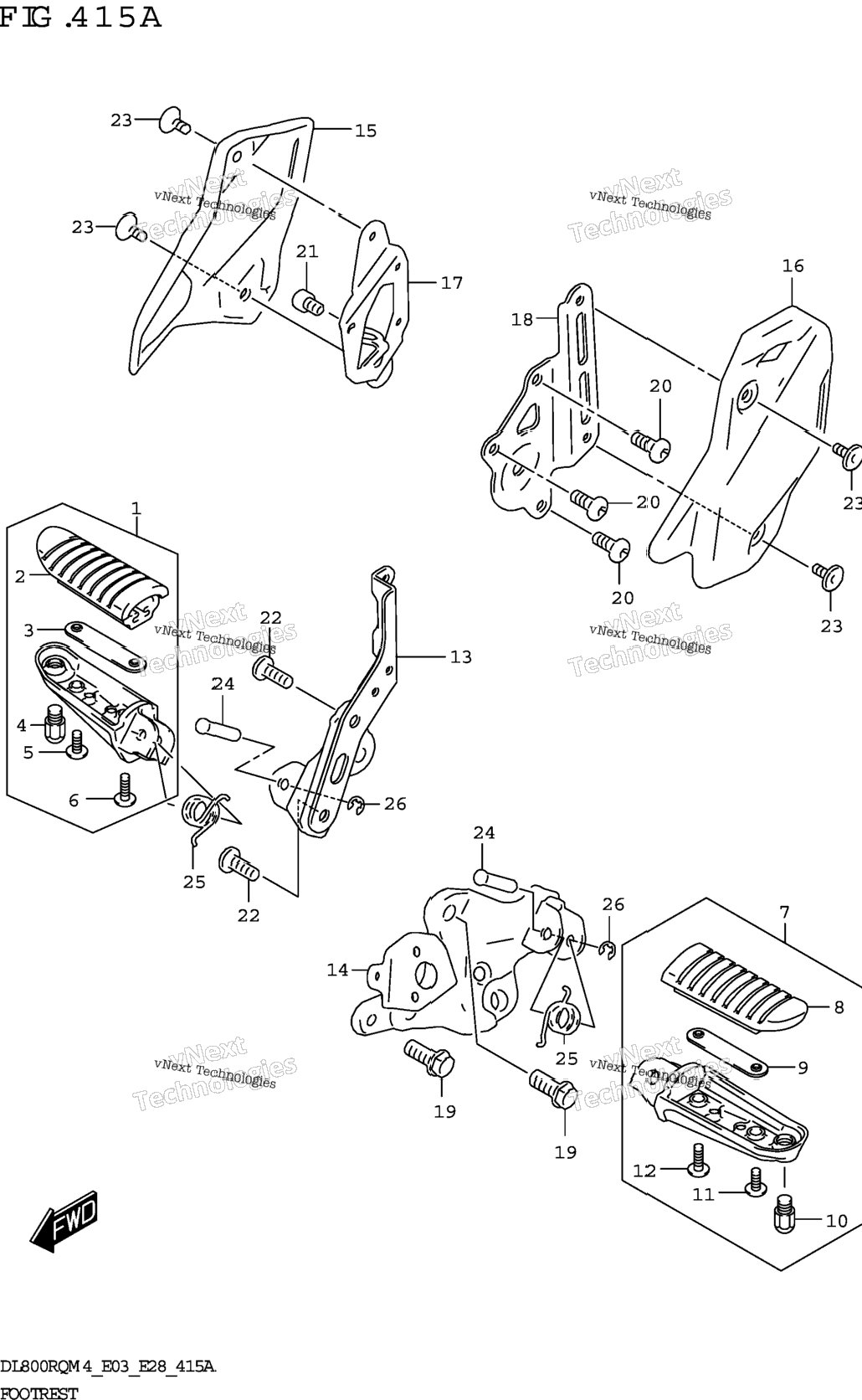

| 1 | 43501-25LC0 | FOOTREST ASSY,FRONT,R | 1 шт. | — | |
|
| 7 | 43502-25LC0 | FOOTREST ASSY,FRONT,L | 1 шт. | — | |
|
| 8 | 43551-06G00 | .RUBBER,FOOTREST | 1 шт. | — | |
|
| 8 | 43551-06G00 | .RUBBER,FOOTREST | 1 шт. | — | |
|
| 9 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 9 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 10 | 43576-07D01 | .BOLT, BANK SENSOR | 1 шт. | — | |
|
| 10 | 43576-07D01 | .BOLT, BANK SENSOR | 1 шт. | — | |
|
| 11 | 02142-0516A | .SCREW | 1 шт. | — | |
|
| 11 | 02142-0516A | .SCREW | 1 шт. | — | |
|
| 12 | 02142-0520A | SCREW | 1 шт. | — | |
|
| 12 | 02142-0520A | SCREW | 1 шт. | — | |
|
| 13 | 43510-25LC0 | BRACKET,FR FOOTREST,R | 1 шт. | — | |
|
| 14 | 43520-25LC0 | BRACKET,FR FOOTREST,L | 1 шт. | — | |
|
| 15 | 43571-25LB0 | GUARD,FR FOOTREST,R | 1 шт. | — | |
|
| 16 | 43572-25LB0 | GUARD,FR FOOTREST,L | 1 шт. | — | |
|
| 17 | 43580-25LB0 | BRACKET,GUARD FOOTREST,R | 1 шт. | — | |
|
| 18 | 43590-25LB0 | BRACKET,GUARD FOOTREST,L | 1 шт. | — | |
|
| 19 | 09103-10415 | BOLT (10X25) | 2 шт. | — | |
|
| 20 | 09106-08167 | BOLT (8X20) | 3 шт. | — | |
|
| 21 | 09106-08171 | BOLT (8X12) | 0 шт. | — | |
|
| 22 | 09106-08206 | BOLT | 2 шт. | — | |
|
| 23 | 09139-06221 | SCREW (6X16) | 4 шт. | — | |
|
| 24 | 09208-08010 | PIN (8X33.2) | 2 шт. | — | |
|
| 25 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 26 | 08332-1106B | E RING | 2 шт. | — | |
|
