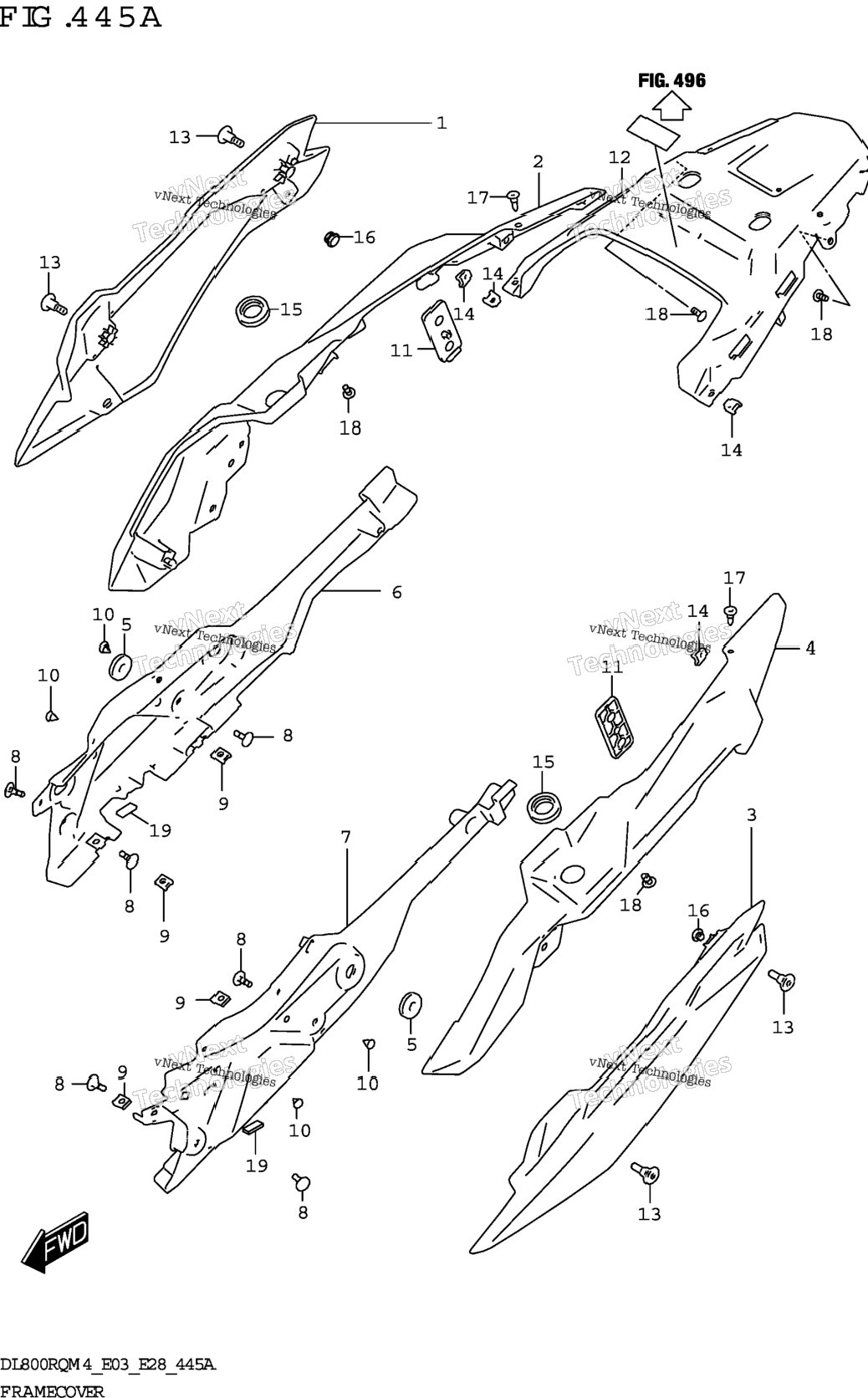

| 1 | 47410-25L10-019 | COVER,FRAME SIDE,R (BLACK) | 1 шт. | — | |
|
| 2 | 47411-25LA0-YVB | COVER,FRAME REAR,R (BLACK) | 1 шт. | — | |
|
| 3 | 47510-25L10-019 | COVER,FRAME SIDE,L (BLACK) | 1 шт. | — | |
|
| 4 | 47511-25LA0-YVB | COVER,FRAME REAR,L (BLACK) | 1 шт. | — | |
|
| 5 | 09320-08018 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 6 | 47311-25LA0 | COVER,FRAME INNER,R | 1 шт. | — | |
|
| 7 | 47321-25LA0 | COVER,FRAME INNER,L | 1 шт. | — | |
|
| 8 | 94479-35F00 | CLIP | 6 шт. | — | |
|
| 9 | 09148-05038 | NUT (M5) | 4 шт. | — | |
|
| 10 | 09250-06017 | PLUG (OD:10) | 4 шт. | — | |
|
| 11 | 47510-28K00 | SPACER,FRAME COVER | 2 шт. | — | |
|
| 12 | 47711-25LA0-019 | COVER,FRAME REAR CTR (BLACK) | 1 шт. | — | |
|
| 13 | 47913-06L00 | SCREW | 4 шт. | — | |
|
| 14 | 09148-05045 | NUT (M5) | 4 шт. | — | |
|
| 15 | 09320-20011 | CUSHION (20X32X9) | 2 шт. | — | |
|
| 16 | 09321-05023 | CUSHION | 2 шт. | — | |
|
| 17 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 18 | 03541-0512A | SCREW | 4 шт. | — | |
|
| 19 | 94413-08F00 | CUSHION,CTR PANEL UPR | 2 шт. | — | |
|
