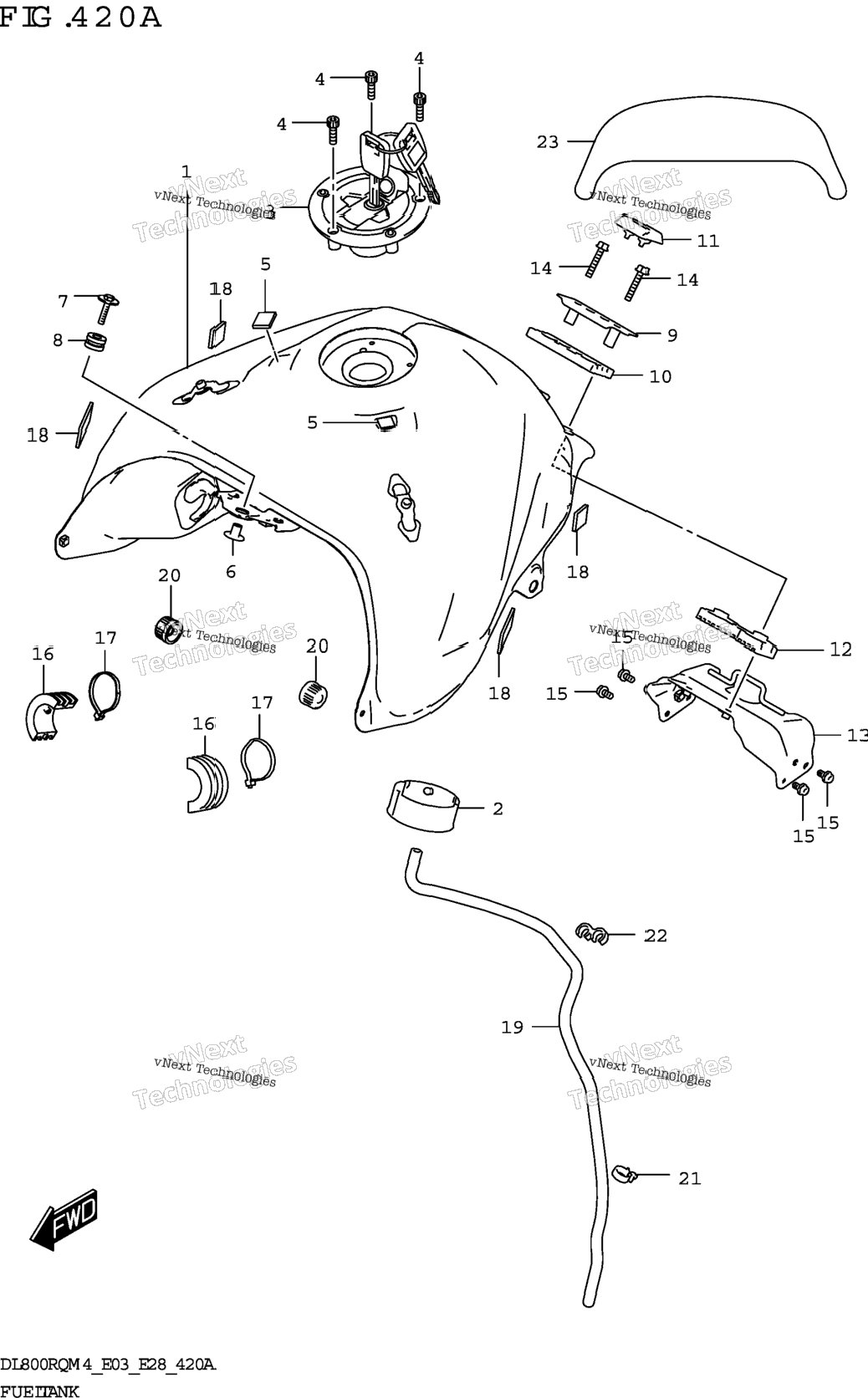

| 1-1 | 44100-25LA0-YKY | TANK ASSY,FUEL (BLUE) BODY COLOR:YKY | 1 шт. | — | |
|
| 1-2 | 44100-25LA0-YVB | TANK ASSY,FUEL (BLACK) BODY COLOR:YVB | 1 шт. | — | |
|
| 1-3 | 44100-25LA0-QVP | TANK ASSY,FUEL (GREEN) BODY COLOR:QVP | 1 шт. | — | |
|
| 2 | 44121-07L00 | VESSEL,FUEL TANK INNER | 1 шт. | — | |
|
| 3 | 44200-17840 | CAP SET,FUEL TANK FILLER | 1 шт. | — | |
|
| 4 | 44244-11J00 | BOLT,FUEL TANK FILLER CAP | 3 шт. | — | |
|
| 5 | 44572-44G00 | FASTENER (20X15X2.6) | 2 шт. | — | |
|
| 6 | 44512-04K00 | SPACER,FUEL TANK FRONT | 1 шт. | — | |
|
| 7 | 09116-06172 | BOLT (6X30) | 1 шт. | — | |
|
| 8 | 09320-10050 | CUSHION (10X22X13) | 1 шт. | — | |
|
| 9 | 44530-25LA0 | BRACKET,FUEL TANK REAR UP | 1 шт. | — | |
|
| 10 | 44542-25LA0 | CUSHION,FUEL TANK REAR UPPER | 1 шт. | — | |
|
| 11 | 44543-25LA0 | CUSHION,FUEL TANK REAR BRKT | 1 шт. | — | |
|
| 12 | 44545-25LA0 | CUSHION,FUEL TANK REAR LOWER | 1 шт. | — | |
|
| 13 | 44550-25LA0 | BRACKET,FUEL TANK REAR | 1 шт. | — | |
|
| 14 | 01550-0635A | BOLT | 2 шт. | — | |
|
| 15 | 07120-0612A | BOLT | 4 шт. | — | |
|
| 16 | 44541-25L00 | CUSHION,FUEL TANK SIDE | 2 шт. | — | |
|
| 17 | 09407-20405 | CLAMP (L:202) | 2 шт. | — | |
|
| 18 | 44572-13G00 | .FASTENER (33X25X2.6) | 4 шт. | — | |
|
| 19 | 44423-25LB0 | HOSE,FUEL TANK WATER DRAIN | 1 шт. | — | |
|
| 20 | 44542-25L00 | CUSHION,FUEL TANK FRONT | 2 шт. | — | |
|
| 21 | 09403-16412 | CLAMP | 1 шт. | — | |
|
| 22 | 09408-00043 | CLAMP (ID:11.8X2) | 0 шт. | — | |
|
| 23 | 44285-25LA0 | PROTECTOR,FUEL TANK | 1 шт. | — | |
|
