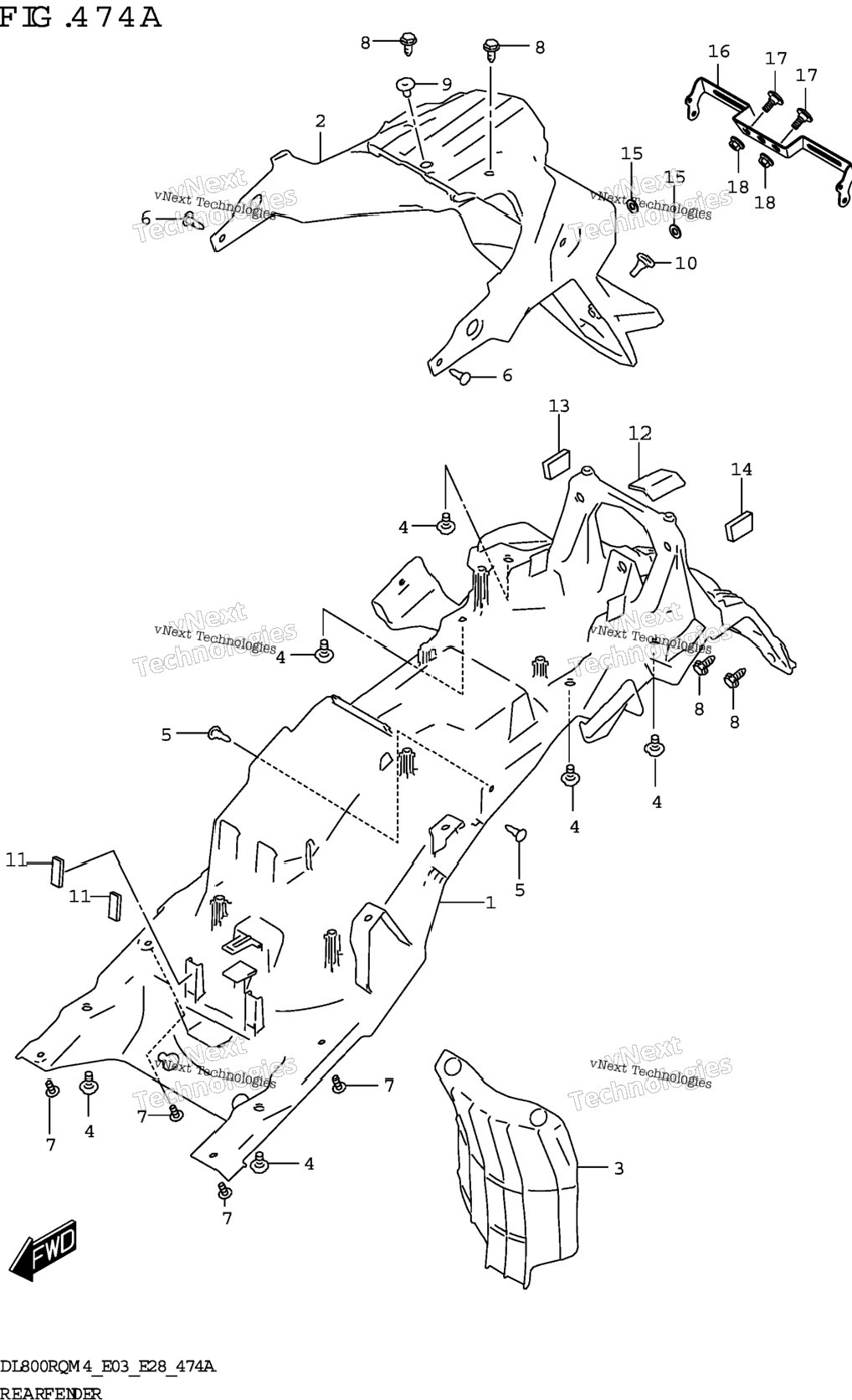

| 1 | 63111-25LA0 | FENDER,REAR FRONT | 1 шт. | — | |
|
| 2 | 63112-25LA0 | FENDER,REAR REAR | 1 шт. | — | |
|
| 3 | 63311-25LA0 | EXTENSION,REAR FENDER | 1 шт. | — | |
|
| 4 | 09111-06106 | BOLT (6X12) | 6 шт. | — | |
|
| 5 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 6 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 7 | 03541-0512A | SCREW | 4 шт. | — | |
|
| 8 | 63118-25LA0 | SCREW,REAR FENDER REAR | 4 шт. | — | |
|
| 9 | 09139-06225 | SCREW (6X12) | 1 шт. | — | |
|
| 10 | 09321-06026 | CUSHION | 1 шт. | — | |
|
| 11 | 94429-21E00 | .CUSHION,PIVOT COVER NO.2 (10 | 2 шт. | — | |
|
| 12 | 44555-33H00 | CUSHION,TANK COVER LWR NO.1 | 1 шт. | — | |
|
| 13 | 63119-25LA0 | CUSHION,LAMP SIDE,R | 1 шт. | — | |
|
| 14 | 63219-25LA0 | CUSHION,LAMP SIDE,L | 1 шт. | — | |
|
| 15 | 08322-0106B | WASHER | 2 шт. | — | |
|
| 16 | 47461-10L00 | BRACKET,REAR SIDE RR | 1 шт. | — | |
|
| 17 | 09139-06137 | SCREW (6X16) | 2 шт. | — | |
|
| 18 | 09159-06096 | NUT | 2 шт. | — | |
|
