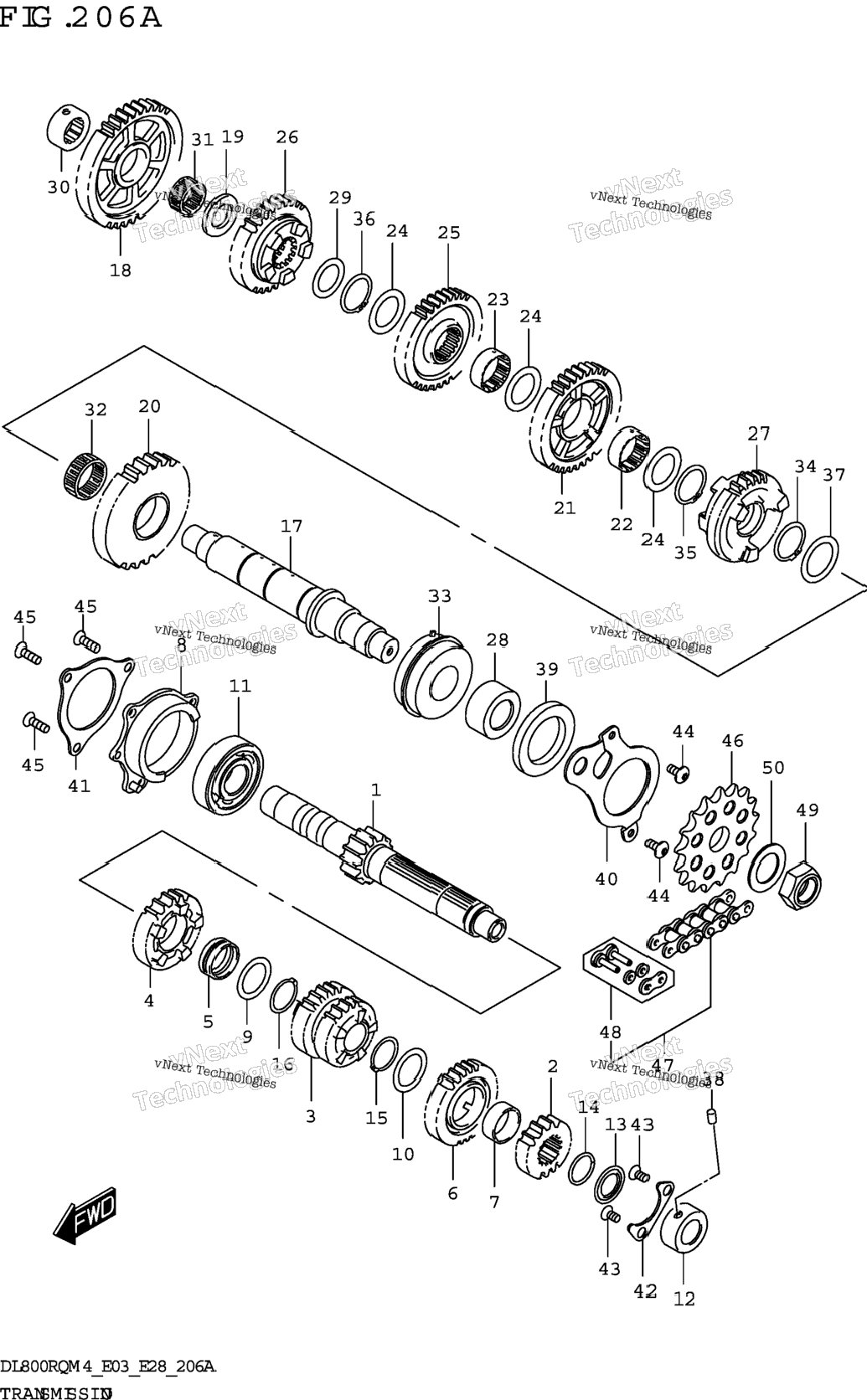

| 1 | 24120-25L00 | SHAFT,CNTR (NT:14) | 1 шт. | — | |
|
| 2 | 24221-25L00 | GEAR,2ND DRIVE (NT:15) | 1 шт. | — | |
|
| 3 | 24231-25L00 | GEAR,3RD & 4TH DRIVE (NT:20/2 ) | 1 шт. | — | |
|
| 4 | 24251-25L00 | GEAR,5TH DRIVE (NT:26) | 1 шт. | — | |
|
| 5 | 24252-35F00 | BUSH,5TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24261-25L00 | GEAR,6TH DRIVE (NT:28) | 1 шт. | — | |
|
| 7 | 24262-35F10 | BUSH,6TH DRIVE GEAR | 1 шт. | — | |
|
| 8 | 24770-18H10 | HOUSING,CNTR SHAFT BRG,R | 0 шт. | — | |
|
| 9 | 09160-27008 | WASHER (27X36X1.0) | 1 шт. | — | |
|
| 10 | 09167-27001 | WASHER,LOCK (27X36X1) | 1 шт. | — | |
|
| 11 | 09262-25073 | BEARING (25X62X17) | 1 шт. | — | |
|
| 12 | 09263-20123 | BEARING | 1 шт. | — | |
|
| 13 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 14 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 15 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 16 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 17 | 24131-25L00 | SHAFT,DRIVE | 1 шт. | — | |
|
| 18 | 24311-25L00 | GEAR,1ST DRIVEN (NT:43) | 1 шт. | — | |
|
| 19 | 24315-25L00 | SPACER,1ST DRIVEN GEAR,R | 1 шт. | — | |
|
| 20 | 24321-25L00 | GEAR,2ND DRIVEN (NT:33) | 1 шт. | — | |
|
| 21 | 24331-25L00 | GEAR,3RD DRIVEN (NT:34) | 1 шт. | — | |
|
| 22 | 24332-24F20 | BUSH,3RD DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 24332-24F20 | BUSH,3RD DRIVEN GEAR | 1 шт. | — | |
|
| 24 | 24333-47H00 | WASHER,3RD & 4TH DRIVEN GEAR | 3 шт. | — | |
|
| 25 | 24341-25L00 | GEAR,4TH DRIVEN (NT:34) | 1 шт. | — | |
|
| 26 | 24351-25L00 | GEAR,5TH DRIVEN (NT:32) | 1 шт. | — | |
|
| 27 | 24361-25L00 | GEAR,6TH DRIVEN (NT:31) | 1 шт. | — | |
|
| 28 | 27531-25L00 | SPACER,ENGINE SPROCKET | 1 шт. | — | |
|
| 29 | 09181-24005 | SHIM (24X34X1) | 1 шт. | — | |
|
| 30 | 09263-20087 | BEARING (20X34X13.5) | 1 шт. | — | |
|
| 31 | 09263-24030 | BEARING (24X28X13) | 1 шт. | — | |
|
| 32 | 09263-30018 | BEARING (30X35X12.8) | 1 шт. | — | |
|
| 33 | 09267-30011 | BEARING (30X62X23.8) | 1 шт. | — | |
|
| 34 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 35 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 36 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 37 | 09181-30167 | SHIM (30X40X1) | 1 шт. | — | |
|
| 38 | 09261-06003 | PIN (6X10) | 1 шт. | — | |
|
| 39 | 09283-42018 | SEAL,OIL (42X62X7) | 1 шт. | — | |
|
| 40 | 24741-25L00 | RETAINER,CL PUSH ROD OIL SEAL | 1 шт. | — | |
|
| 41 | 24751-18H00 | RETAINER,CNTR SHAFT BEARING,R | 0 шт. | — | |
|
| 42 | 24751-25L00 | RETAINER,COUNTER SHAFT BRG,L | 1 шт. | — | |
|
| 43 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 44 | 09139-06153 | SCREW (6X13) | 2 шт. | — | |
|
| 45 | 09139-06159 | SCREW (6X20) | 3 шт. | — | |
|
| 46 | 27511-20A21 | SPROCKET,ENGINE (NT:17) | 1 шт. | — | |
|
| 47 | 27600-17K00-126 | CHAIN ASSY,DRIVE | 1 шт. | — | |
|
| 48 | 27620-17K00 | .JOINT SET (DID525HV3) | 1 шт. | — | |
|
| 49 | 09159-20004 | NUT | 1 шт. | — | |
|
| 50 | 09181-25268 | SHIM (25X40X1.5) | 1 шт. | — | |
|
