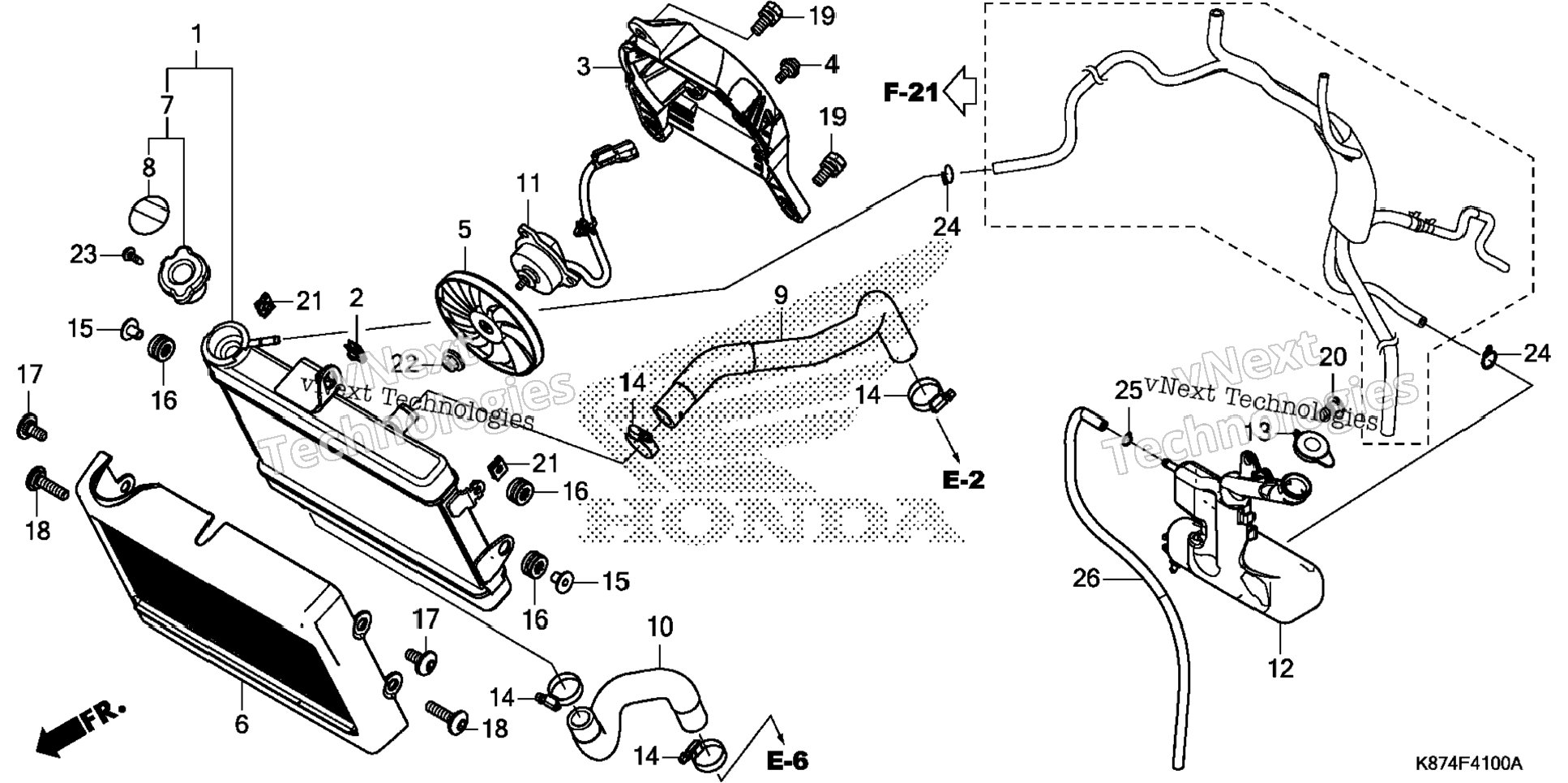

| 1 | 19010-K87-A31 | RADIATOR (TOYO) | 1 шт. | — | |
|
| 2 | 19014-KEA-003 | NUT, SETTING (6MM) | 1 шт. | — | |
|
| 3 | 19015-K87-A01 | SHROUD | 1 шт. | — | |
|
| 4 | 19016-KEA-003 | SCREW, PAN (4X8.5) | 3 шт. | — | |
|
| 5 | 19020-KVZ-631 | FAN, COOLING | 1 шт. | — | |
|
| 6 | 19032-K87-A30 | GRILLE, RADIATOR | 1 шт. | — | — |
|
| 7 | 19032-K87-A31 | GRILLE, RADIATOR | 1 шт. | — | |
|
| 8 | 19037-KZZ-D11 | CAP, RADIATOR (TOYO) | 1 шт. | — | |
|
| 9 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 10 | 19062-K87-A00 | HOSE, RADIATOR (UPPER) | 1 шт. | — | |
|
| 11 | 19067-K87-A00 | HOSE, RADIATOR (LOWER) | 1 шт. | — | |
|
| 12 | 19080-K87-A01 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 13 | 19101-K87-A00 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 14 | 19109-KBP-900 | CAP, RESERVE TANK | 1 шт. | — | |
|
| 15 | 19517-ML7-691 | CLAMP, HOSE (22-29MM) | 4 шт. | — | |
|
| 16 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 17 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 шт. | — | |
|
| 18 | 90111-K87-A00 | SCREW, SPECIAL (6X14) | 2 шт. | — | |
|
| 19 | 90112-K87-A00 | SCREW, SPECIAL (6X25) | 2 шт. | — | |
|
| 20 | 90120-KCR-003 | BOLT-WASHER (6X16) | 3 шт. | — | |
|
| 21 | 90134-KPP-T00 | SCREW, PAN (5X14) | 1 шт. | — | |
|
| 22 | 90303-MGZ-J40 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 23 | 90315-MFL-003 | NUT, FLANGE (3MM) | 1 шт. | — | |
|
| 24 | 93901-22020 | SCREW, TAPPING (3X6) | 1 шт. | — | |
|
| 25 | 95002-02100 | CLIP, TUBE (B10) | 2 шт. | — | |
|
| 26 | 95002-50000 | CLIP, TUBE (C9) | 1 шт. | — | |
|
| 27 | 95005-50003-30M | BULK HOSE, VACUUM (5X3000) (5X180) | 1 шт. | — | |
|
