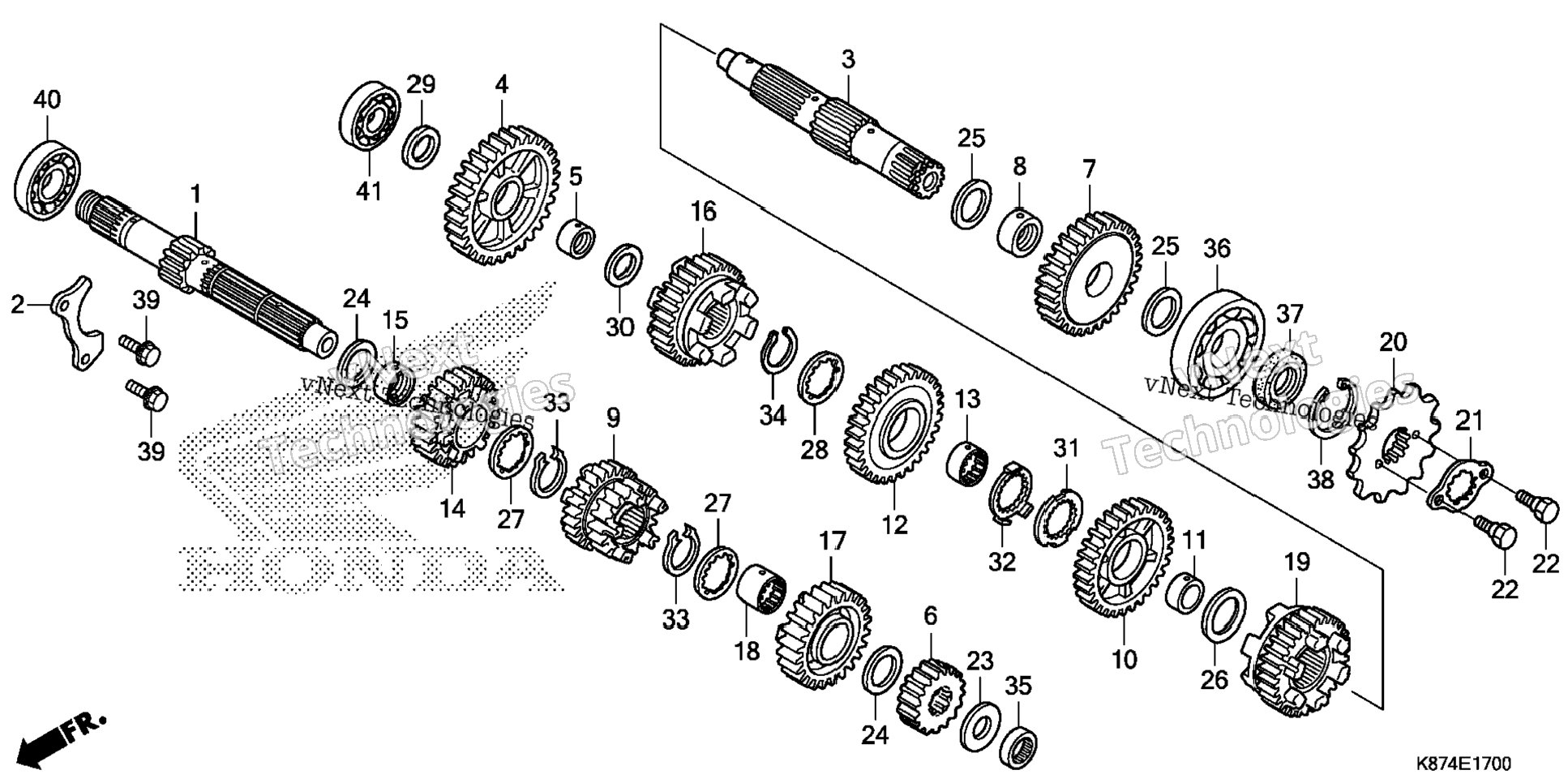

| 1 | 23211-K33-D00 | MAINSHAFT (12T) (A)(WHITE) | 1 шт. | — | |
|
| 2 | 23212-K33-D00 | MAINSHAFT (12T) (B)(BLUE) | 1 шт. | — | |
|
| 3 | 23212-KYJ-900 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 4 | 23221-KZZ-901 | COUNTERSHAFT | 1 шт. | — | |
|
| 5 | 23411-K33-D00 | GEAR, COUNTERSHAFT FIRST (41T) | 1 шт. | — | |
|
| 6 | 23412-KYJ-900 | COLLAR (20X23X10.5) | 1 шт. | — | |
|
| 7 | 23421-K33-D00 | GEAR, MAINSHAFT SECOND (16T) | 1 шт. | — | |
|
| 8 | 23431-K33-D00 | GEAR, COUNTERSHAFT SECOND (36T) | 1 шт. | — | |
|
| 9 | 23432-KYJ-900 | COLLAR (22X25X11) | 1 шт. | — | |
|
| 10 | 23441-K33-D00 | GEAR, MAINSHAFT THIRD & FOURTH (20T/20T) | 1 шт. | — | |
|
| 11 | 23451-K33-D00 | GEAR, COUNTERSHAFT THIRD (33T) | 1 шт. | — | |
|
| 12 | 23452-KYJ-900 | COLLAR (25X28X10) | 1 шт. | — | |
|
| 13 | 23471-K33-D00 | GEAR, COUNTERSHAFT FOURTH (27T) | 1 шт. | — | |
|
| 14 | 23472-KYJ-900 | COLLAR, SPLINE (25X10) | 1 шт. | — | |
|
| 15 | 23481-K33-D00 | GEAR, MAINSHAFT FIFTH (24T) | 1 шт. | — | |
|
| 16 | 23482-KYJ-900 | BUSH (20X23X17.4) | 1 шт. | — | |
|
| 17 | 23491-K33-D00 | GEAR, COUNTERSHAFT FIFTH (28T) | 1 шт. | — | |
|
| 18 | 23501-K33-D00 | GEAR, MAINSHAFT SIXTH (26T) | 1 шт. | — | |
|
| 19 | 23502-KYJ-900 | COLLAR, SPLINE (23MM) | 1 шт. | — | |
|
| 20 | 23511-K33-D00 | GEAR, COUNTERSHAFT SIXTH (27T) | 1 шт. | — | |
|
| 21 | 23801-KYJ-901 | SPROCKET, DRIVE (14T) | 1 шт. | — | |
|
| 22 | 23802-KYJ-900 | PLATE, FIXING | 1 шт. | — | |
|
| 23 | 90084-041-000 | BOLT, DRIVE SPROCKET FIXING | 2 шт. | — | |
|
| 24 | 90405-KYJ-900 | WASHER (17X26X1.0) | 1 шт. | — | |
|
| 25 | 90406-KYJ-900 | WASHER (20X27X1.0) | 2 шт. | — | |
|
| 26 | 90407-KYJ-900 | WASHER (22X29X1.0) | 2 шт. | — | |
|
| 27 | 90408-KYJ-900 | WASHER (25X32X1.0) | 1 шт. | — | |
|
| 28 | 90451-KYJ-900 | WASHER, SPLINE (20X26X1.6) | 2 шт. | — | |
|
| 29 | 90452-KYJ-900 | WASHER, SPLINE (25X31X1.0) | 1 шт. | — | |
|
| 30 | 90453-KYJ-900 | WASHER (17X28X1.0) | 1 шт. | — | |
|
| 31 | 90454-KPS-900 | WASHER B, THRUST (20MM) | 1 шт. | — | |
|
| 32 | 90454-KYJ-900 | WASHER, SPLINE (25X42X1.6) | 1 шт. | — | |
|
| 33 | 90455-KYJ-900 | WASHER, LOCK (25MM) | 1 шт. | — | |
|
| 34 | 90601-KYJ-900 | CIRCLIP (OUTER) (20MM) | 2 шт. | — | |
|
| 35 | 90602-KYJ-900 | CIRCLIP (OUTER) (25MM) | 1 шт. | — | |
|
| 36 | 91003-KYJ-901 | BEARING, NEEDLE (17X27X13) | 1 шт. | — | |
|
| 37 | 91005-KYJ-901 | BEARING, RADIAL BALL (63/22) | 1 шт. | — | |
|
| 38 | 91207-KYJ-901 | OIL SEAL (22X36X5) | 1 шт. | — | |
|
| 39 | 94520-37000 | CIRCLIP (INNER) (37MM) | 1 шт. | — | |
|
| 40 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 41 | 96100-63040-00 | BEARING, RADIAL BALL (6304) | 1 шт. | — | |
|
| 42 | 96140-62030-00 | BEARING, RADIAL BALL (6203U) | 1 шт. | — | |
|
