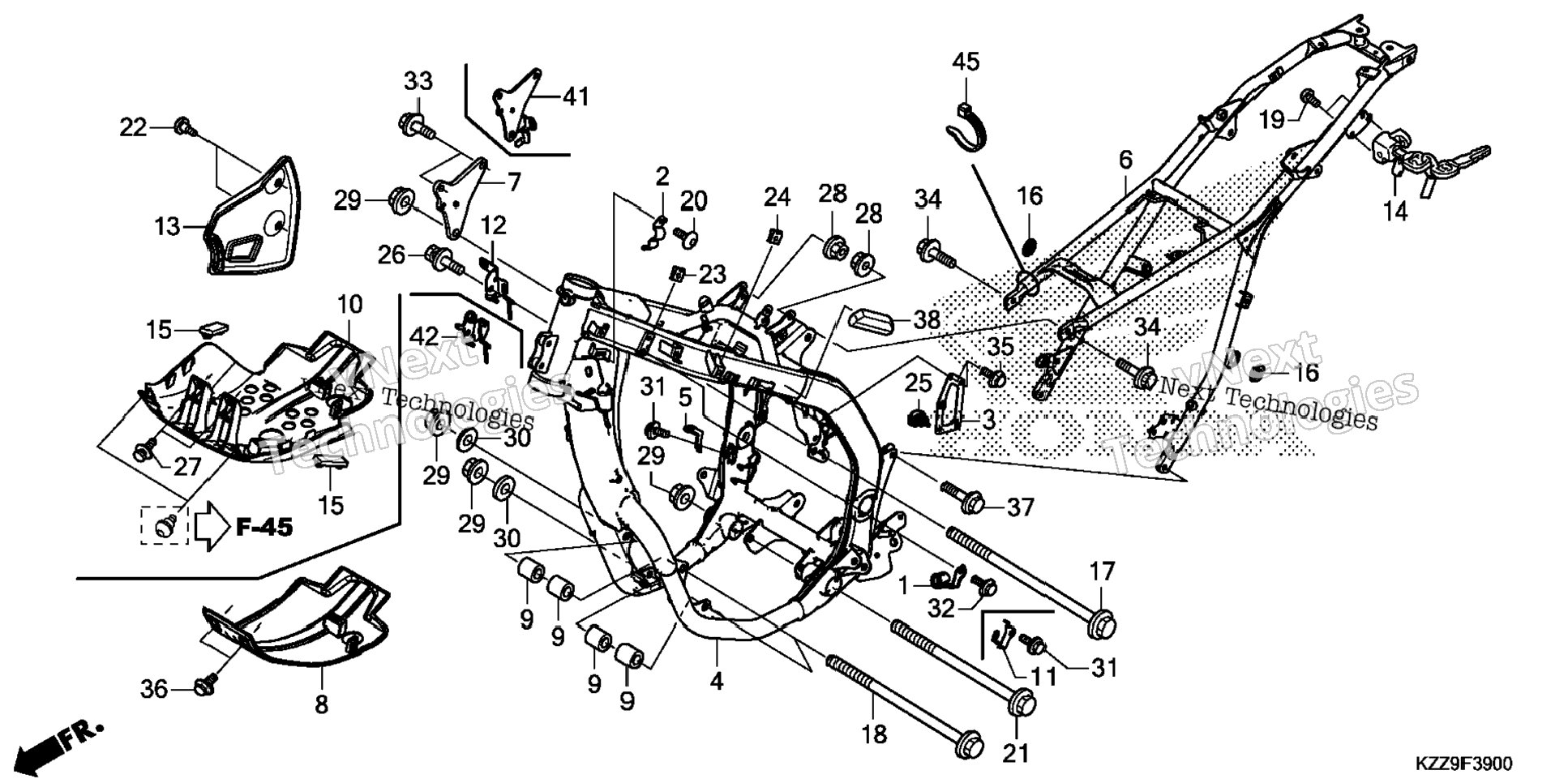

| 1 | 32111-KZZ-D20 | CLAMP, HARNESS | 1 шт. | — | |
|
| 2 | 50100-KZZ-D20ZB | FRAME *NH146M* (ACCURATE SILVER METALLIC) | 1 шт. | — | |
|
| 3 | 50175-KZZ-900 | STAY, STOP SWITCH | 1 шт. | — | |
|
| 4 | 50200-KZZ-D20ZB | FRAME, RR. *NH146M* (ACCURATE SILVER METALLIC) | 1 шт. | — | |
|
| 5 | 50351-KZZ-D20 | PLATE, R. ENGINE HANGER | 1 шт. | — | |
|
| 6 | 50355-KZZ-900 | PLATE, SKID | 1 шт. | — | |
|
| 7 | 50361-KZZ-900 | COLLAR, ENGINE HANGER | 4 шт. | — | |
|
| 8 | 50402-KZZ-D20 | GUIDE, CABLE | 1 шт. | — | |
|
| 9 | 50615-KZZ-900 | GUARD, HEEL | 1 шт. | — | |
|
| 10 | 50710-KCZ-J71 | HOLDER ASSY., HELMET | 1 шт. | — | |
|
| 11 | 90102-KZZ-900 | BOLT, FLANGE (10X150) | 1 шт. | — | |
|
| 12 | 90104-HP6-A00 | BOLT, FLANGE (10X140) | 2 шт. | — | |
|
| 13 | 90105-KGA-B00 | BOLT, ONE-WAY (6X10) | 2 шт. | — | |
|
| 14 | 90127-KR3-000 | BOLT, FLANGE (10X130) | 1 шт. | — | |
|
| 15 | 90133-KPP-T00 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 16 | 90303-KZZ-J00 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 17 | 90303-KZZ-J00 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 18 | 93401-08012-08 | BOLT-WASHER (8X12) | 1 шт. | — | |
|
| 19 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 20 | 94050-10000 | NUT, FLANGE (10MM) | 4 шт. | — | |
|
| 21 | 94101-10800 | WASHER, PLAIN (10.5X22X1.6) | 2 шт. | — | |
|
| 22 | 95701-06010-00 | BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 23 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 1 шт. | — | |
|
| 24 | 95701-08016-00 | BOLT, FLANGE (8X16) | 2 шт. | — | |
|
| 25 | 95701-08018-00 | BOLT, FLANGE (8X18) | 2 шт. | — | |
|
| 26 | 96300-06010-08 | BOLT, FLANGE (6X10) | 2 шт. | — | |
|
| 27 | 96300-08020-00 | BOLT, FLANGE (8X20) BOLT, FLANGE (8X12) | 2 шт. | — | |
|
| 28 | 52161-KZZ-920 | PAD, FRAME (Optional). | 1 шт. | — | |
|
