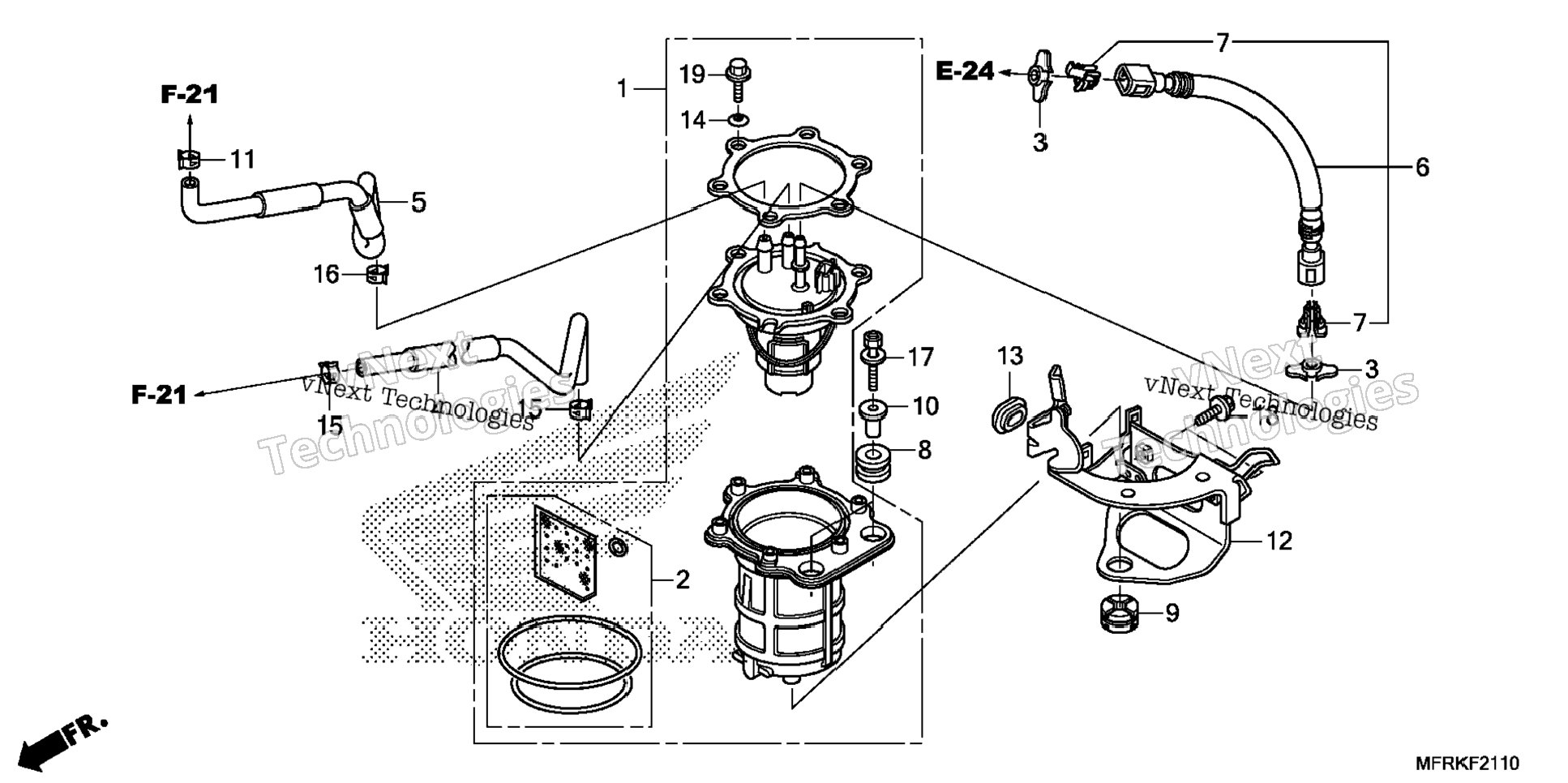

| 1 | 16700-HN8-601 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16706-HR0-F01 | FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) | 1 шт. | — | |
|
| 3 | 16719-HN8-A61 | RUBBER, FUEL JOINT | 2 шт. | — | |
|
| 4 | 16730-MFR-670 | TUBE, FUEL PUMP BREATHER | 1 шт. | — | |
|
| 5 | 16951-MFR-670 | TUBE, FUEL | 1 шт. | — | |
|
| 6 | 17526-MFR-671 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 7 | 17711-S0X-A31 | RETAINER (GREEN) (TOKAI) | 2 шт. | — | |
|
| 8 | 18334-KA3-830 | RUBBER, MUFFLER | 2 шт. | — | |
|
| 9 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 1 шт. | — | |
|
| 10 | 19052-MGH-640 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 11 | 90651-HN6-A51 | CLAMP, TUBE (12.0) | 1 шт. | — | |
|
| 12 | 50228-MFR-610 | STAY, FUEL PUMP | 1 шт. | — | |
|
| 13 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 1 шт. | — | |
|
| 14 | 90501-HN8-A60 | WASHER, CONICAL SPRING | 6 шт. | — | |
|
| 15 | 90651-HN6-A51 | CLAMP, TUBE (12.0) | 2 шт. | — | |
|
| 16 | 95002-41300-08 | CLAMP, TUBE (D13) | 1 шт. | — | |
|
| 17 | 93404-06030-00 | BOLT-WASHER (6X30) | 2 шт. | — | |
|
| 18 | 95701-08016-07 | BOLT, FLANGE (8X16) | 2 шт. | — | |
|
| 19 | 96001-06014-00 | BOLT, FLANGE (6X14) | 6 шт. | — | |
|
