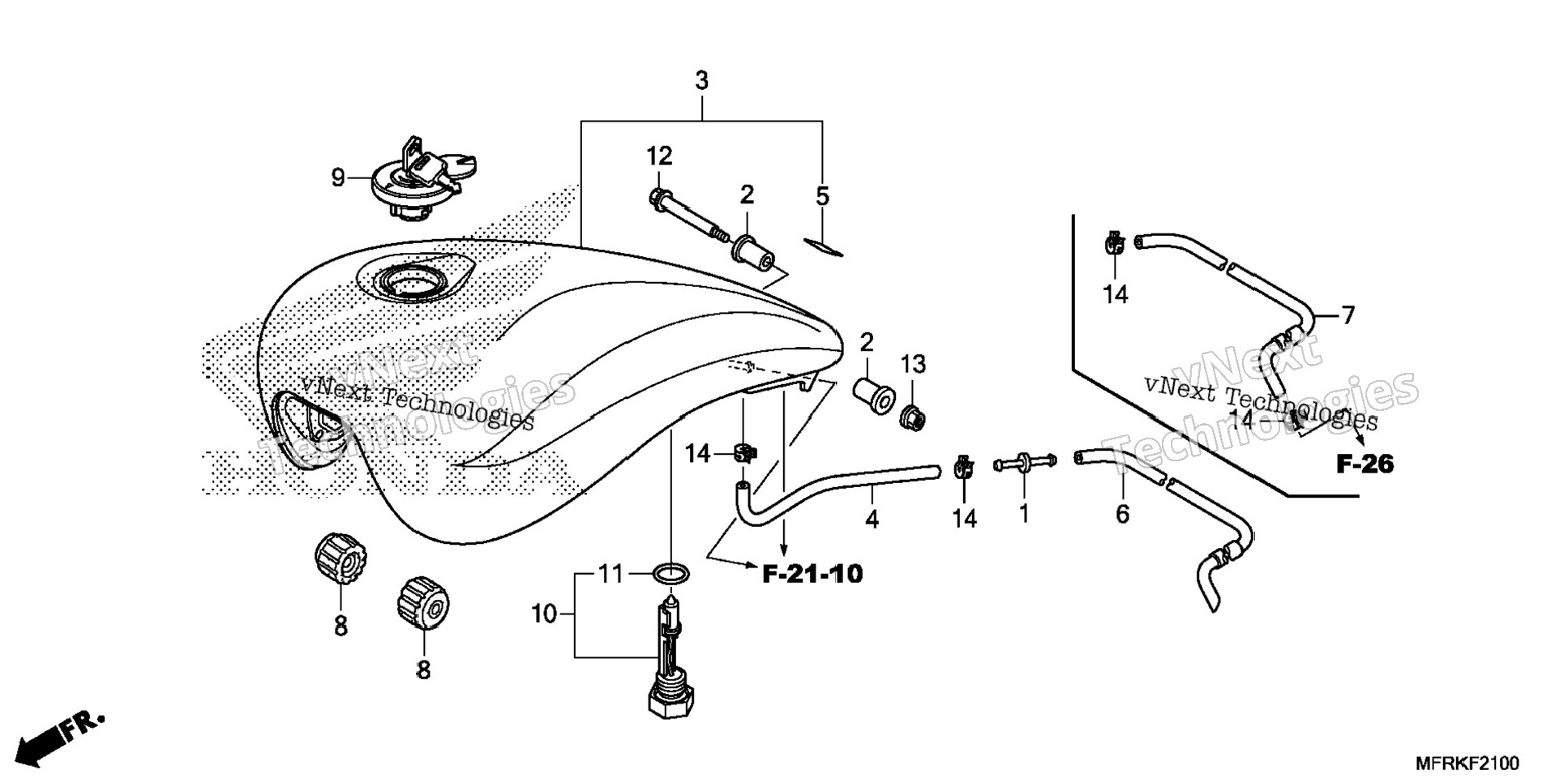

| 1 | 16958-GJ6-000 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 2 | 17506-MBR-000 | CUSHION, FUEL TANK PIVOT | 2 шт. | — | |
|
| 3 | 17520-MFR-670ZQ | TANK SET, FUEL *PB409P* (PEARL HAWKSEYE BLUE) | 1 шт. | — | |
|
| 4 | 17528-MCV-K00 | TUBE, FUEL TANK BREATHER | 1 шт. | — | |
|
| 5 | 17528-MR4-900 | TAPE, TANK GUARD | 1 шт. | — | |
|
| 6 | 17529-MFR-770 | TUBE, CANISTER JOINT | 1 шт. | — | |
|
| 7 | 17611-KE8-000 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
|
| 8 | 17611-286-000 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
|
| 9 | 17620-KR3-751 | CAP, FUEL FILLER Use up to Frame SN LK500032. | 1 шт. | — | |
|
| 10 | 17620-KR3-752 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 11 | 37810-MER-D01 | SENSOR ASSY., FUEL RESERVE | 1 шт. | — | |
|
| 12 | 37811-MB1-008 | GASKET, FUEL RESERVE SENSOR | 1 шт. | — | |
|
| 13 | 90135-MFR-670 | BOLT, TANK HINGE | 1 шт. | — | |
|
| 14 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 1 шт. | — | |
|
| 15 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 4 шт. | — | |
|
