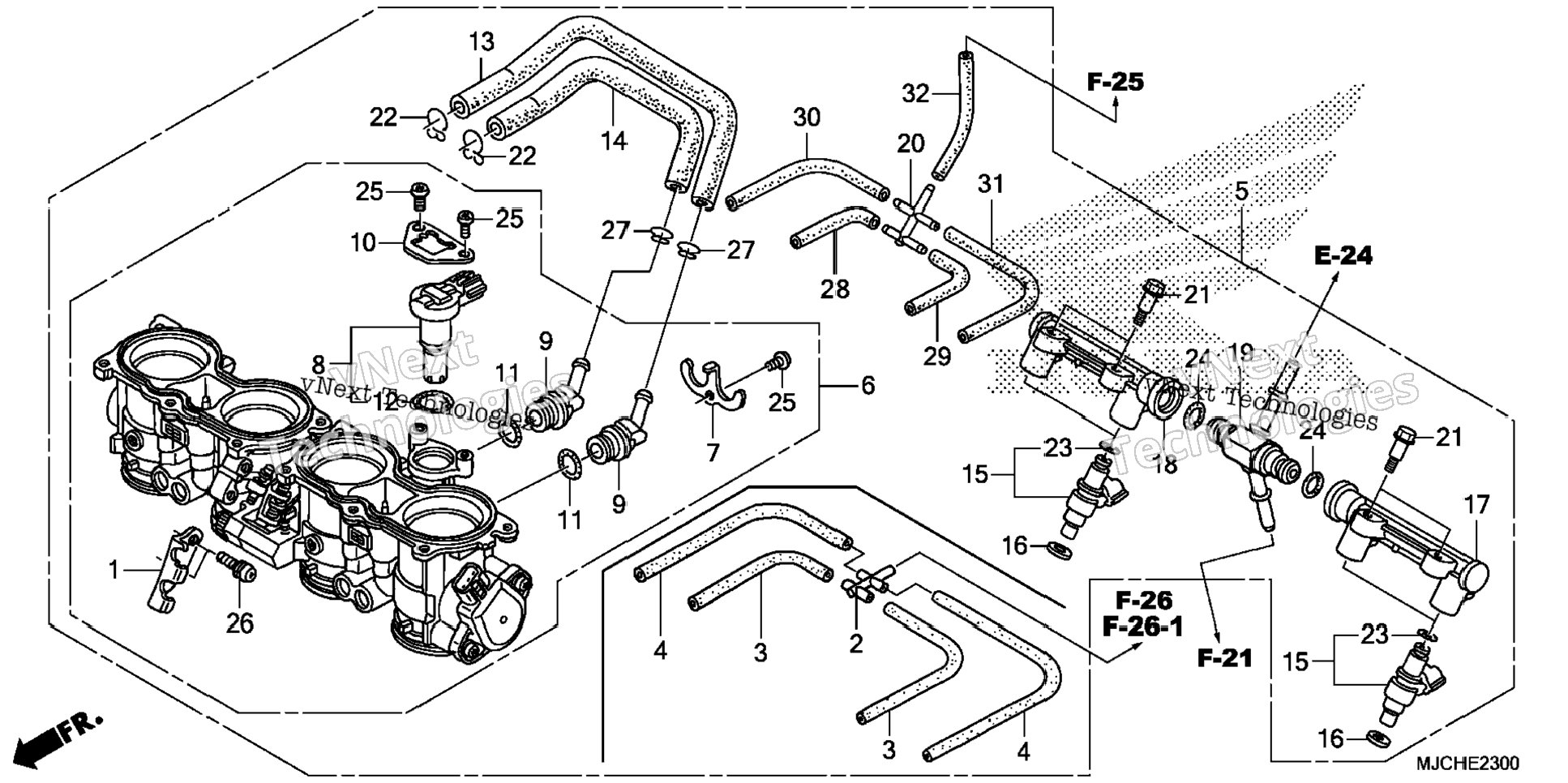

| 1 | 16169-MEE-013 | STAY, WIRE (FRAME NO.) | 1 шт. | — | |
|
| 2 | 16400-MJC-A01 | BODY ASSY., THROTTLE (GQ6KC A) | 1 шт. | — | |
|
| 3 | 16401-MJC-A01 | BODY ASSY., THROTTLE | 1 шт. | — | |
|
| 4 | 16431-MFJ-D01 | PLATE, JOINT | 1 шт. | — | |
|
| 5 | 16431-MGZ-D01 | MOTOR ASSY. | 1 шт. | — | |
|
| 6 | 16432-MFJ-D01 | JOINT, IDLE AIR CONTROL VALVE | 2 шт. | — | |
|
| 7 | 16433-MEW-921 | PLATE, IDLE AIR CONTROL VALVE | 1 шт. | — | |
|
| 8 | 16434-MFJ-D01 | O-RING | 2 шт. | — | |
|
| 9 | 16435-MFJ-D01 | O-RING (17.8X1.9) | 1 шт. | — | |
|
| 10 | 16440-MFJ-D01 | TUBE (A) | 1 шт. | — | |
|
| 11 | 16441-MFJ-D01 | TUBE (B) | 1 шт. | — | |
|
| 12 | 16450-MFJ-D01 | INJECTOR ASSY., FUEL | 4 шт. | — | |
|
| 13 | 16472-MCW-000 | SEAL RING, INJECTOR | 4 шт. | — | |
|
| 14 | 16610-MJC-D01 | PIPE, FUEL (A) | 1 шт. | — | |
|
| 15 | 16620-MJC-D01 | PIPE, FUEL (B) | 1 шт. | — | |
|
| 16 | 16650-MFJ-D01 | JOINT, FUEL | 1 шт. | — | |
|
| 17 | 17201-MCJ-003 | JOINT, FIVE-WAY | 1 шт. | — | |
|
| 18 | 90021-MGZ-D02 | BOLT, SHOULDER | 4 шт. | — | |
|
| 19 | 90661-MFL-003 | CLIP, TUBE (13.3) | 2 шт. | — | |
|
| 20 | 91301-P7A-004 | O-RING (7.8X1.9) | 4 шт. | — | |
|
| 21 | 91301-PLC-000 | O-RING (7.47X3.6) | 2 шт. | — | |
|
| 22 | 93500-04008-0H | SCREW, PAN (4X8) | 3 шт. | — | |
|
| 23 | 93500-04008-1H | SCREW, PAN (4X8) | 3 шт. | — | |
|
| 24 | 93892-05012-00 | SCREW-WASHER (5X12) | 2 шт. | — | |
|
| 25 | 93892-05012-10 | SCREW-WASHER (5X12) | 2 шт. | — | |
|
| 26 | 95002-02139 | CLIP, TUBE (B12.5) | 2 шт. | — | |
|
| 27 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 28 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 29 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 30 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 31 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
